Measuring technology

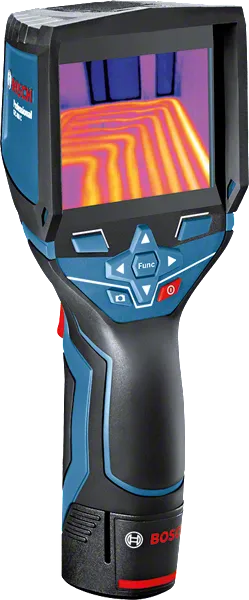

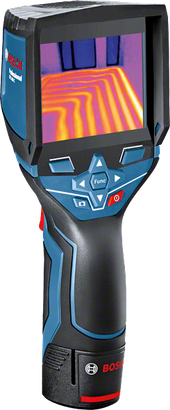

GTC 400 C Professional

Name: GTC 400 C
Brand: Bosch power tools
SKU: 0601083150

Thermo Camera

Immediate visualisation of temperature differences with smart documentation

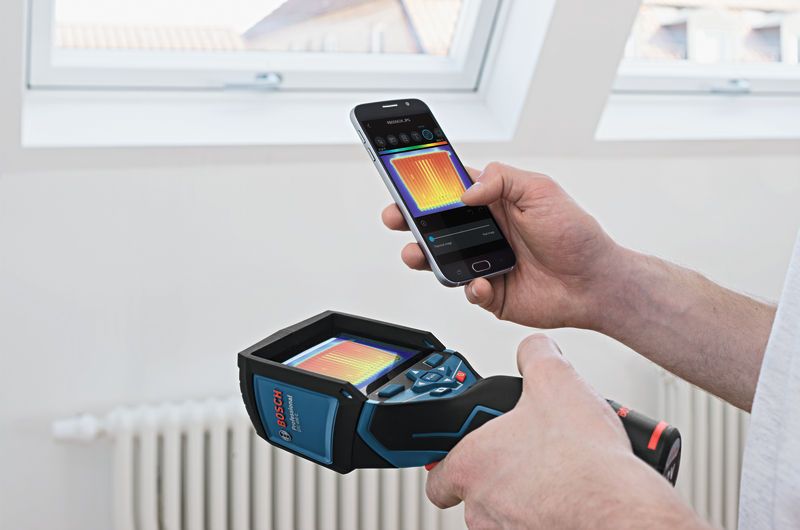

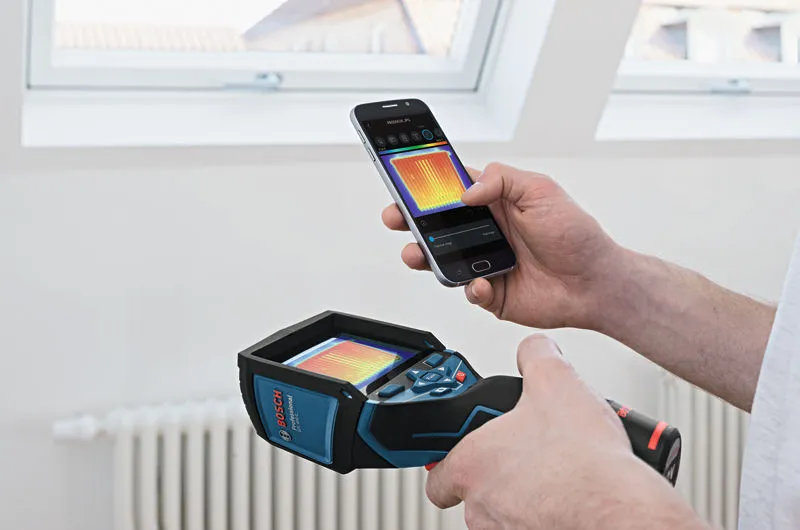

Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

Your Selection

with 4 x battery (AA), adapter

Show variant

Check availability on location

Buy now

Your Selected Variant

with 4 x battery (AA), adapter 0 601 083 150

Buy now

GTC 400 C Professional

Your Selection

with 4 x battery (AA), adapter

Order number: 0 601 083 150

Buy now

Included in this variant

AA1 alkaline battery adapter

Order number: 1 608 M00 C1B
Micro USB cable

Order number: 2 609 120 670
Protective Bag
Hand strap
4 x 1.5 V LR6 battery (AA)

Your selection

Our service promise for professionals.

Technical data

The most important data

Battery voltage

12.0 V

Measurement range*

-10 °C to +400 °C

Measuring accuracy of IR*

± 3.0 °Cᵇ

Resolution

0.1 °C

Thermal sensitivity (NETD)

<50 mK

Size of IR sensor

160 Pixel x 120 Pixel

Number of measuring points

19,200

Field of view (FOV)

53x43 °

Power supply and runtime

4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V

Frame buffer (number of images)

500

Memory type

Internal memory

File format of image

.jpg

Data transfer

MicroUSB, Wi-Fi

Dust and splash protection*

IP 53

Weight**

0.54 kg

Size of display

3,5"

Operating temperature

-10 – 45 °C

Storage temperature

-20 – 70 °C

Focus distance, minimum

0.3 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

GTC 400 C Professional: Further information

Product Highlights

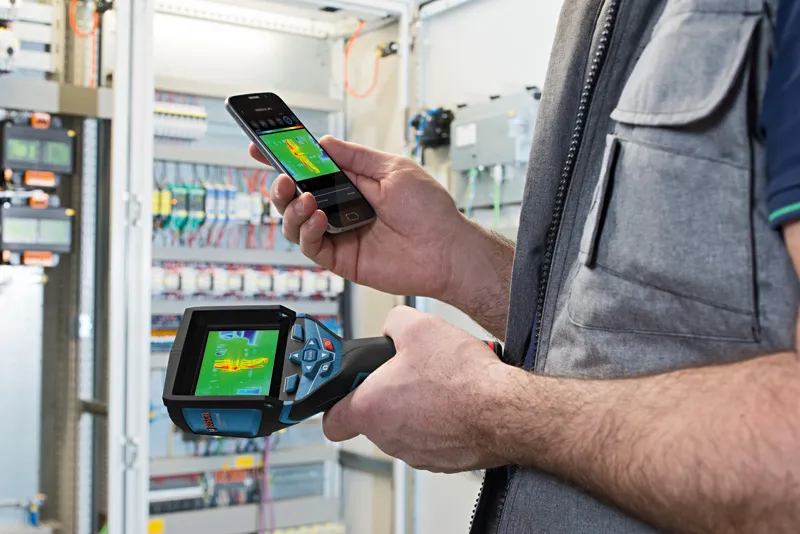

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

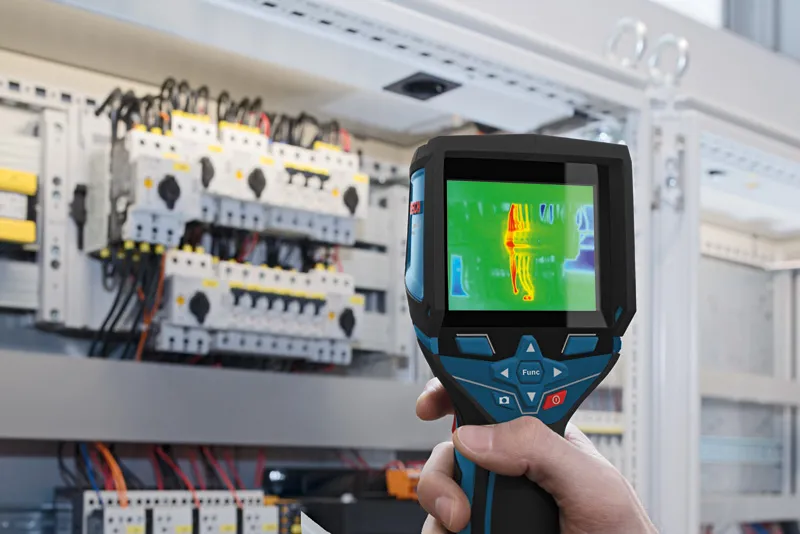

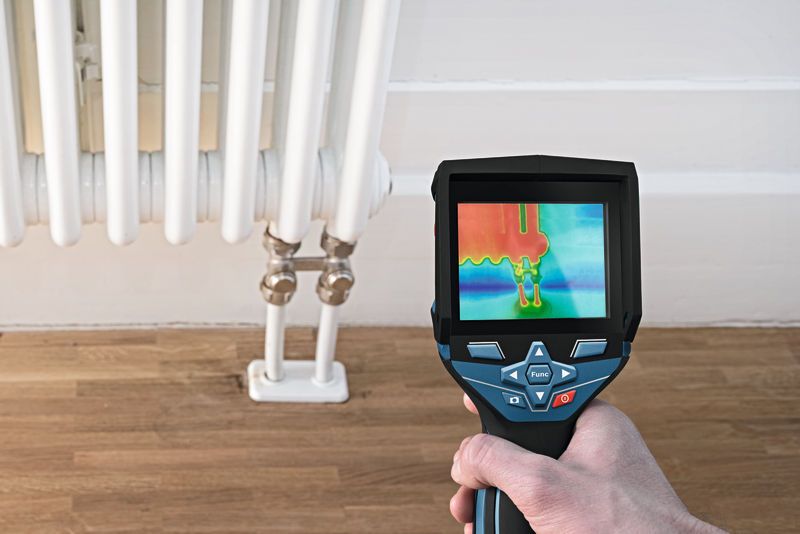

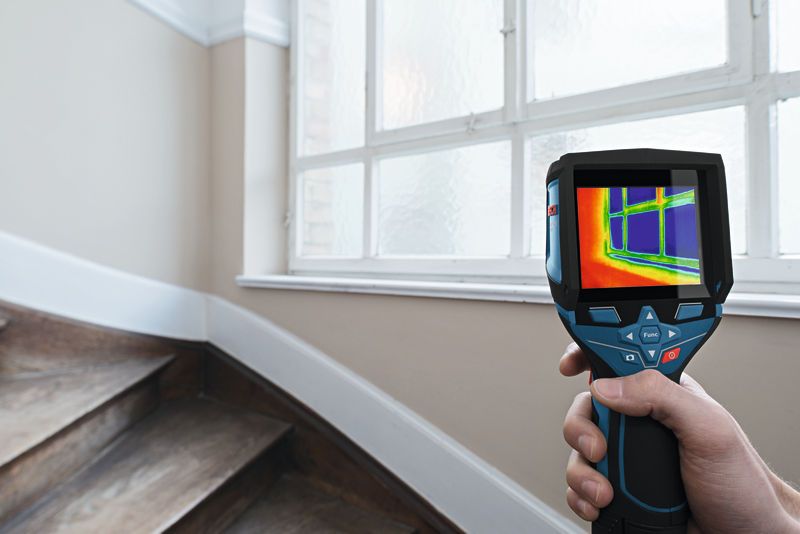

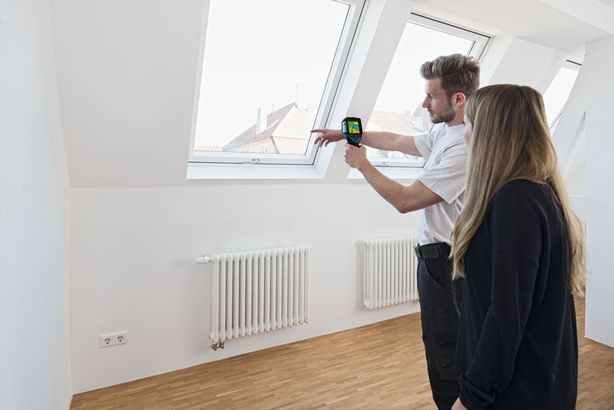

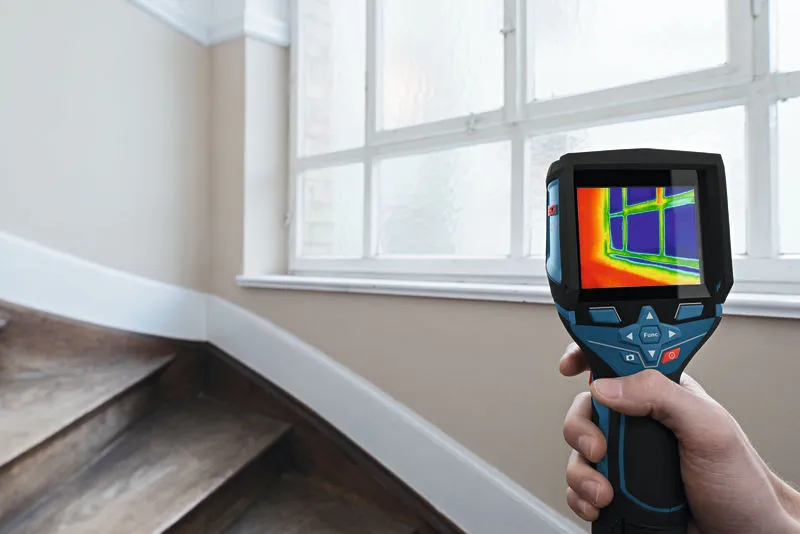

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

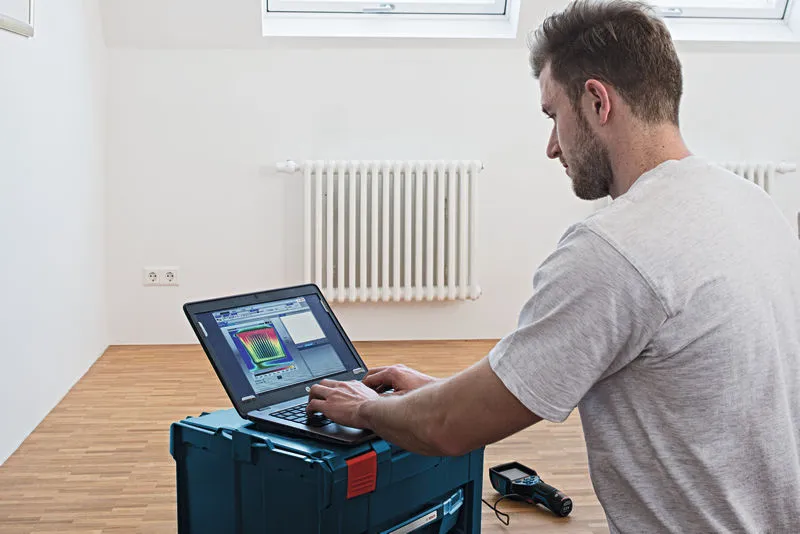

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
