Laser Measure
The most important data |
|
---|---|
Laser diode | 635 nm, < 1 mW |
Measurement range* | 0.05 – 50.00 m |
Laser class | 2 |
Measurement accuracy, typical* | ± 1.5 mmᵈ |
Measurement range of incline measurement | 0 – 360° (4 x 90°) |
Measuring accuracy (typical)* | ± 0.2°ᶜ |
Measurement time, typical | < 0.5 s |
Measurement time, max. | 4 s |
Power supply | 2 x 1.5 V LR03 (AAA) |
Automatic deactivation | 5 min |
Weight, approx.** | 0.1 kg |
Units of measurement | m/cm |
Memory capacity (values) | 30 |
Dust and splash protection | IP 54 |
Tripod thread | 1/4" |
Data transfer | Bluetooth™ Smart, Bluetooth™ Classic |
Laser colour | Red |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᶜ At >0°C, <100°C, for other surface temperatures, see
ᵈ Plus deviations depending on application and distance, see

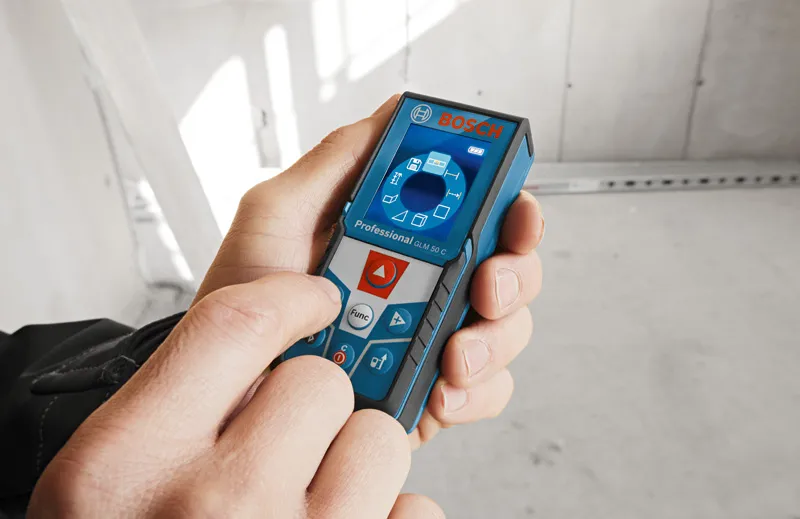

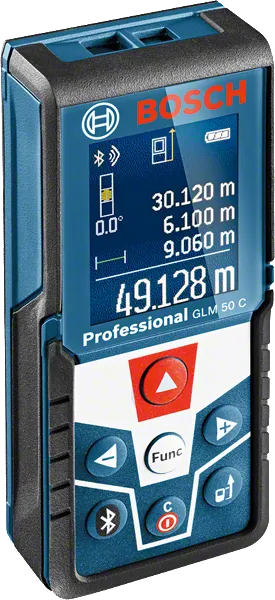

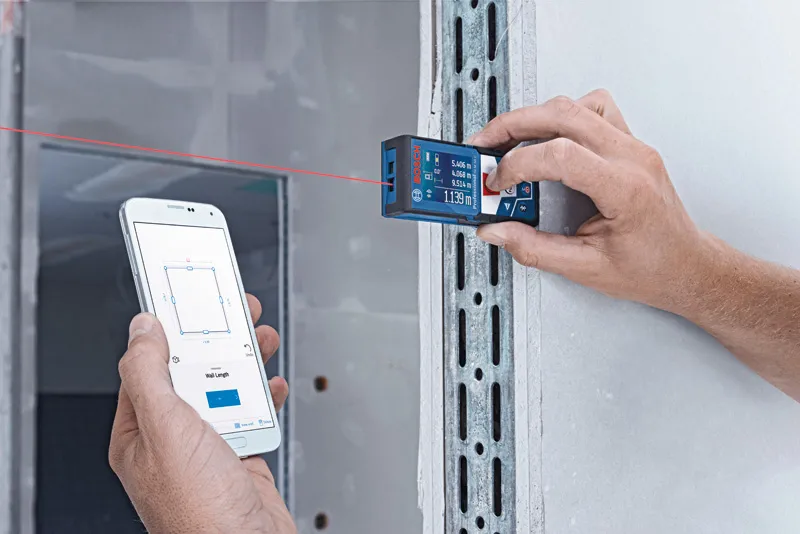

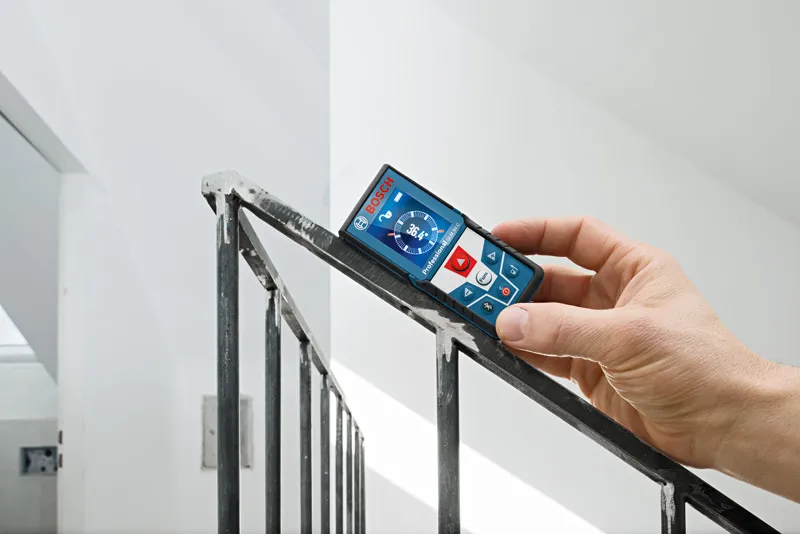

The Laser Measure GLM 50 C Professional is the smart solution for measuring and documenting. Thanks to Bluetooth® connectivity, measurements are conveniently transferred to the Bosch MeasureOn App for smart documentation. It also features a broad range of measuring functions, including a stake-out function and a 360° tilt sensor for easy angle measurements and levelling applications. The tool's simple user interface and illuminated rotating colour display provide easy handling and good readability during use.
It is intended for use when acquiring floor/wall areas and room volumes and is ideal for architects, construction managers, electricians, drywall installers, carpenters, and painters.
In addition to its built-in dust and splash water protection, the Laser Measure GLM 50 C Professional also features a sturdy, shockproof housing that protects the tool from damage when dropped from a height of up to 1 metre.
