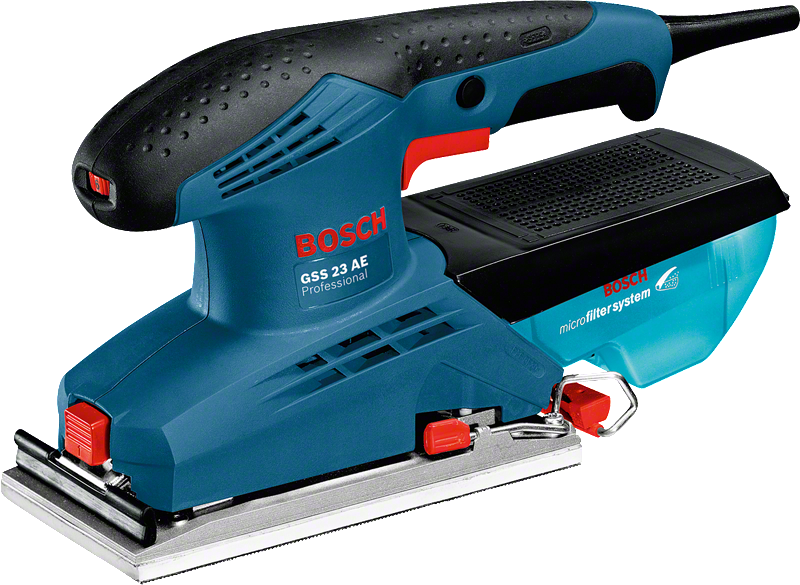

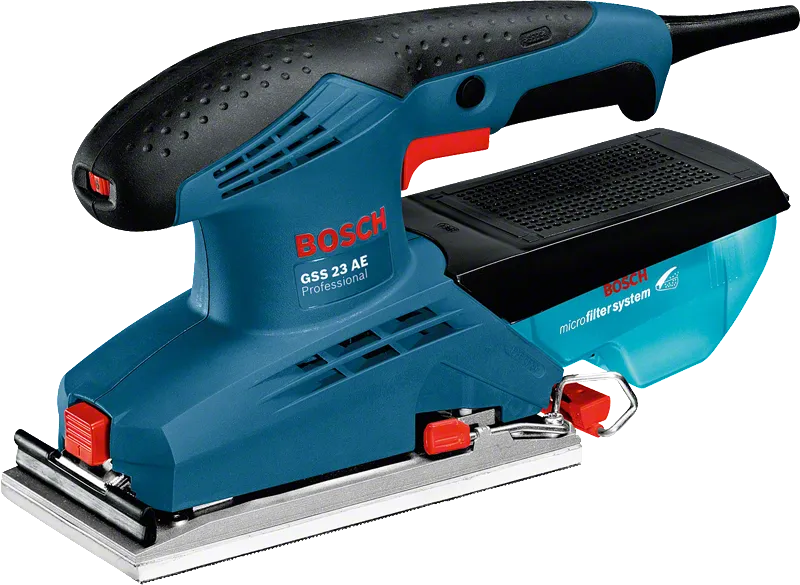

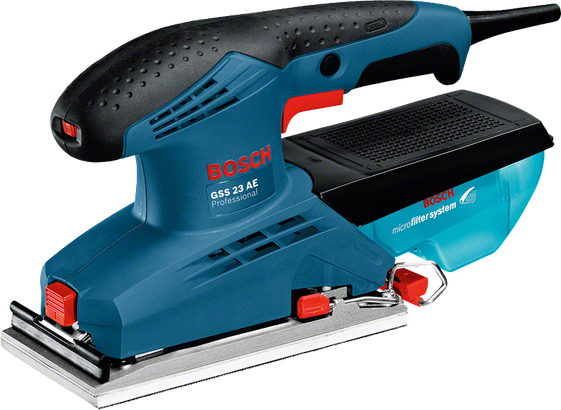

Orbital Sander
GSS 23 AE Professional

with accessory set

Every type of sanding sheet sits perfectly with Easy-Fit

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data
Rated input power 190 W
No-load speed 7,000 – 12,000 rpm
No-load orbital stroke rate 14,000 – 24,000 opm
Orbit diameter 2 mm
Weight 1.7 kg
Packaging dimensions (width x length x height) 100 x 360 x 290 mm
Sanding surface
Sanding plate, width 92 mm
Sanding plate, length 182 mm
Sanding sheet for clamping, width 93 mm
Sanding sheet for clamping, length 230 mm
Sanding sheet with hook-and-loop fastening, width 93 mm
Sanding sheet with hook-and-loop fastening, length 185 mm
Noise/vibration information

Total vibration values (vector sum of three directions)
Sound pressure level 80 dB(A)
Sound power level 91 dB(A)
Uncertainty K 3 dB
Sanding panel materials
Vibration emission value ah 4.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Every type of sanding sheet sits perfectly with Easy-Fit

  • Easy-Fit system with automatic paper tensioning for a perfect hold of roll paper or hook-and-loop paper
  • A perfect paper fit ensures maximum surface quality and optimum interaction with microfilter for dust-free working
  • Electronic control for material-specific working (the only one in this price class)

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed

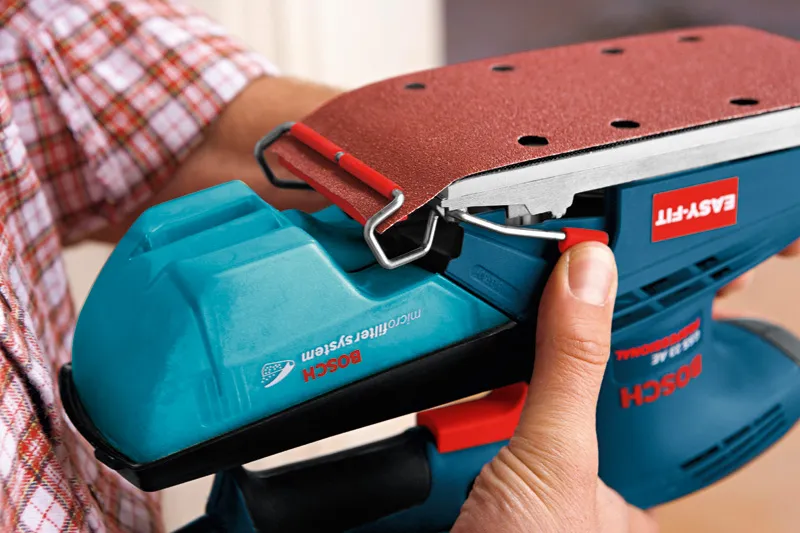

Perfect hold of roll paper or hook-and-loop paper thanks to Easy-Fit system with automatic paper tensioning
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories

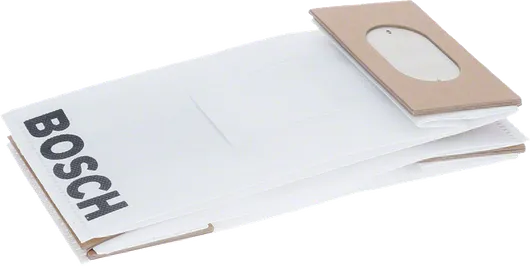

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

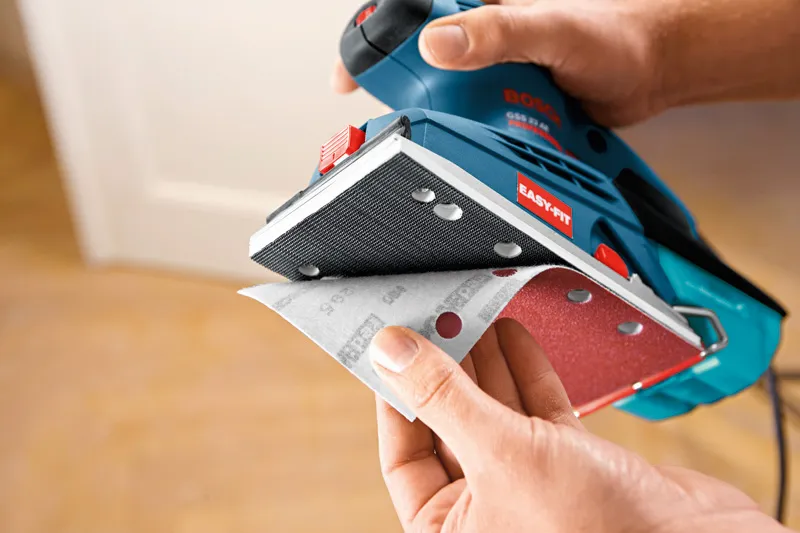

Easy attachment and detachment of sanding paper thanks to hook-and-loop

Prices / Package contents


with accessory set

Order number: 0 601 070 740

Selected version

Price includes:

  • Hole punch 2 608 190 016
  • Microfilter box (spare part number 2 609 199 059)

Downloads

Product data sheet

GSS 23 AE Professional
(approx. 1.5 MB)

Download
User Manual

GSS 23 AE (PDF 4.5 MB)

Download
