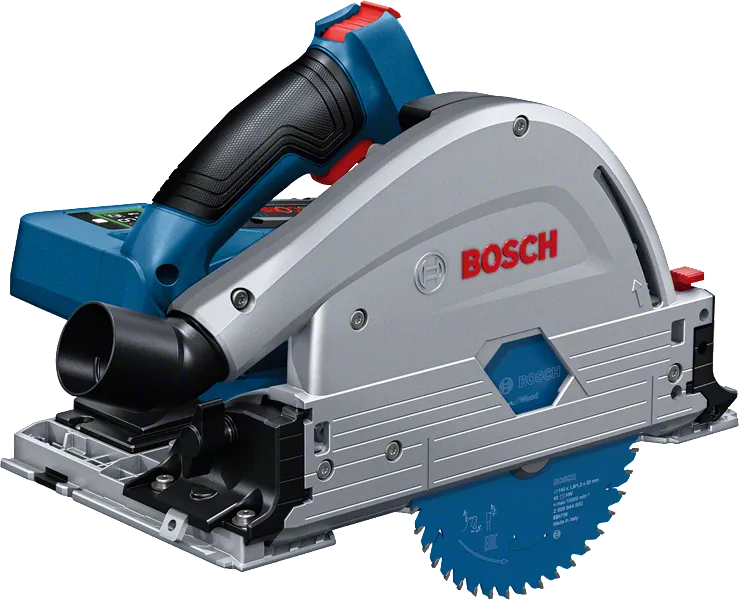

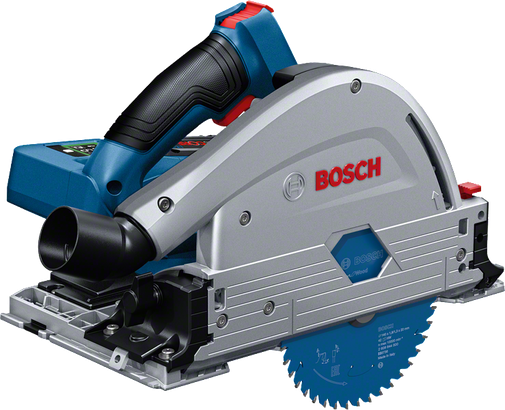

Cordless Plunge Saw BITURBO
GKT 18V-52 GC Professional

with Hex key

Corded performance and superior compactness in the Bosch 18 V category

Print

Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

No-load speed 2,800 – 5,500 rpm
Weight excl. battery 4.1 kg
Saw blade bore diameter 20 mm
Saw blade diameter 140 mm
Baseplate 305 x 169 mm
Bevel angle -1 - 47°

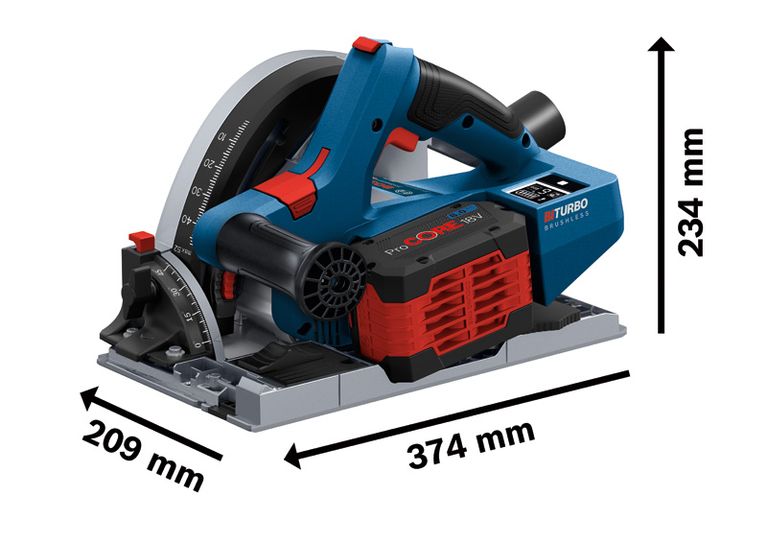

Tool dimensions (width) 209 mm
Tool dimensions (length) 374 mm
Tool dimensions (height) 234 mm
Packaging dimensions (width x length x height) 442 x 357 x 253 mm
Battery voltage 18 V
Cutting depth
Cutting depth without guide rail (90°) 52 mm
Cutting depth with guide rail (90°) 46 mm
Cutting depth without guide rail (45°) 32 mm
Cutting depth with guide rail (45°) 32 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 96 dB(A)
Sound power level 107 dB(A)
Uncertainty K 3 dB
Wood sawing
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Corded performance and superior compactness in the Bosch 18 V category

  • BITURBO Brushless technology and ProCORE18V for maximum cordless cutting performance equal to corded 1,620 W plunge saws
  • Superior mobility due to a uniquely compact design allowing operation with only one battery

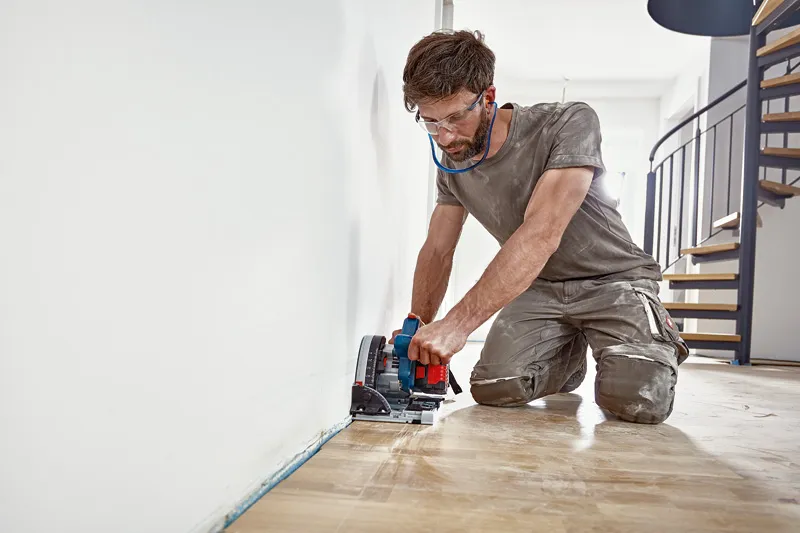

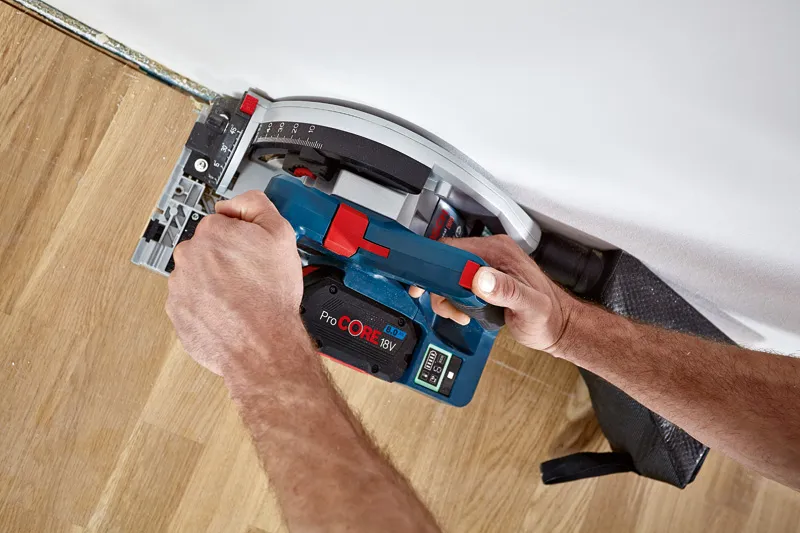

  • Very compact design enables minimum distance between saw blade and wall of only 10 mm

Functions

Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information

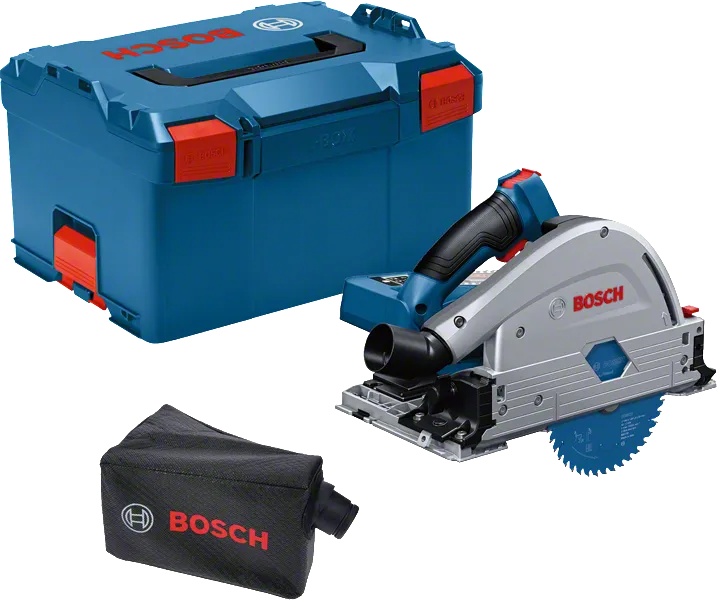

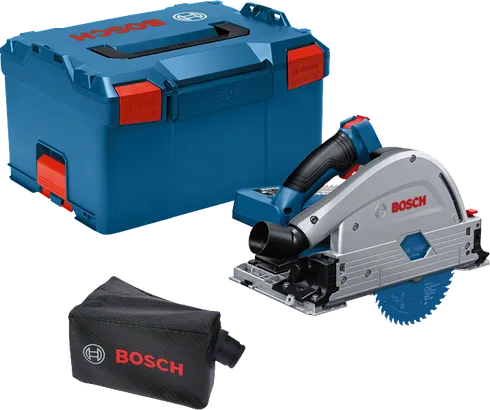

Scope of supply

with Hex key

Order number: 0 601 6B4 040

Selected version

Price includes:

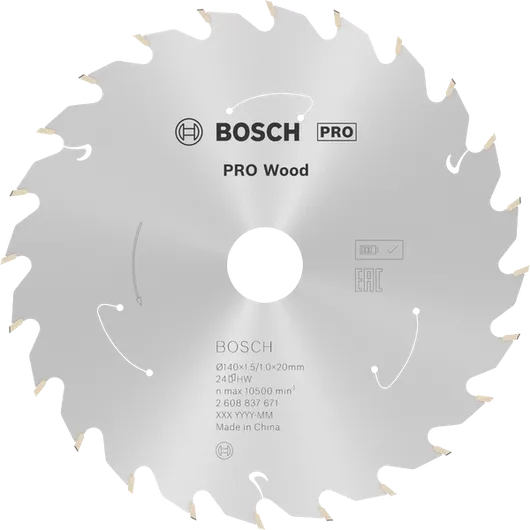

  • 1 x circular saw blade, Precision Pro for General Purpose, 140 x 1.8/1.2 x 20 mm, 42 2 608 644 644
  • L-BOXX 238 1 600 A01 2G2
  • Dust bag 2 608 000 696
  • 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
  • Hex key
