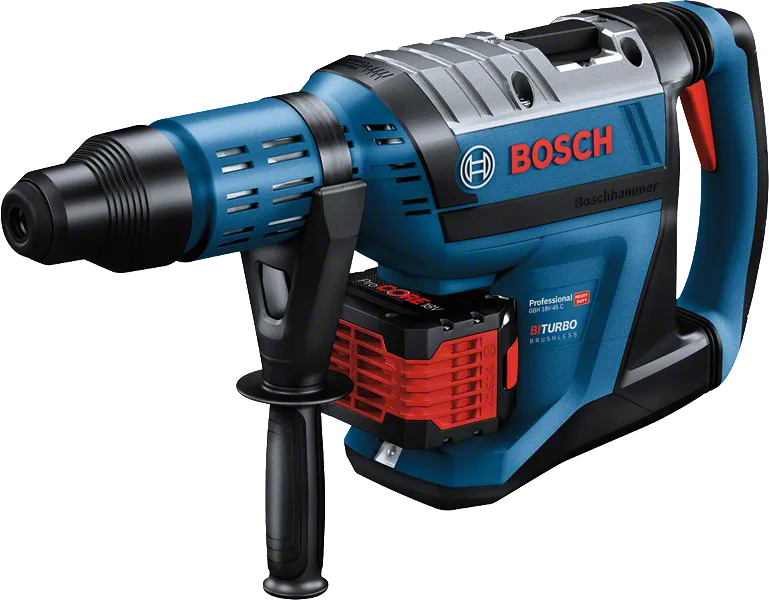

Cordless Rotary Hammer BITURBO with SDS max
GBH 18V-45 C Professional

  • New
in carrying case with accessory set

Cordless freedom with corded performance – the heavy duty all-rounder for concrete drilling and chiselling

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Max. impact energy 12.5 J
Impact rate at rated speed 0 – 2,760 bpm
Rated speed 0 – 305 rpm
Battery voltage 18 V
Weight excl. battery 8 kg
Tool holder SDS max

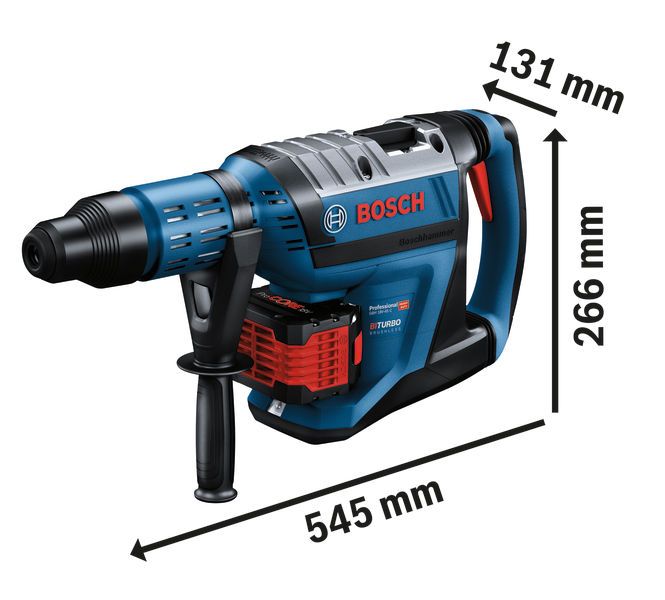

Tool dimensions (length) 545 mm
Packaging dimensions (width x length x height) 411 x 619 x 145 mm
Battery capacity 12 Ah
Drilling range
Drilling dia. in concrete with ham. dr. bits, from 12 mm
Drilling dia. in concrete with ham. dr. bits, to 45 mm
Drilling dia. in concrete with hammer drill bits 12 - 45 mm
Opt. app. range in concrete with hammer drill bits 20 - 40 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Sound pressure level 94 dB(A)
Sound power level 105 dB(A)
Uncertainty K 3 dB
Hammer drilling in concrete
Vibration emission value ah 8.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 7 m/s²
Uncertainty K 1.5 m/s²

Advantages

Cordless freedom with corded performance – the heavy duty all-rounder for concrete drilling and chiselling

  • Cordless freedom with corded performance thanks to BITURBO Brushless technology.
  • Lighter than comparable corded products thanks to a highly optimized drive train, even with attached ProCORE18V 12.0Ah battery
  • KickBack Control for reduced hazard of sudden tool reactions and Soft Start EPC & ASC for a comfortable and precise work process.

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Optimal power transmission for large hammers
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Combi hammer with chisel function No rotary motion; impact effect only
Easy and precise control of the RPM thanks to variable speed
Icon
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Best work results with constant speed thanks to electronic regulation of speed - even under load
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Longer motor life - more runtime - more power thanks to brushless motor
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information
Illumination for the direct workspace
 Individual Speed Setting

Scope of supply

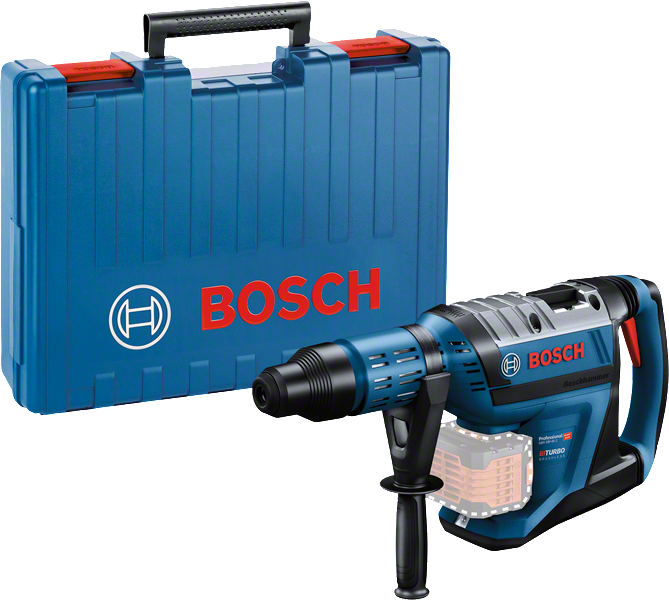

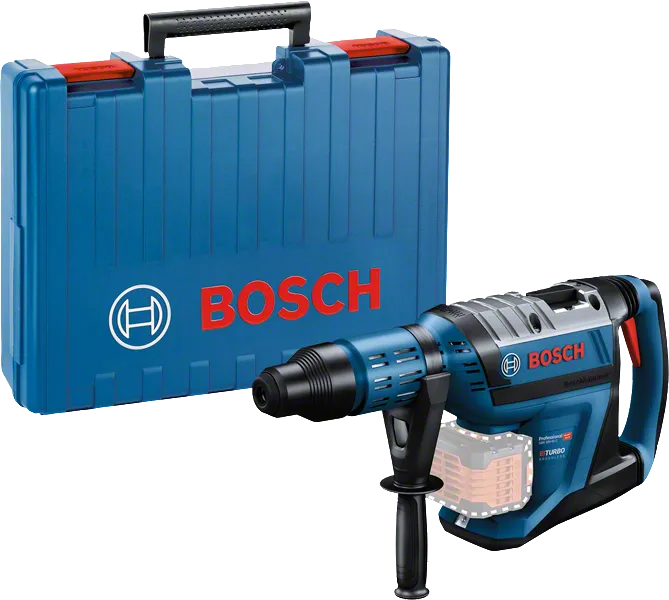

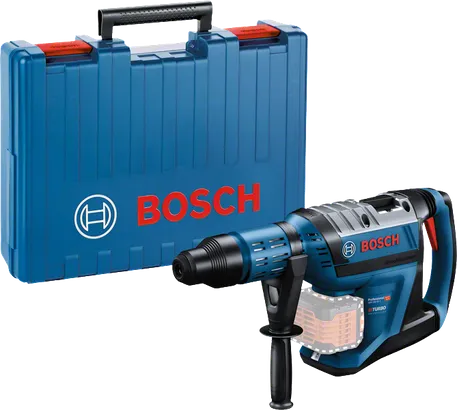

in carrying case with accessory set

Order number: 0 611 913 040

Selected version

Price includes:

  • 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 6NH
  • Auxiliary handle 1 607 031 2E7
  • Grease tube (spare part number 1 615 430 010)
  • Carrying case
  • Machine cloth

* Battery and charger not included
