Detector

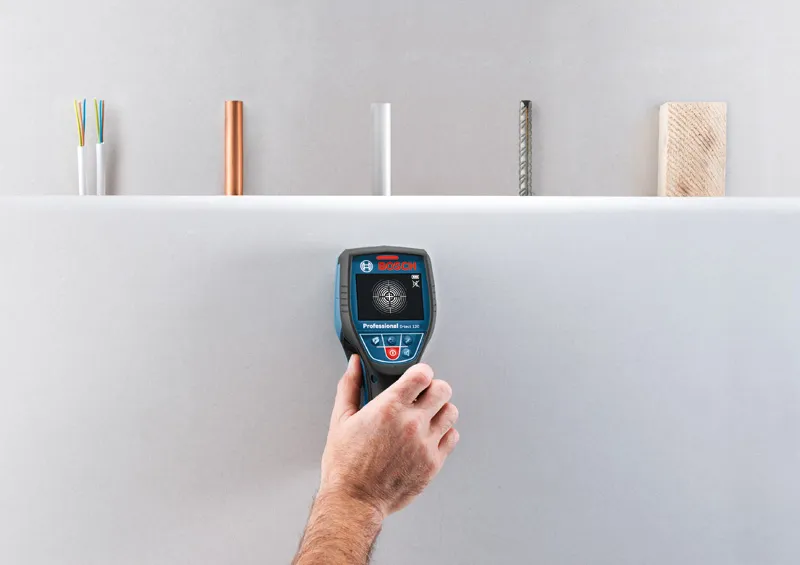

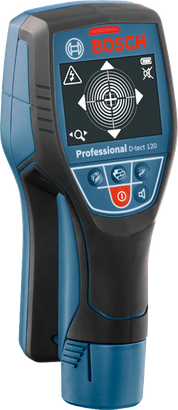

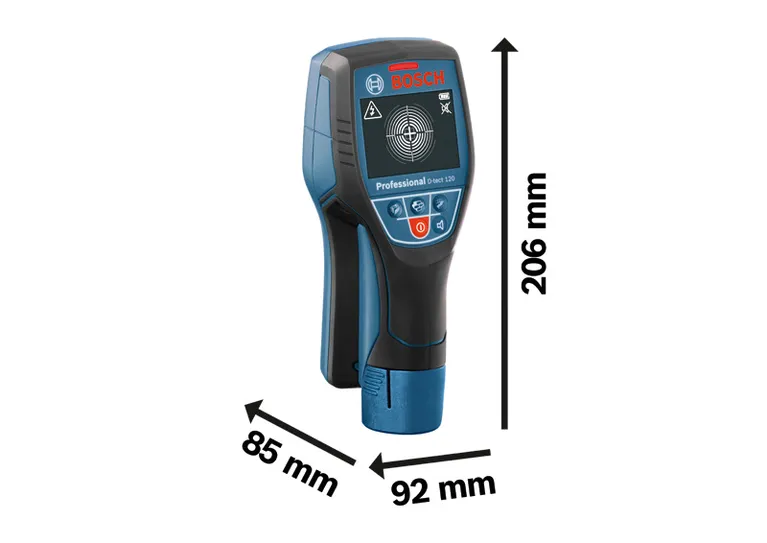

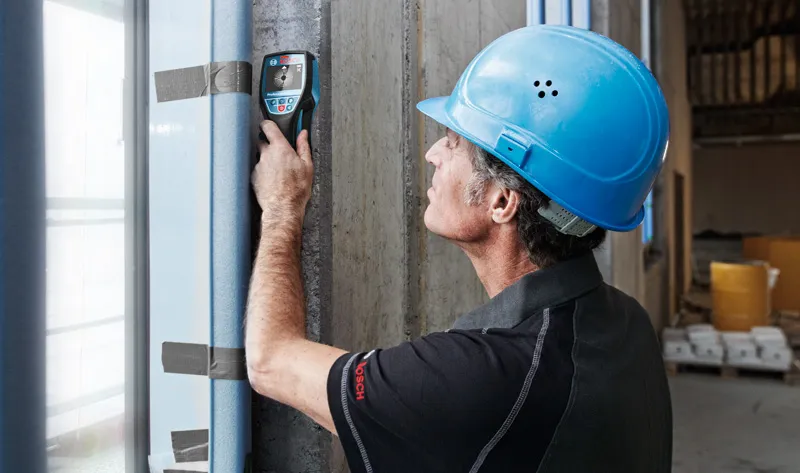

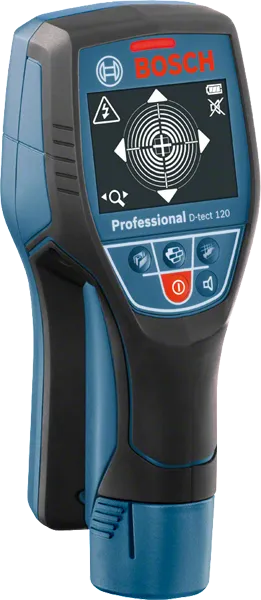

D-tect 120 Professional

Intuitive radar scanner for almost all materials

Print

Technical data

The most important data

Detectable materials Water-filled plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables
Max. detection depth 120 mm
Detection depth, steel, max. 120 mm
Detection depth, copper, max. 120 mm
Detection depth of live cables, max. 60 mm
Detection depth of wooden substructures, max. 38 mm
Accuracy ± 10 mm
Automatic deactivation, approx. 5 minutes
Power supply 10.8V Li-ion or 4 x 1.5 V LR6 (AA)
Weight, approx. 0.5 kg
Material Plastic pipes (water-filled), Copper wires (live), Ferrous metals, Non-ferrous metals (copper)
Detection depth, max. 60 mm, 60 mm, 120 mm, 120 mm, 120 mm, 60 mm, 60 mm
Mode Concrete, Drywall construction, Universal mode
Display of max. drilling depth -

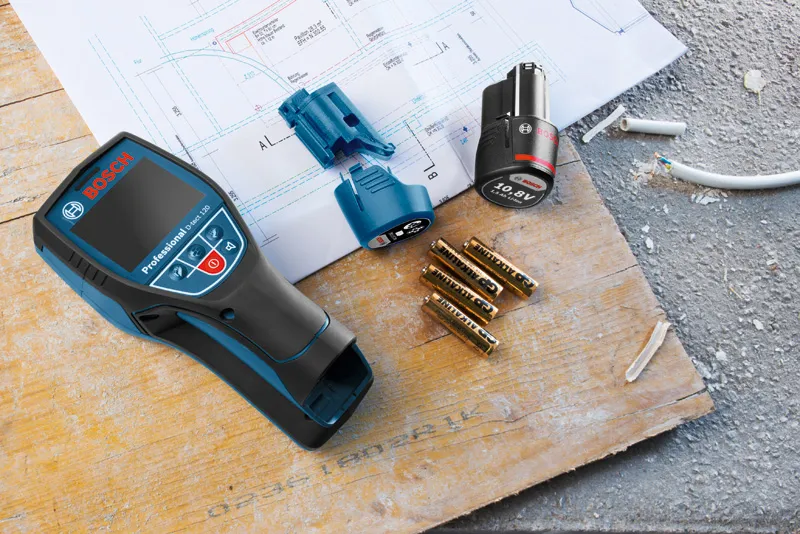

Additional function Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

Advantages

Intuitive radar scanner for almost all materials

  • Spot measurement provides accurate detection on narrow surfaces
  • Centre finder offers visual guidance, to clearly identify the precise location of the object's centre
  • Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Functions

Detection of metal neutral Millimetre-accurate detection of ferrous/non-ferrous metals
Detection of wires neutral Millimetre-accurate detection of live cables
Detection of wood neutral Millimetre-accurate detection of wooden studs
Detection of plastic neutral Millimetre-accurate detection of water-filled plastic pipes
Centre Finder Visual direction guidance for precise locating of the object’s centre
Dual Power Can be powered both by 10.8 V LI rechargeable battery and by standard alkaline batteries
Battery pack 10.8 V-LI Can be operated with 10.8 V-LI battery
35-minute charger 1130 CV Battery fully charged after only 35 mins
L-BOXX ready L-BOXX ready
Object Tracking Displays the exact location of the detected object

Prices / Package contents


D-tect 120

Order number: 0 601 081 3K0

Selected version

Price includes:
