Detectors

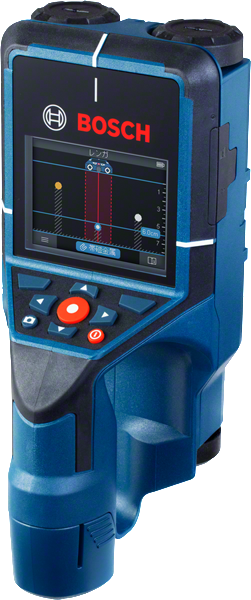

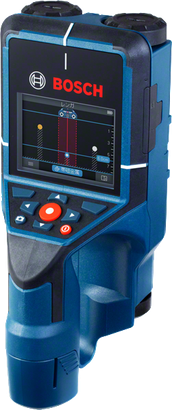

D-tect 200 C Professional

Detector

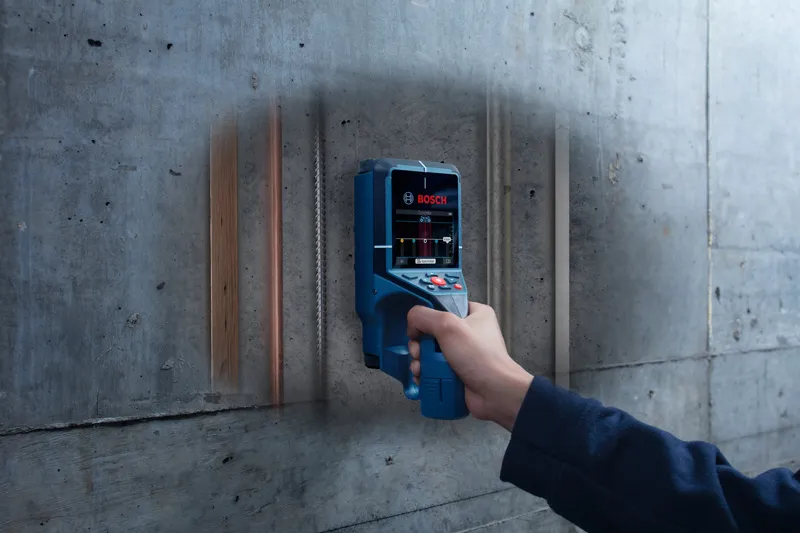

Scan and spot the unseen.

  • More depth for better safety - Increased maximum detection depth to 200mm with object depth indication
  • All-round detection - Detection of all common objects, even in narrow spots with the unique spot mode
  • See the unseen - Clear visualisation of detected objects including the new leakage detection function through the intuitive HMI

Functions & key features

 Detection of live cables
 Detection of metal
 Detection of wood
 Detection of water-filled plastic pipes
 Detection of empty plastic pipes

Your Selection

  • in cardboard box with 4 x battery (AA), adapter
Show variant

Available in 1 onlineshop(s)

Buy now

in cardboard box with 4 x battery (AA), adapter 0 601 081 6K0

D-tect 200 C Professional

Your Selection

D-tect 200 C
in cardboard box with 4 x battery (AA), adapter

Order number: 0 601 081 6K0

Buy now

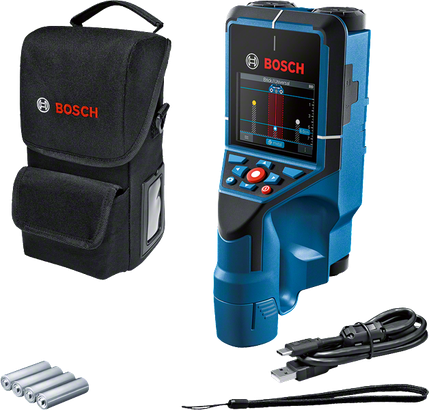

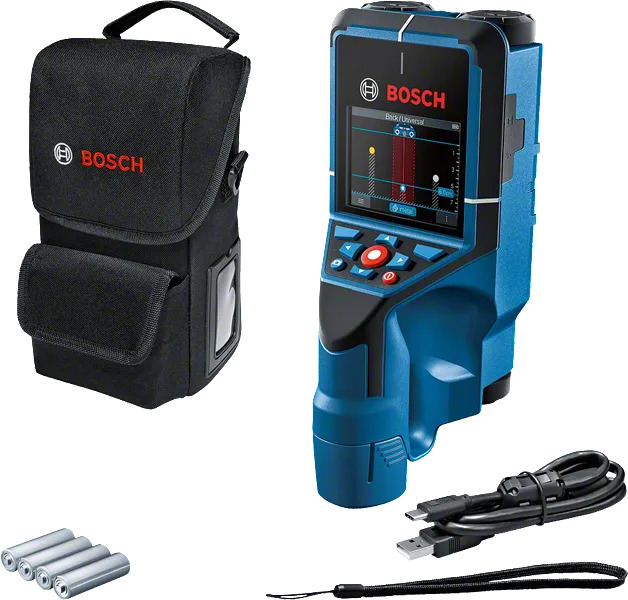

Included in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • USB-C™ Cable
    Order number: 1 600 A01 L6H
  • Hand strap (spare part number 1 609 203 R97)
  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Cardboard box
Our service promise for professionals.
Register now!

Technical data

The most important data

Bosch Radar Technology yes

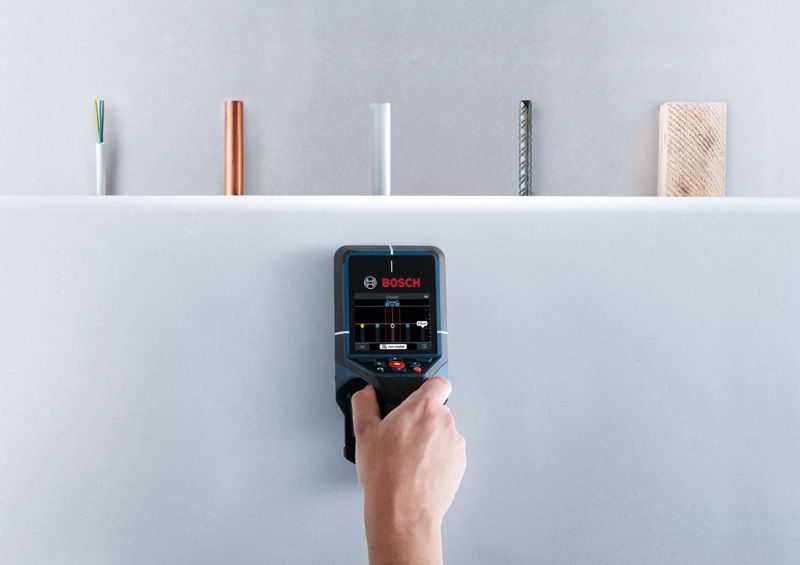

Detectable objects magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (Three-phase power cables, cavities), non-live cables, wooden substructures, water-filled plastic pipes, Empty plastic pipes
Max. detection depth 200 mm
Detection depth, dry concrete, max. 200 mm
Detection depth, early age concrete, max. 60 mm
Detection depth, other wall types, max. 80 mm
Detection depth, magnetic metal, max. 200 mm
Detection depth, non-magnetic metal, max. 80 mm
Detection depth, live cables, max. 80 mm
Detection depth, wooden substructures, max. 38 mm
Accuracy* ±5 mm
Views Object view, Spot view, Signal View, Signal View 2D
Wall types Concrete, Early age concrete, Drywall, Brick/Universal, Horizontal coring brick, Vertical coring brick, Panel Heating
Dust and splash protection IP 5X
Documentation via USB-C, SD-Card
Updatable yes
Material identification Magnetic metal, Non-magnetic metal, Non-metal material, Live cable
Power supply 12 V Li-Ion battery, 10.8 V-LI ION battery, 4 x 1.5 V LR6 (AA)
Weight, approx.** 0.64 kg

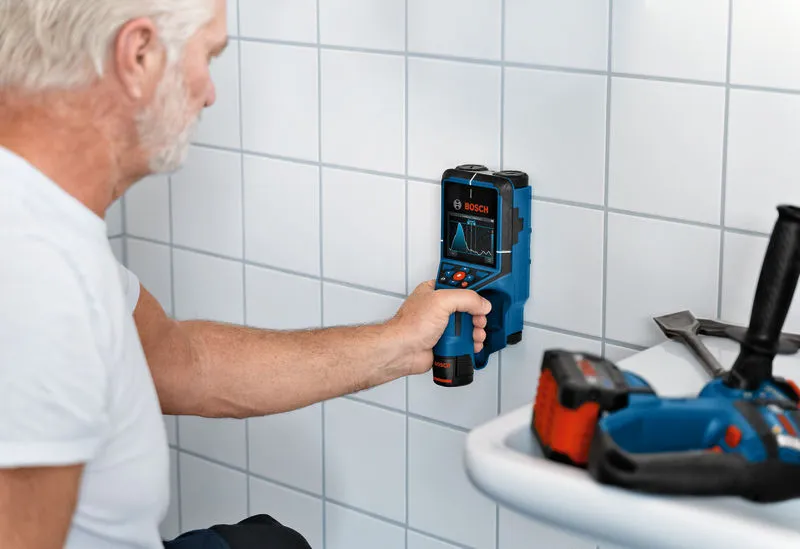

Additional function Leakage detection, distance measurement
Packaging dimensions (width x length x height) 140 x 267 x 163 mm
D-tect 200 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

D-tect 200 C Professional: Further information

Product Highlights

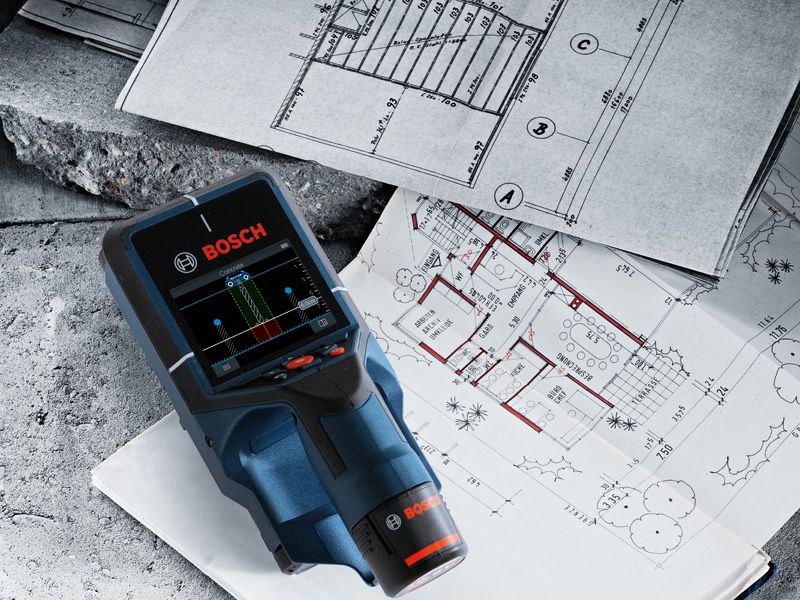

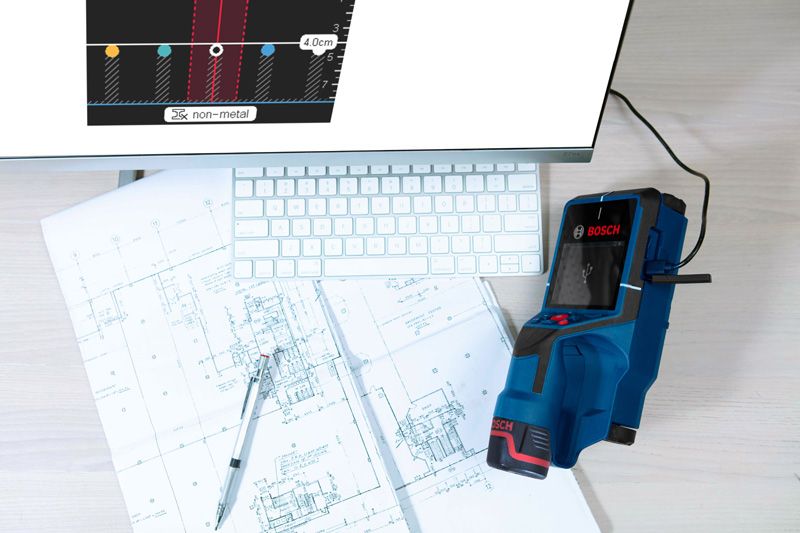

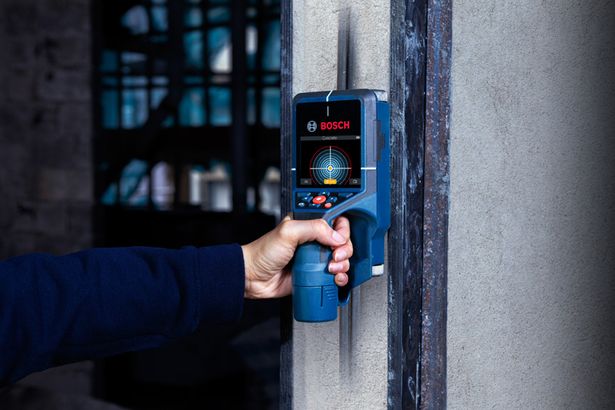

The D-tect 200 Professional detects all common objects and illustrates them clearly while making documentation easy. Equipped with Bosch Radar Technology and an improved HMI, it stands for safer and more precise detection. Multiple view options allow the ideal application for different situations, such as Spot View, that makes detection in hard-to-reach locations easier. The detector enables instant documentation which allows data to be transferred via USB-C or MicroSD-Card connection.

Equipment & Application

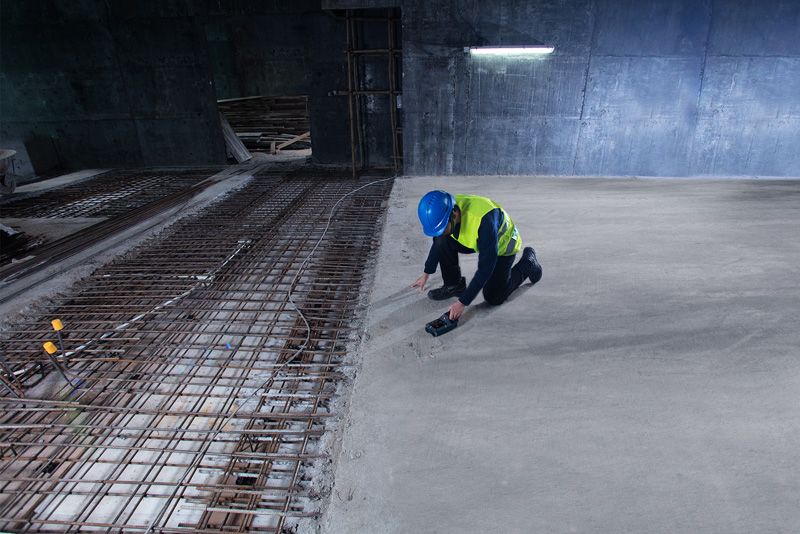

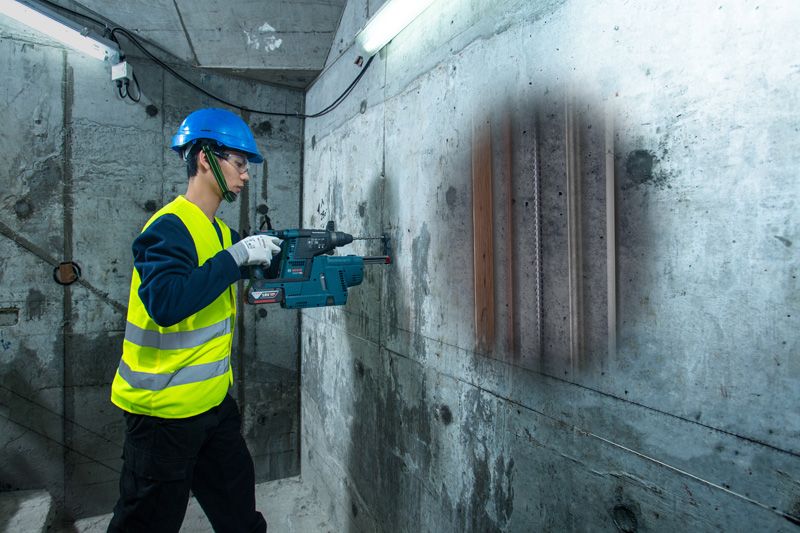

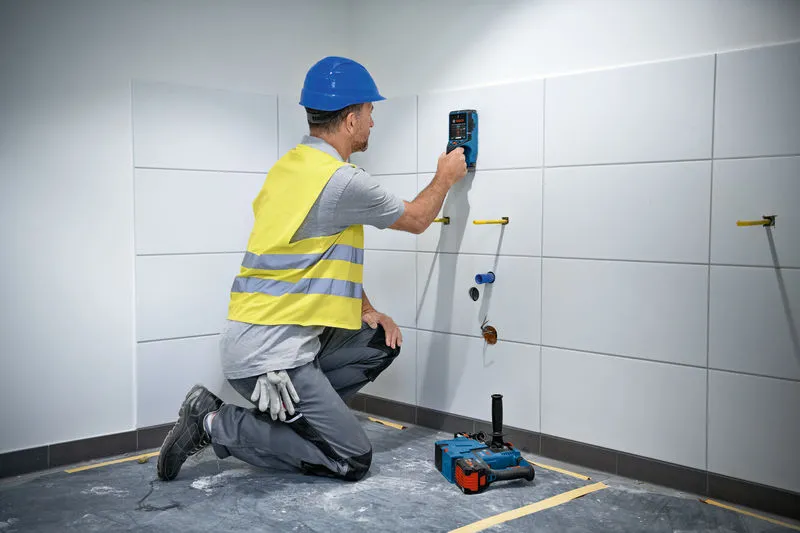

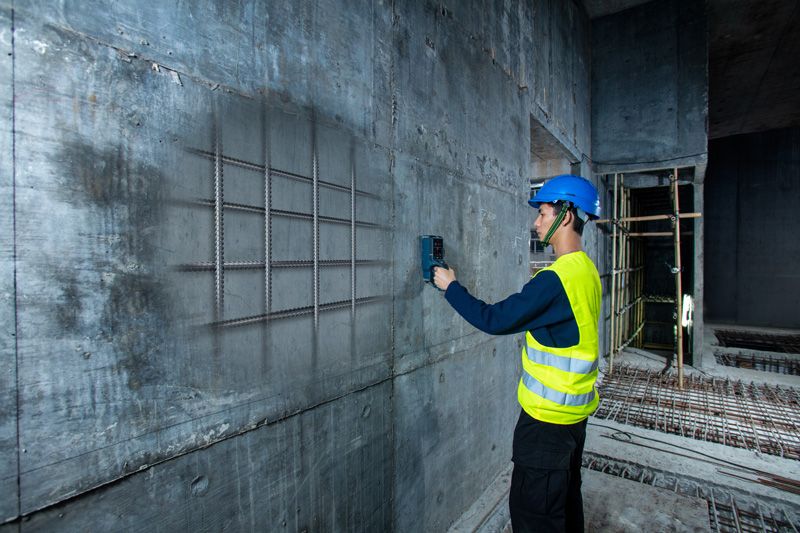

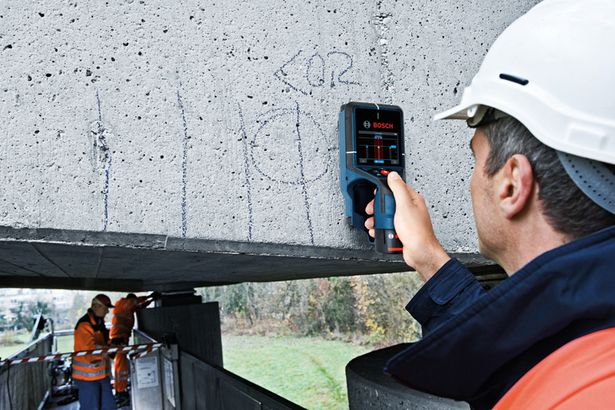

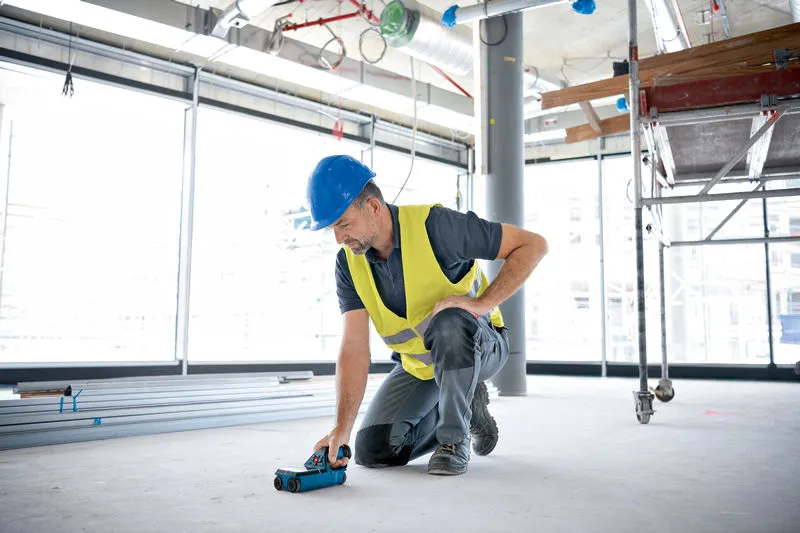

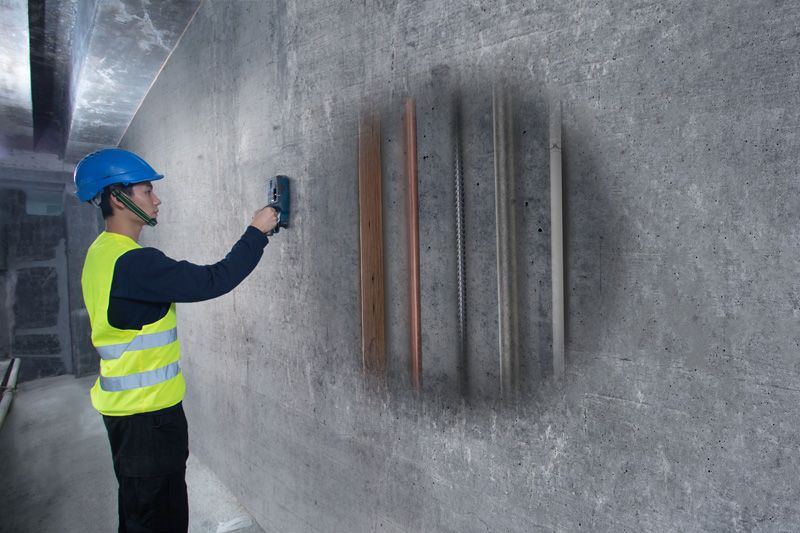

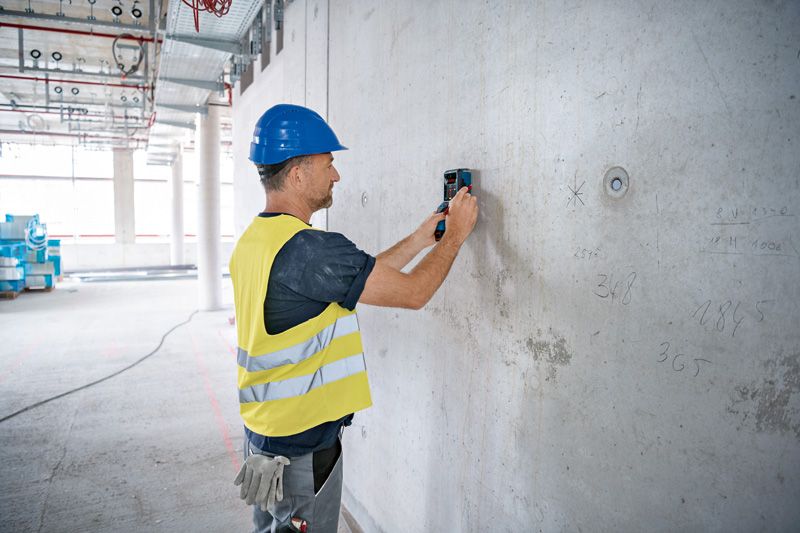

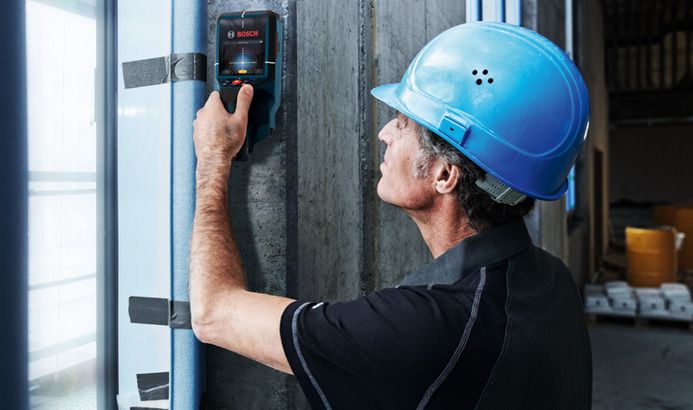

The D-tect 200 Professional supports all round detection, enabling safer construction work during drilling.

Additional Information

The D-tect 200 Professional detects objects in depths of up to 200 mm and indicates the object´s depth.
