Measuring technology

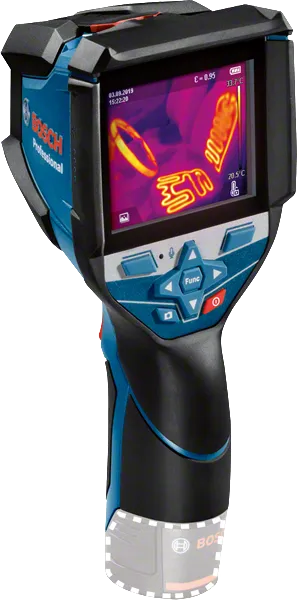

![Bosch GTC 600 C thermal imaging camera with display.]( "GTC 600 C")

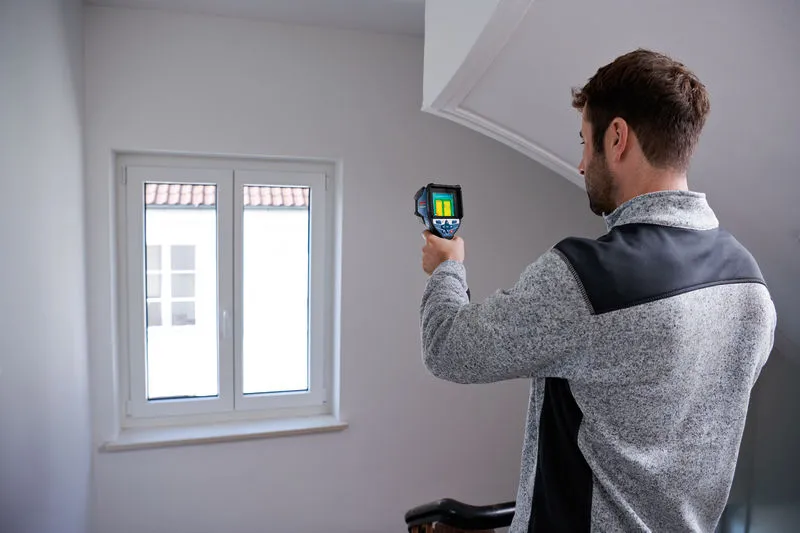

![A person scans a window area with a thermo camera inside a building.]( "GTC 600 C")

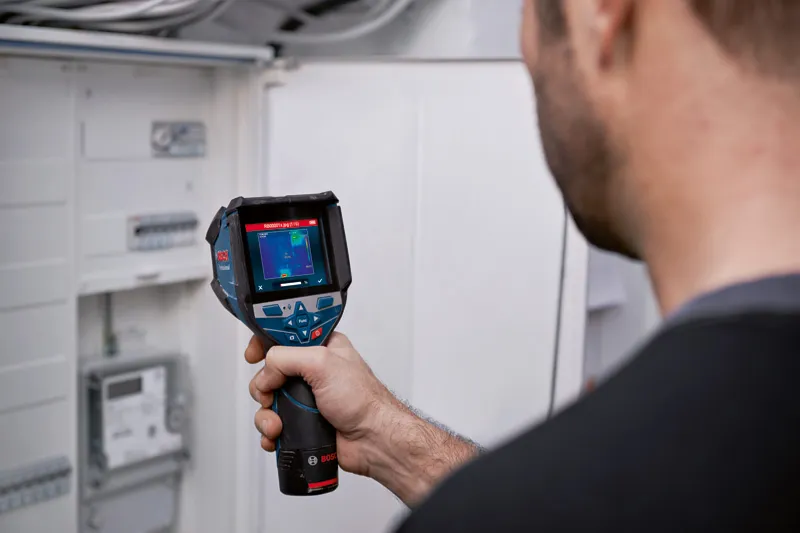

![A person uses a thermo camera to inspect an electrical panel.]( "GTC 600 C")
![A person wearing safety equipment inspects a car engine with a thermo camera.]( "GTC 600 C")

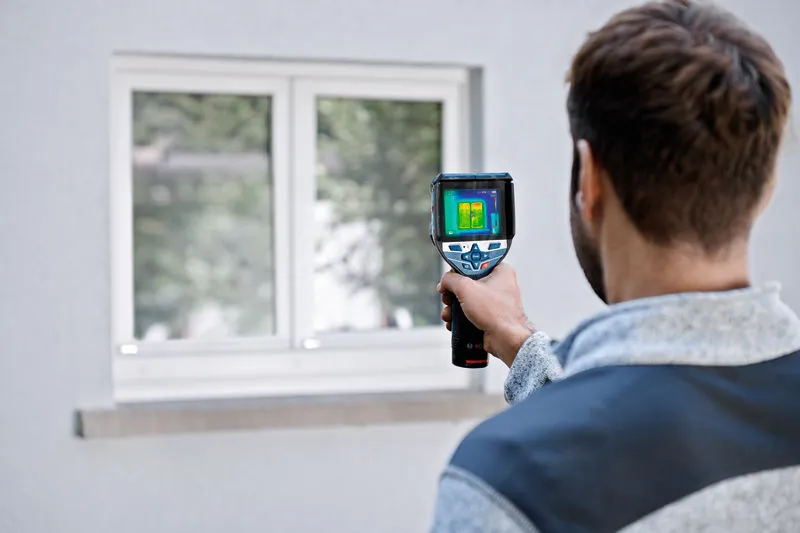

![Person using a thermo camera to inspect a window from outside a building.]( "GTC 600 C")
![A person wearing safety equipment uses a thermo camera while working in an auto repair shop.]( "GTC 600 C")

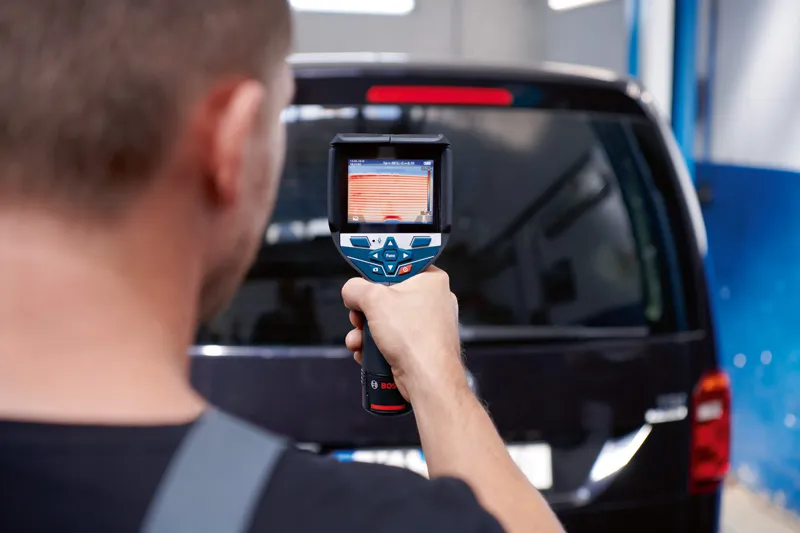

![Person uses a thermo camera to scan the rear window of a vehicle.]( "GTC 600 C")
![A person uses a thermo camera and a smartphone in a tiled bathroom.]( "GTC 600 C")
GTC 600 C Professional
Thermo Camera
Detailed visualisation of temperature differences with smart documentation
- High thermal resolution and wide measuring range for maximum applications
- Voice note and Bosch ThermalOn app enable easy documentation of thermal images
- Intuitive user interface and seamlessly integrated features deliver successful results in minimum clicks
Functions & key features
in carrying bag with Manufacturer’s certificate
0 601 083 5K0
GTC 600 C Professional
Your Selection
in carrying bag with Manufacturer’s certificate
Order number: 0 601 083 5K0

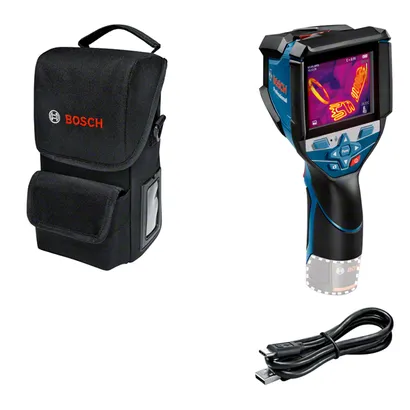

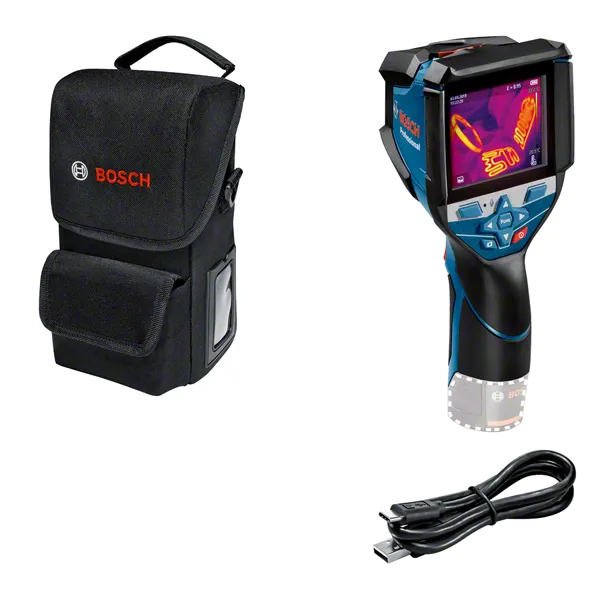

Find a local dealerIncluded in this variant
-
Manufacturer’s certificate
-
Carrying bag
-
USB-C® Cable
Technical data
The most important data
Battery voltage
12.0 V
Measurement range*
-20 °C to +600 °C
Measuring accuracy of IR*
±2.0 °C
Resolution
0.1 °C
Thermal sensitivity (NETD)
<=50 mK
Size of IR sensor
256 Pixel x 192 Pixel
Number of measuring points
49,152
Frame buffer (number of images)
600
File format of image
.jpg
Data transfer
Wi-Fi, USB-C®
Shock protection
2 m
Dust and splash protection*
IP54 (except for the battery or battery adapter)
Weight*
0.6 kg
Size of display
3,5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 50 °C
Focus distance, minimum
0.3 m
Thermal image refresh rate
9 Hz
Frame buffer (number of images each with audio)
350
File format of audio
.wav
* You can find more information about the deviations in the following link:
GTC 600 C Professional: Further information
Product Highlights
Detect temperature differences quickly and easily, even outdoors – Bosch´s thermal camera GTC 600 C Professional offers detailed visualisations of temperature differences and allows for smart documentation. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch ThermalOn app and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.
Equipment & Application
This tool is ideal for detecting insulation problems and unwanted hot or cold spots.
Additional Information
The robust GTC 600 C can withstand falling from a height of 2 m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This thermal camera has a high accuracy of ±2.0°C* and a wide temperature range of -20°C to +600°C.
