For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Cordless Wood Circular Saw Blade is ideal for fast and effortless cuts in all types of wood and wooden materials
Available product options: 3
| Part number | Outer diameter inch | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Pack quantity | ||
|---|---|---|---|---|---|---|---|

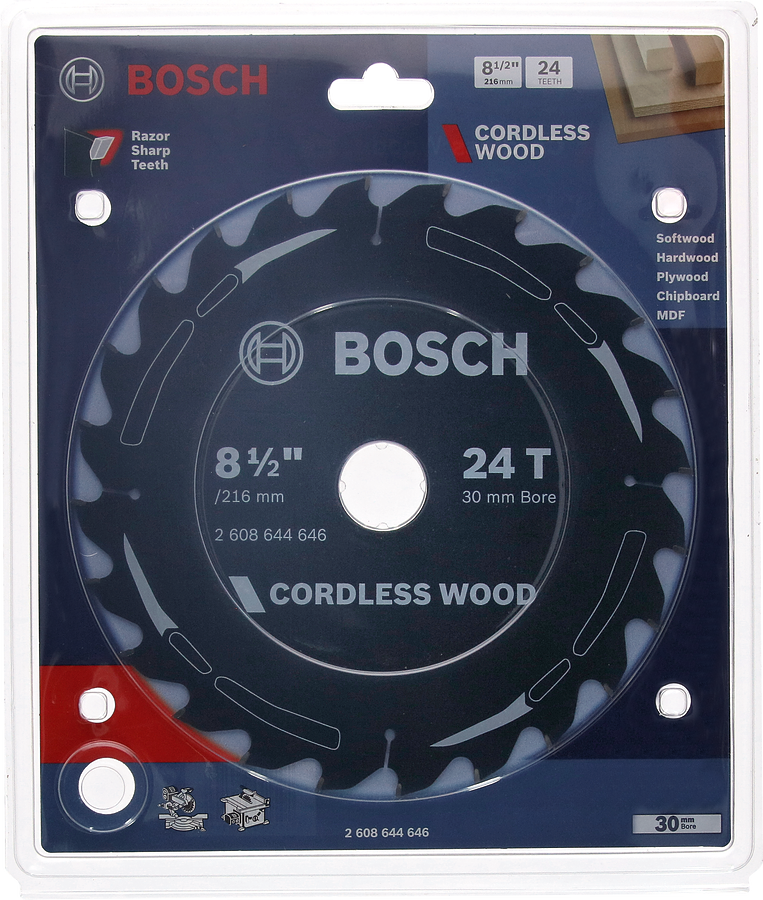

| 2 608 644 646 | 8 1/2 | 216 | 30 | 1.7/1.2 | 1 Pcs | Find a local dealer | |

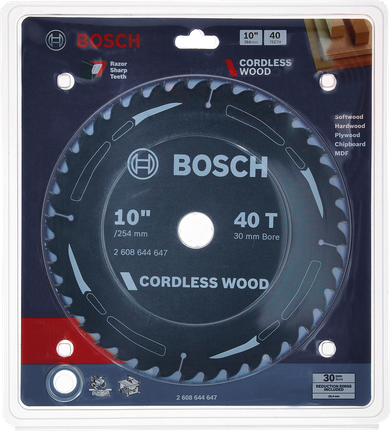

| 2 608 644 647 | 10 | 254 | 30 | 2.2/1.6 | 1 Pcs | Find a local dealer | |
| 2 608 644 648 | 12 | 305 | 30 | 2.2/1.6 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644646 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 8 1/2 |
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.7/1.2 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7000 |
| Relief angle ° β | 15 |
| Part number 2608644647 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 10 |
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Relief angle ° β | 12 |
| Bore with reduction ring mm | 25.4 |
| Part number 2608644648 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 25.4 |
