Receivers

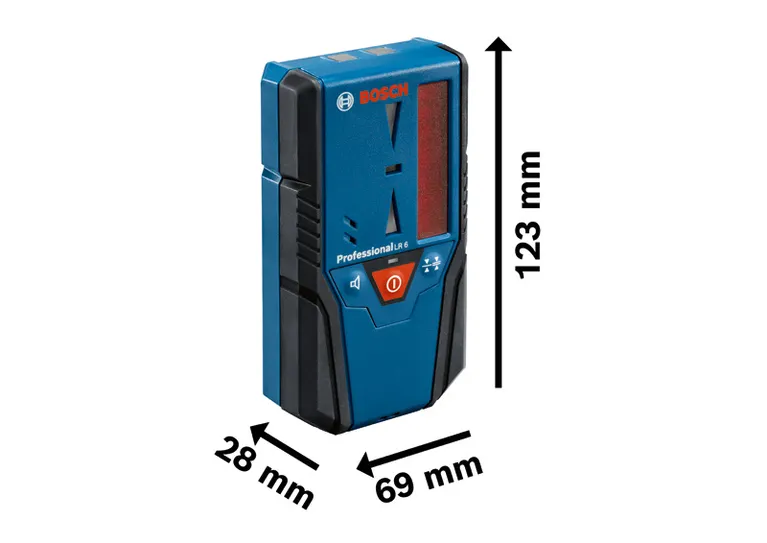

LR 6 Professional

Laser Receiver

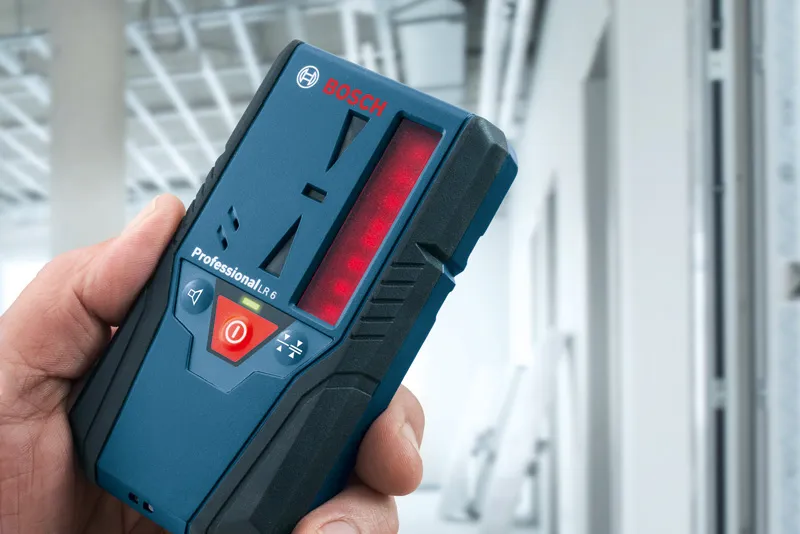

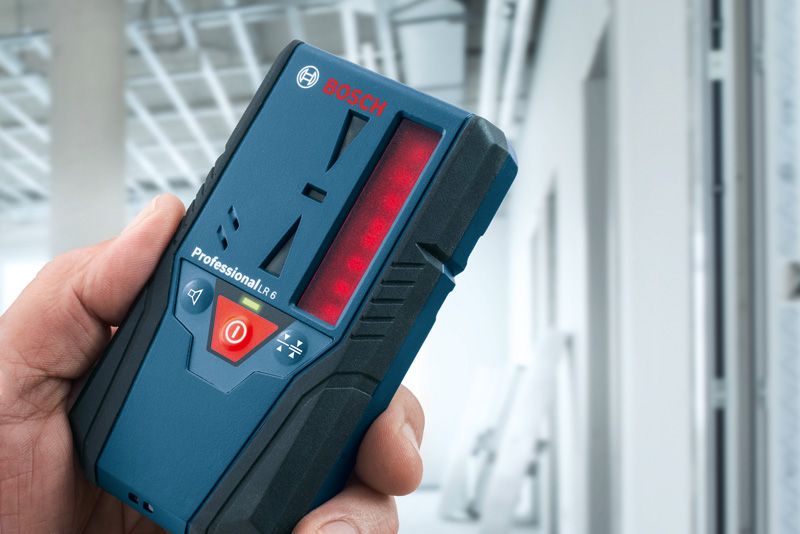

Easy-to-operate laser receiver with a compact design

  • Handy receiver for ranges of up to 50 m

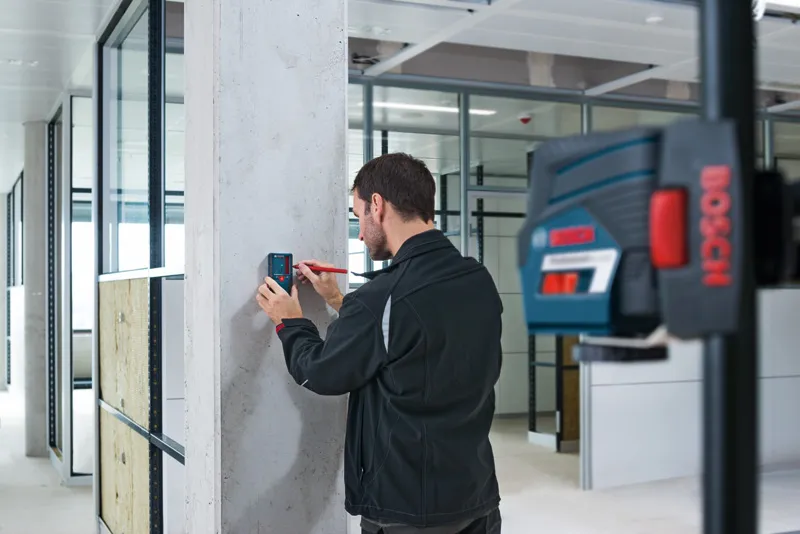

  • Alignment of the laser beam plane, visual and audible signals, for working in various lighting conditions

Functions & key features

Red beam detection
Reception area 50 mm

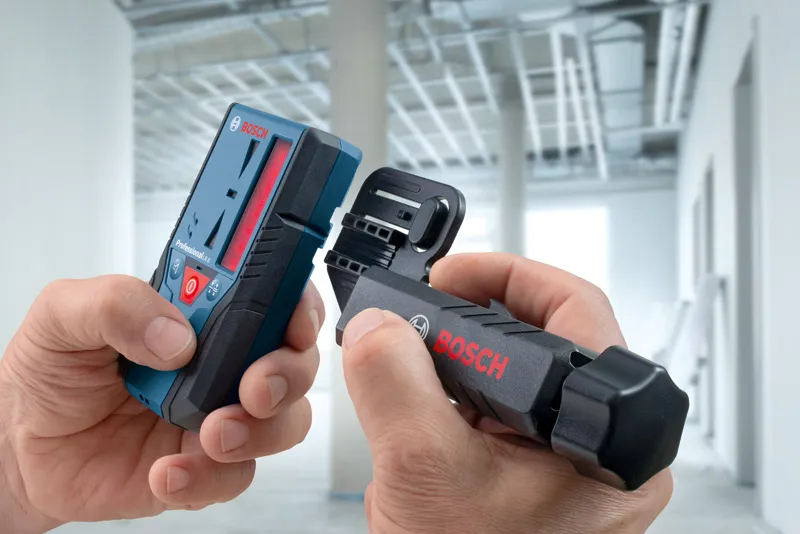

Easy attachment due to magnets on the top of the receiver

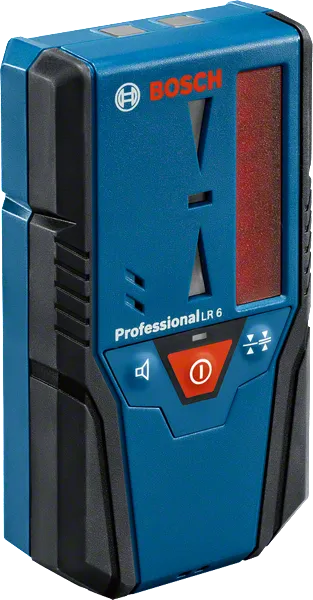

IP54 dust and splash water protection

Your Selection

  • with 2 x battery (AAA)
Show variant

Currently not available online

Find a local dealer

with 2 x battery (AAA) 0 601 069 H00

LR 6 Professional

Your Selection

LR 6
with 2 x battery (AAA)

Order number: 0 601 069 H00

Find a local dealer

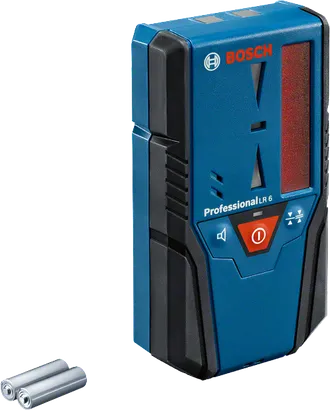

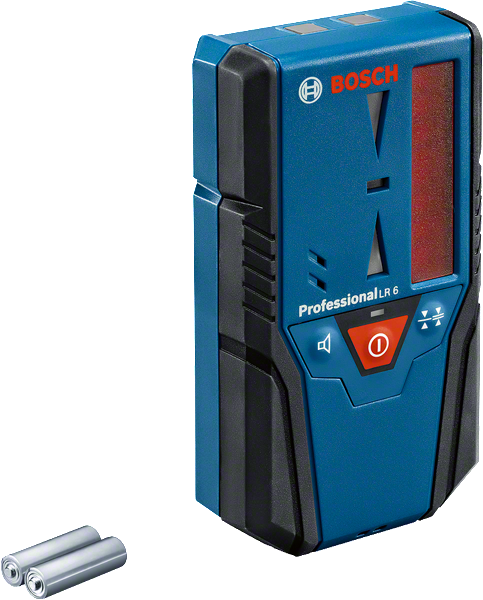

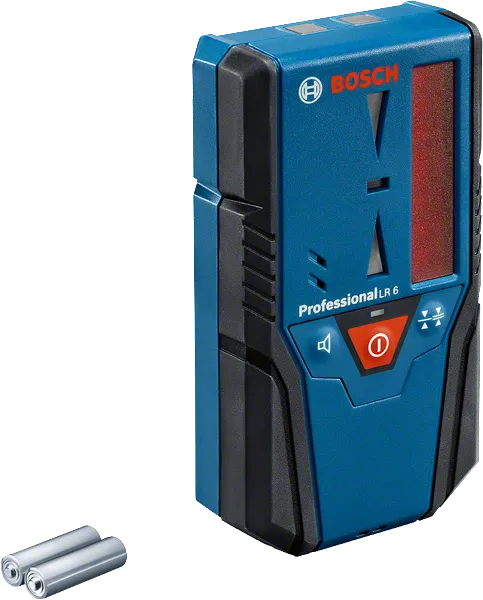

Included in this variant

  • 2 x 1.5 V LR03 battery (AAA)
Our service promise for professionals.
Register now!

Technical data

The most important data

Range of 5 – X m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used)
Power supply 2 x 1.5 V LR03 (AAA)
Dust and splash protection IP 54
Weight, approx.* 0.12 kg
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

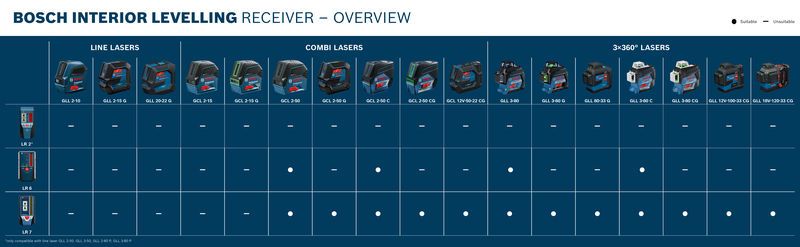

Suitable for GCL 2-50, GCL 2-50 C, GLL 3-80, GLL 3-80 C
Type of receiver Combi- and line lasers

LR 6

* You can find more information about the deviations in the following link: Technical features of products
