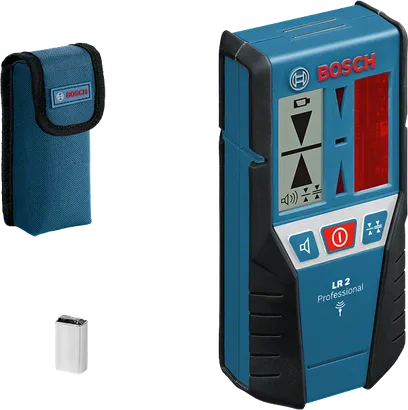

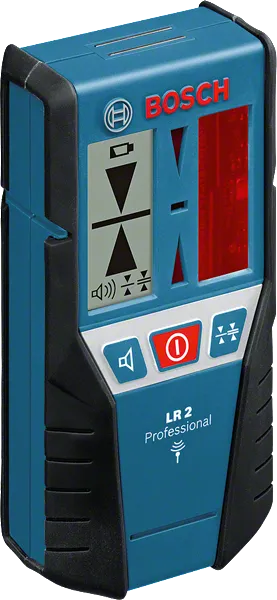

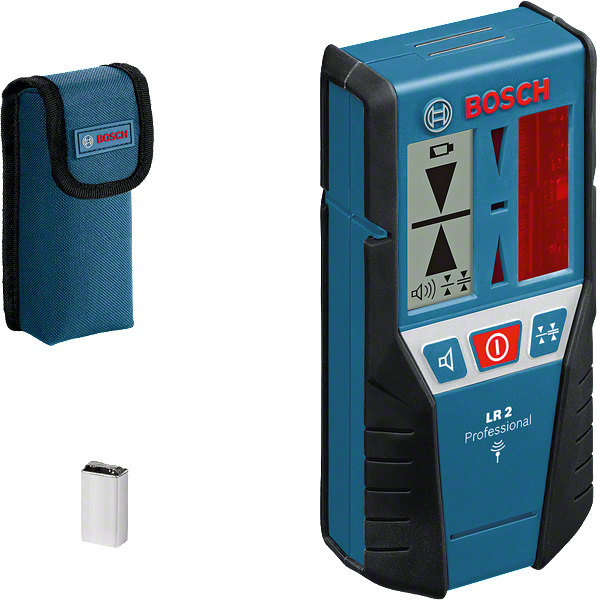

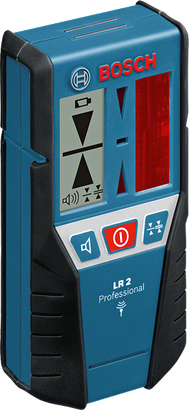

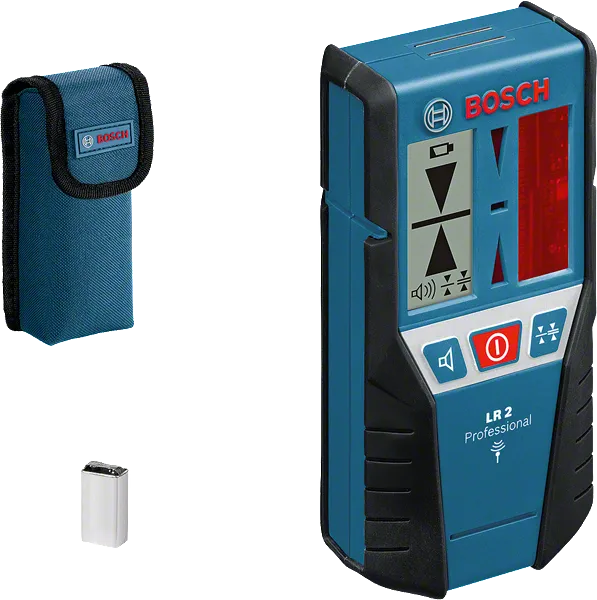

High-performance Receiver
LR 2 Professional

with Accessory

Increased benefit with accessories

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data
Remote control -
Receiver +
Range of 5 – 50 m
Power supply 1 x 9 V 6LR61 Block
Dust and splash protection IP 54
Weight, approx. 270 g

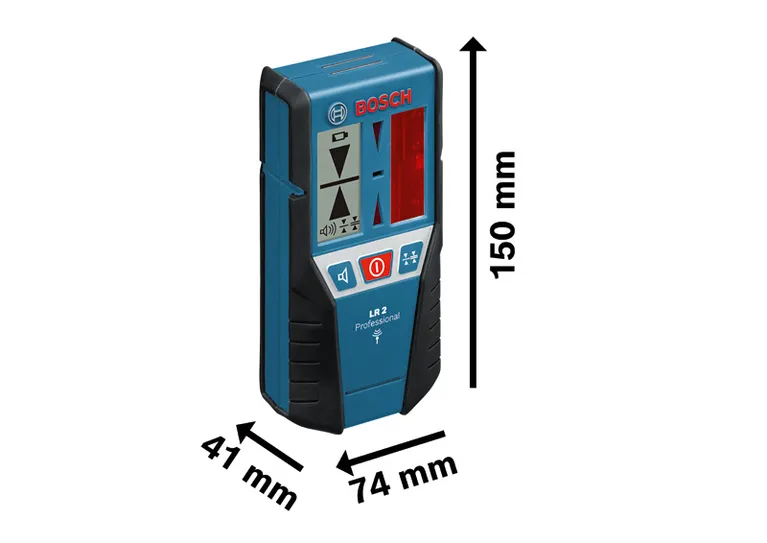

Tool dimensions (width) 41 mm
Tool dimensions (length) 74 mm
Tool dimensions (height) 150 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

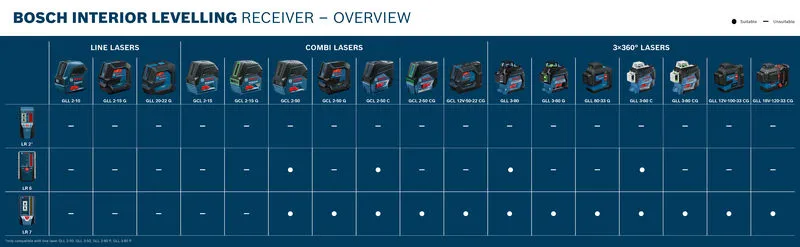

Suitable for GLL 2-50, GLL 3-50

Advantages

Increased benefit with accessories

  • Handy receiver for ranges of up to 50 m
  • Easily attached to a staff
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions

Accuracy Measuring accuracy ± 1.0/3.0 mm
Working range of GLL 2-50 + LR2 receiver Range with receiver 50 m
Working range of GLL 2-80 P + LR2 receiver Range with receiver 40 m

Prices / Package contents


with Accessory

Order number: 0 601 069 100

Selected version

Price includes:

  • 1 x 9 V block battery (6LR61)
Accessories

Accessories

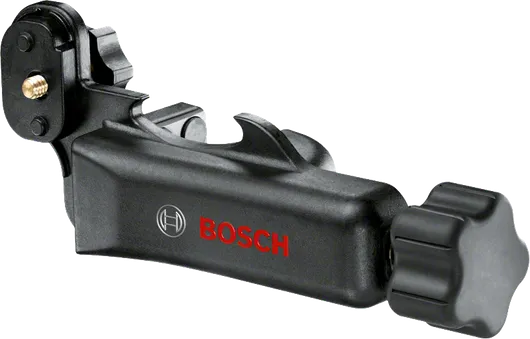

Bracket for LR 1, LR 1G, LR 2

Downloads

Product data sheet

LR 2 Professional
(approx. 1.5 MB)

Download
User Manual

LR 2 (PDF 2.8 MB)

Download
