Measuring wheels

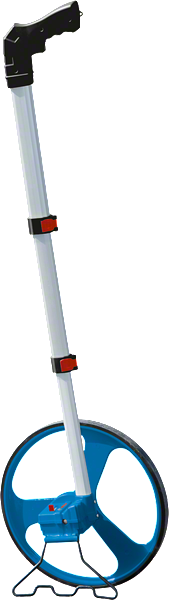

Bosch GWM 32 measuring wheel with aluminium frame.
GWM 32

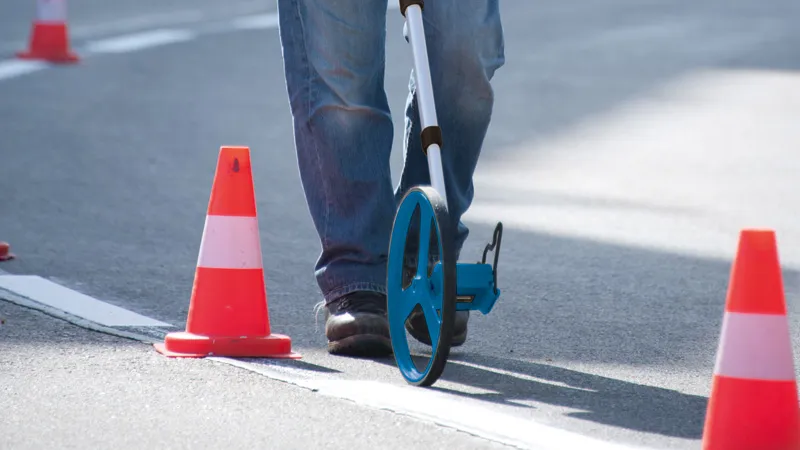

Person measuring road distance with a measuring wheel between traffic cones.

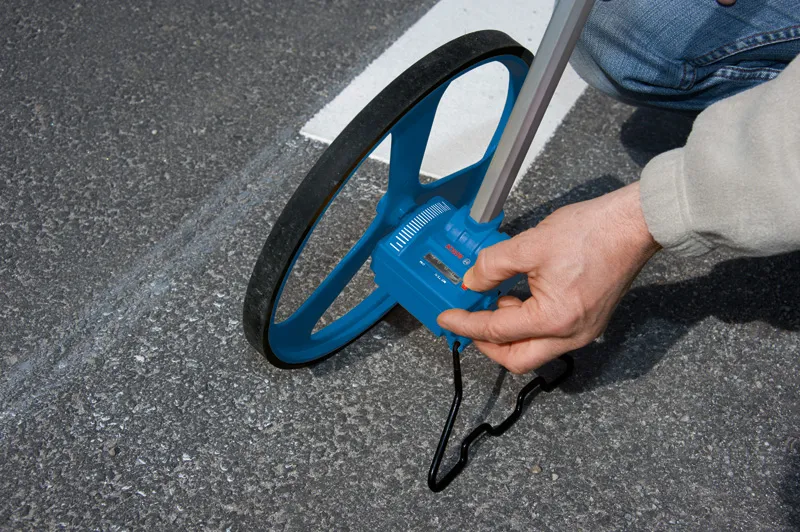

A person measures road distance with a blue measuring wheel on pavement.

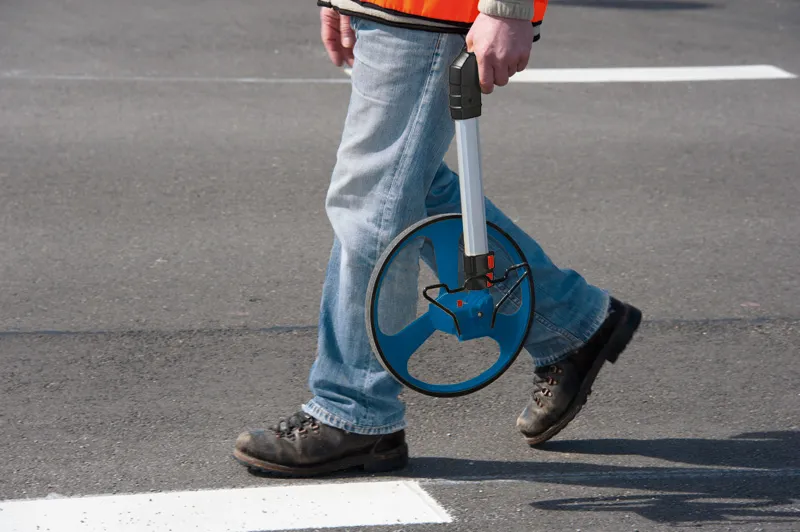

A person wearing safety equipment measures distance on asphalt with a measuring wheel.

GWM 32 Professional

Measuring Wheel

The lightweight, handy measuring wheel

  • Ergonomic pistol grip and lightweight aluminium construction for ease of use
  • Telescopic shaft with continuously variable height adjustment for more flexibility and comfort
  • Die-cast aluminium wheel with robust rubber tread for use on any surface

Functions & key features

Maximum measurement
Diameter 32 cm
1 meter wheel

Your Selection

  • with Protective Bag
Show variant Buy now

with Protective Bag 0 601 074 000

GWM 32 Professional

Your Selection

Bosch GWM 32 measuring wheel with aluminium frame.
with Protective Bag

Order number: 0 601 074 000

Buy now

Included in this variant

  • Protective Bag
Our service promise for professionals.
Register now!

Technical data

The most important data

Wheel diameter (circumference)
318.5 mm (1 m)
Max. measured value
9999.9 m
Handle
Telescopic handle
Material
Aluminium
Measurement accuracy*
±1 dm/100 m
Weight*
1.4 kg

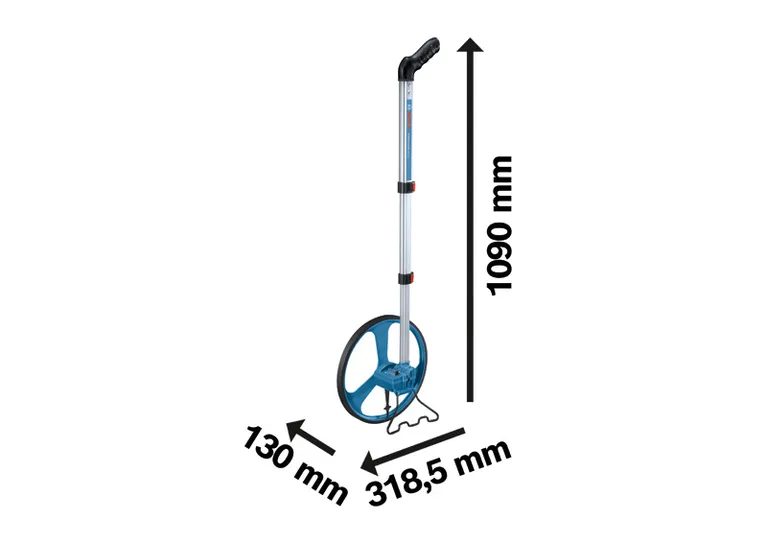

Dimensional diagram

* You can find more information about the deviations in the following link: Technical features of products
