Table Saw
The most important data |
|
---|---|
Rated input power | 1,600 W |
Table size | 500 x 658 mm |
Tool dimensions (width x length x height) | 658 x 500 x 332 mm |
No-load speed* | 5,500 rpm |
Saw blade diameter | 216 mm |
Cutting height 90° | 70 mm |
Cutting height 45° | 50 mm |
Saw blade bore diameter | 30 mm |
Incline setting | 45 ° L / 0 ° R |
Weight* | 22 kg |
Max. cutting capacity on the right | 635 mm |
Packaging dimensions (width x length x height) | 662 x 825 x 417 mm |
Voltage | 240 V |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 103 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:

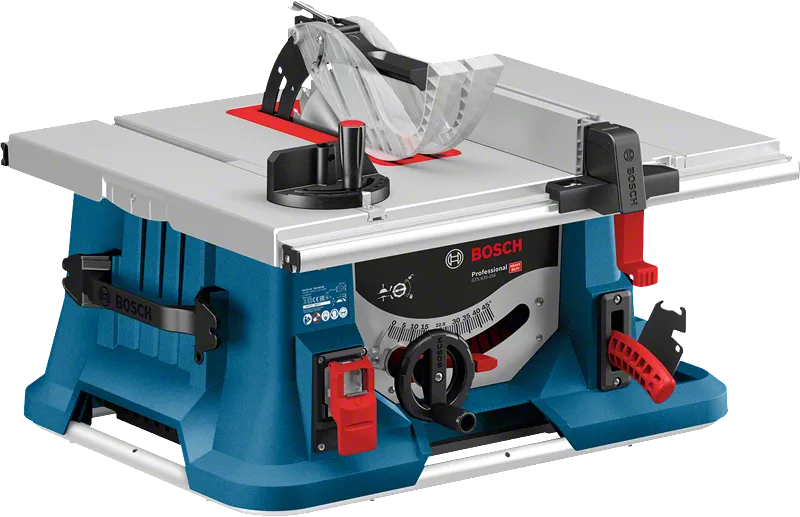

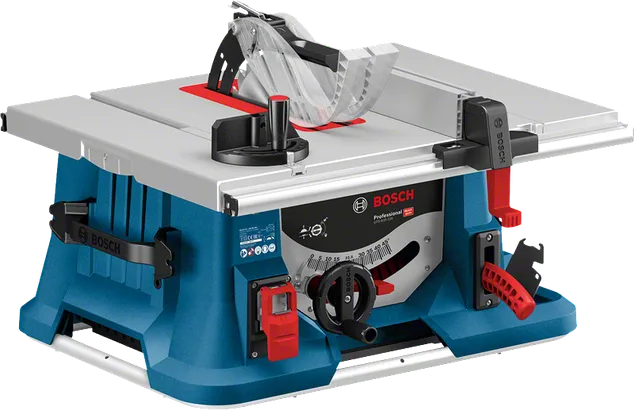

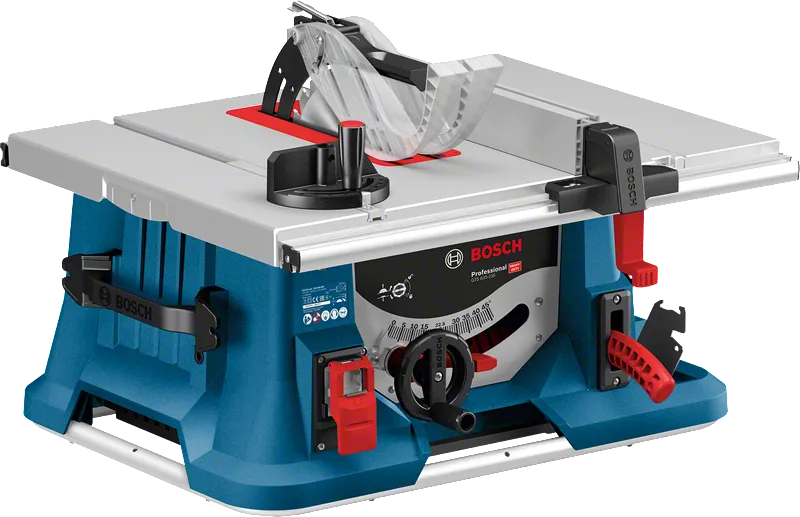

The GTS 635-216 Professional is the compact, yet powerful, table saw for multi-purpose use. Its 1,600 W motor power is ideal for a cutting height up to 70 mm and for a rip capacity up to 635 mm. The low weight of only 22 kg, its ergonomic handles, and protective on-board storage make transport genuinely easy and safe. The table saw works extremely precisely and, due to its integrated slide carriage, table-widener, and table extension, it is exceptionally versatile.

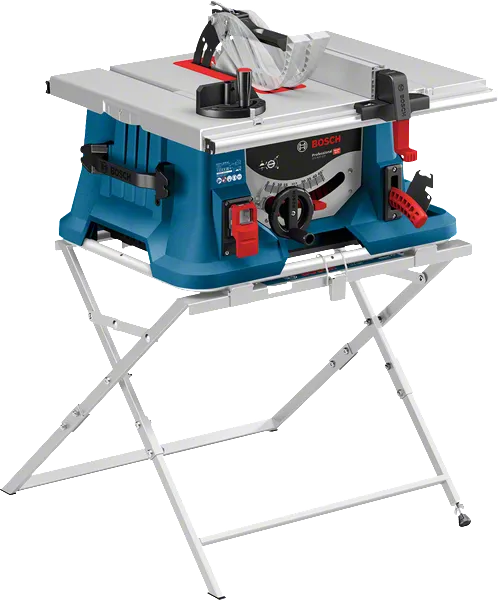

The GTS 635-216 Professional has been desgined for sawing of user-defined sizs, rip cutting, and concealed cuts, especially of board materials, wood, wood composites, and laminate. It is suitable for mounting on a variety of table saw stands and uses the Click & Clean System for the professional power tools from Bosch.
The table saw features a spindle lock, a soft start function, restart protection, and a safety switch for increased user protection.
