Line lasers

GTL 3 Professional

Tile Laser

Fast tile laying due to additional line at 45°

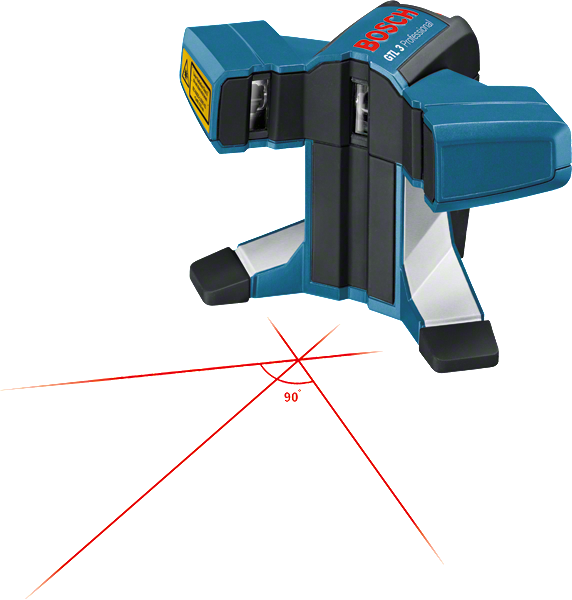

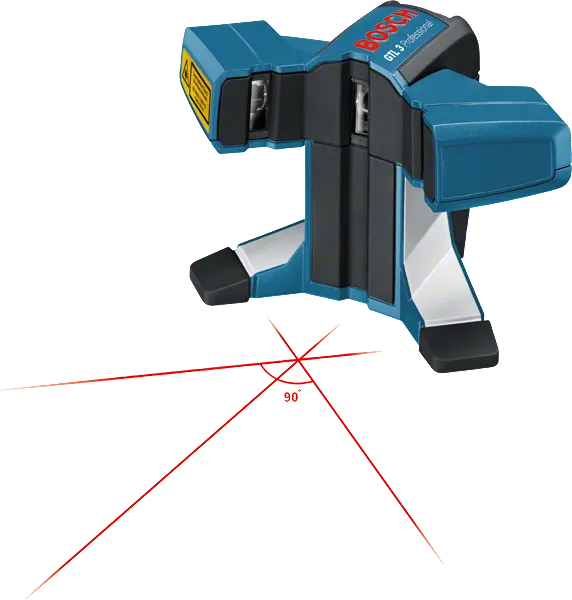

  • In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
  • High accuracy of 0.2 mm/m
  • Compact and lightweight design for optimum ease of use

Functions & key features

Line configuration
Working range up to 20 m
Laser class 2
Power supply 4 x AA battery
IP54 dust and splash water protection

Your Selection

  • with 4 x battery (AA), accessory set
Show variant

Available in 2 onlineshop(s)

Buy now

with 4 x battery (AA), accessory set 0 601 015 200

GTL 3 Professional

Your Selection

GTL 3
with 4 x battery (AA), accessory set

Order number: 0 601 015 200

Buy now

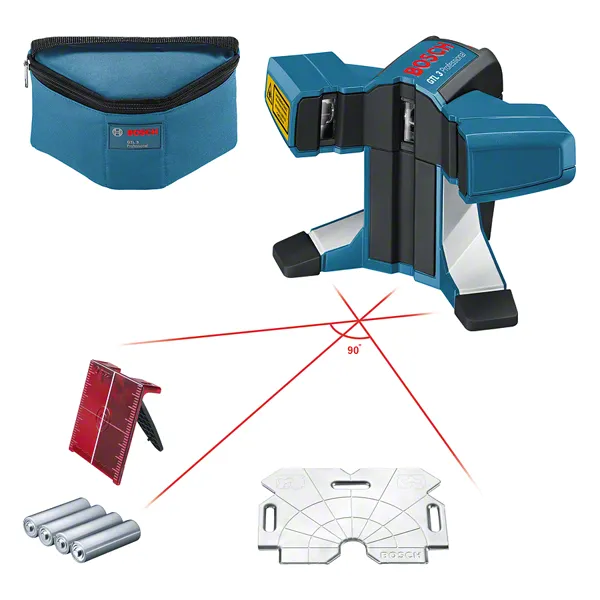

Included in this variant

  • Alignment disc
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
Our service promise for professionals.
Register now!

Technical data

The most important data

Laser diode 630 – 650 nm
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range* 20 m
Working range with target plate* 20 m
Angular accuracy (between 0 – 90° angle) ±0.2 mm/m* (*plus use-dependent deviation)
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 18 h in 2-line mode, 12 h in 3-line mode
Weight, approx.** 0.44 kg
Projection 3 lines

GTL 3

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
