Rotation lasers

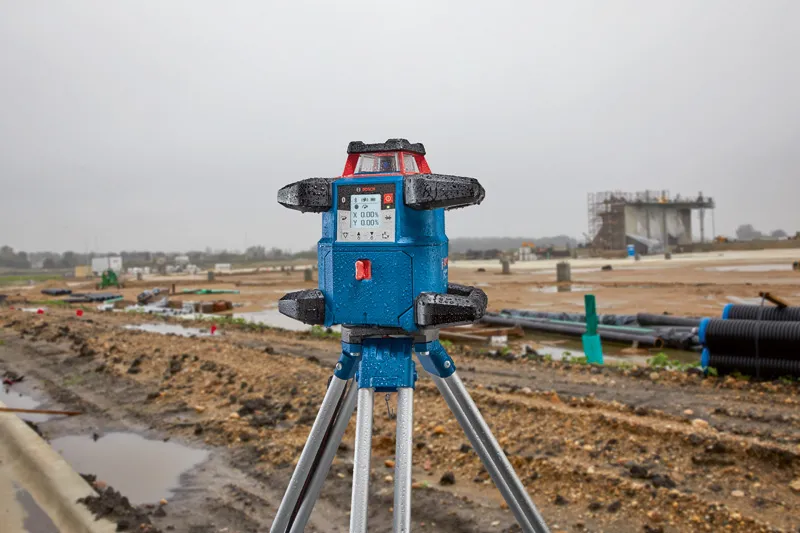

![Laser leveling tool on a tripod stands at a wet construction site.]( "GRL 600 CHV")

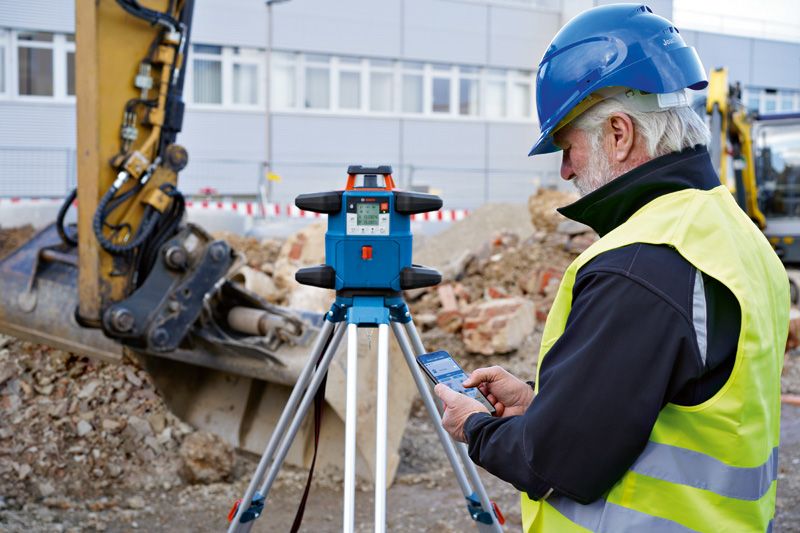

![A person wearing safety equipment operates a laser leveling tool at a construction site.]( "GRL 600 CHV")

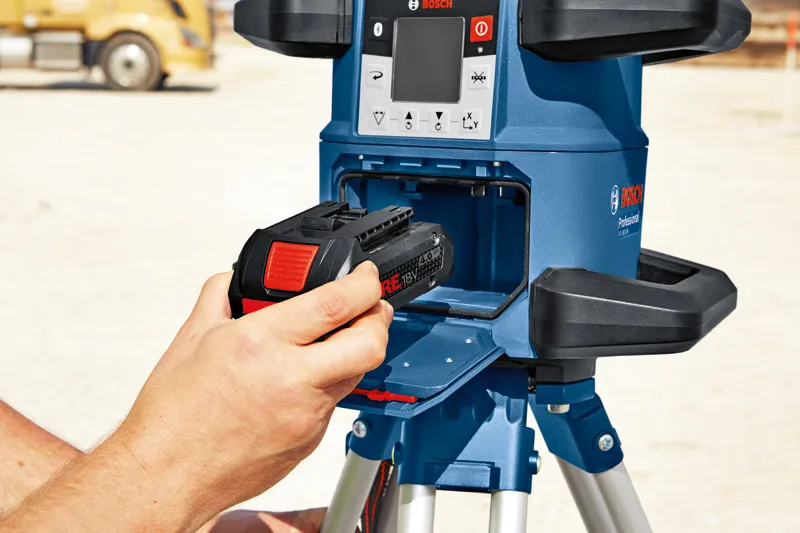

![Person inserting a battery into a laser leveling tool on a tripod outdoors.]( "GRL 600 CHV")

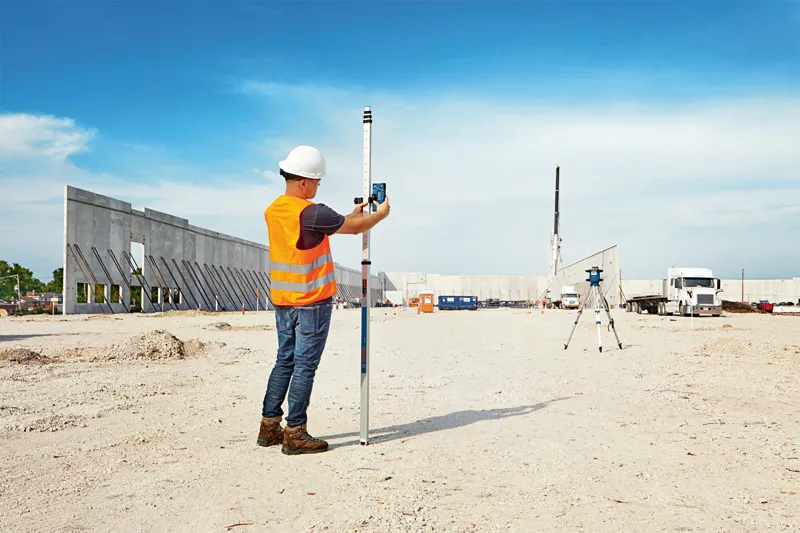

![A person wearing safety equipment uses a laser leveling tool on a construction site.]( "GRL 600 CHV")
![A person wearing safety equipment carries a case and tripod across a construction site.]( "GRL 600 CHV")

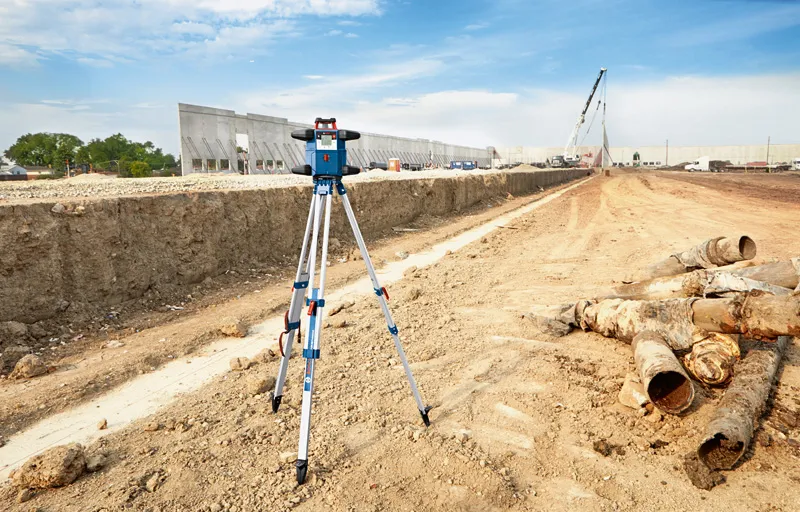

![Laser leveling tool set up on a tripod at a large construction site.]( "GRL 600 CHV")

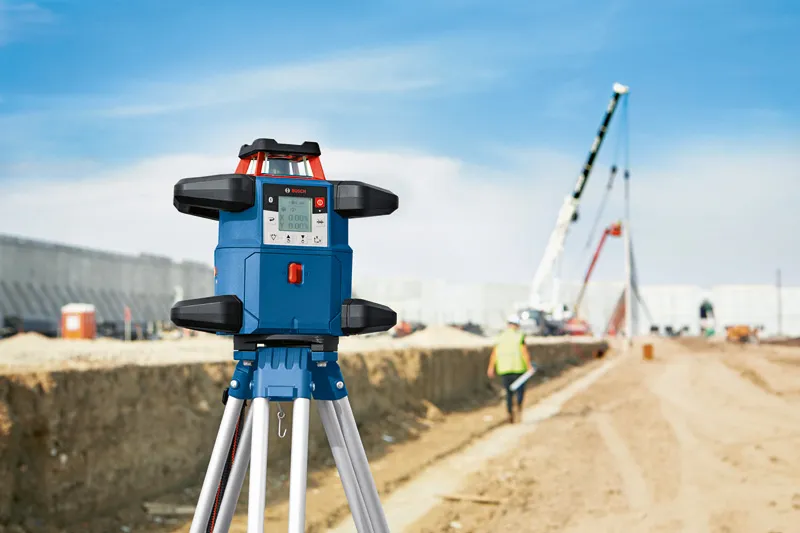

![Laser leveling tool set up on a tripod at a construction site, person wearing safety equipment nearby.]( "GRL 600 CHV")

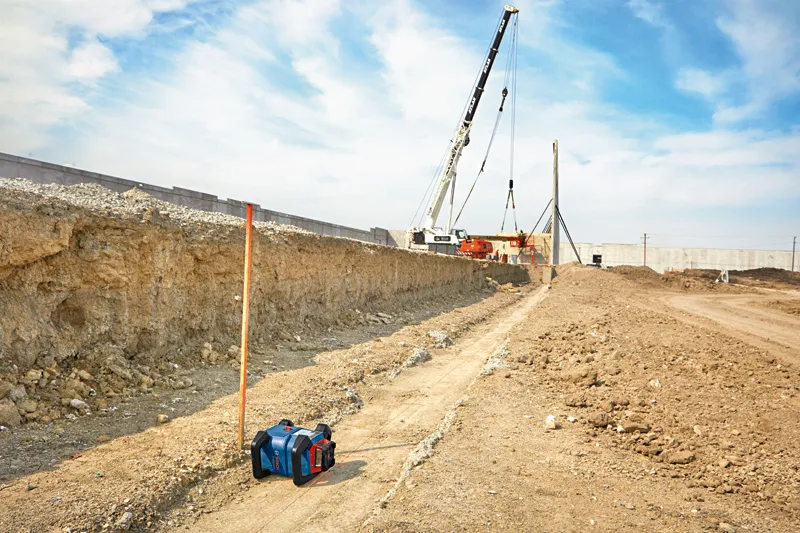

![Laser leveling tool set on a construction site with a crane lifting materials in the background.]( "GRL 600 CHV")

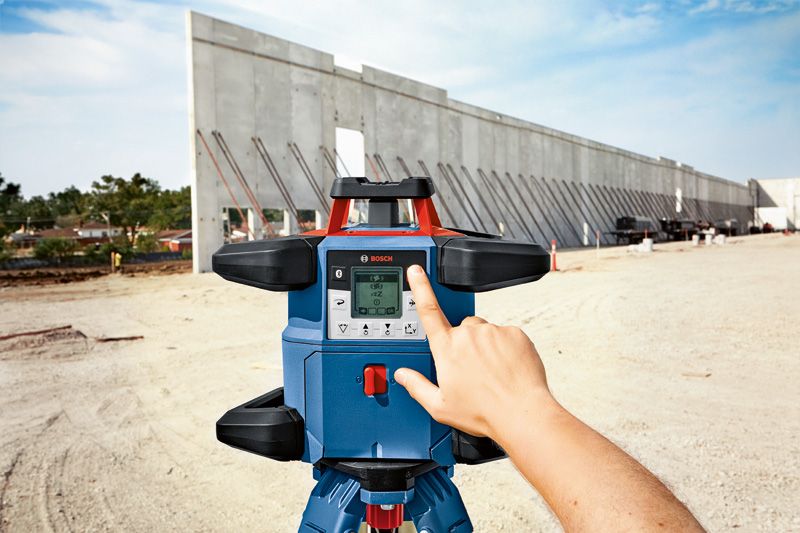

![Person operating a laser leveling tool at a construction site with large concrete panels.]( "GRL 600 CHV")

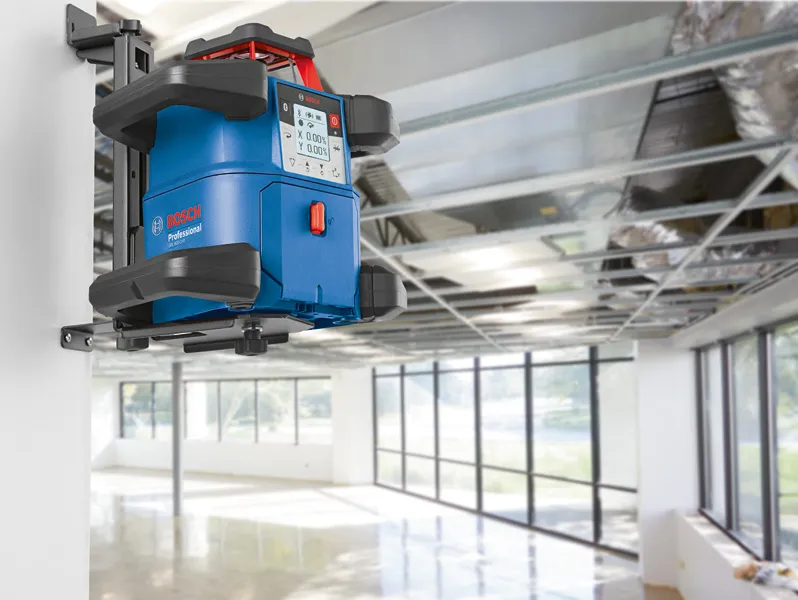

![Laser leveling tool mounted on a wall in a bright, unfinished room.]( "GRL 600 CHV")

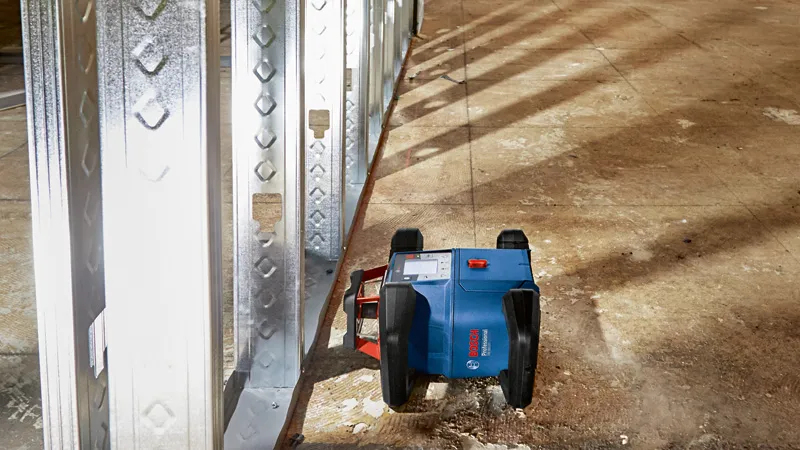

![Laser leveling tool projecting guidelines beside metal wall frames on a construction floor.]( "GRL 600 CHV")

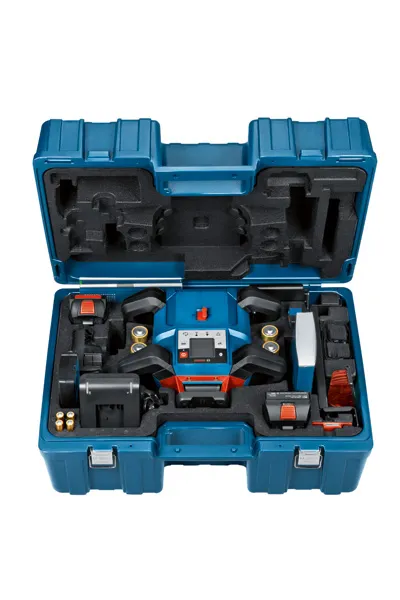

![Bosch GRL 600 CHV rotation laser, precise leveling tool kit.]( "GRL 600 CHV")

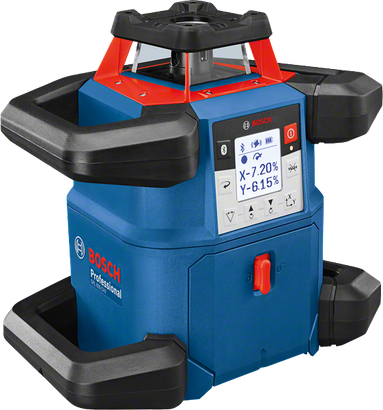

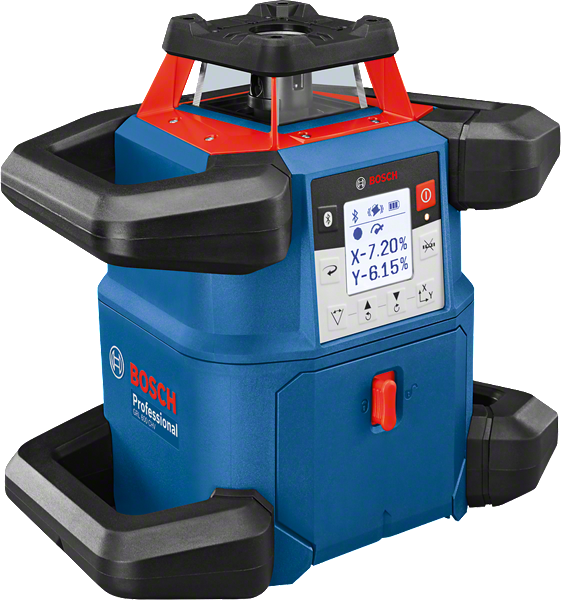

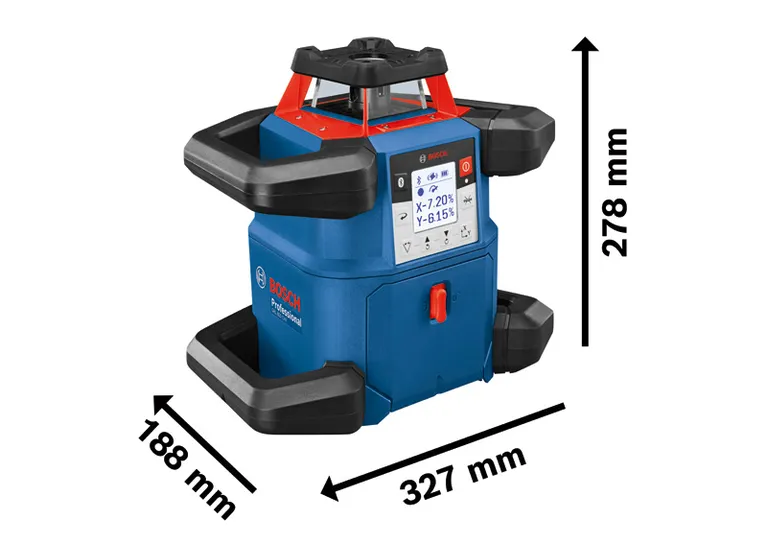

GRL 600 CHV Professional
Rotation Laser
Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs
- Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water
- Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time
- Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)
Functions & key features
in carrying case with 4 x battery (LR20), remote control
0 601 061 F40
GRL 600 CHV Professional
Your Selection
in carrying case with 4 x battery (LR20), remote control
Order number: 0 601 061 F40
Buy nowIncluded in this variant
-
Remote control RC 6 Professional
-
Laser receiver LR 60 ProfessionalOrder number: 3 601 K69 P40
-
Receiver bracket RB 60 Professional
-
Battery adapter BA 1 Professional
-
4 x 1.5 V LR6 battery (AA)
-
Wall mount WM 6 Professional
-
Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
-
4 x 1.5 V LR20 battery (D)
-
Laser target plate
-
Carrying case
Technical data
The most important data
Battery voltage
18.0 V
Laser diode
630 – 650 nm, < 1mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 50 °C
Laser class
2
Working range with receiver*
600 m (diameter)
Working range without receiver*
60 m (diameter)
Accuracy*
± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range
±8.5% (±5°)
Dust and splash protection
IP 68
Rotation speed
150/300/600 min-¹
Power supply
18 V Li-ion battery, 4 x D cell batteries
Operating time (max.)
60 h, 70 h
Tripod thread
2 x 5/8"
Projection
1 x 360° line
Compatible laser receivers
LR 60
Weight with 4.0 Ah battery*
4.3 kg
Weight with alkaline batteries*
4.6 kg
* You can find more information about the deviations in the following link:
GRL 600 CHV Professional: Further information
Product Highlights
Heavy duty, jobsite-proof – the robust GRL 600 CHV Professional endures even the harshest environments. Its sturdy design offers impact protection and has an IP68 rating against dust and water – including the battery compartment for highly flexible work in bad weather conditions. It provides convenient connectivity, enabling more focused work with less wasted time. Operating the tool is intuitive thanks to its screen and access to the levelling remote app that visualises all functions, including a dual slope setting, to save valuable time. This highly accurate laser has a long runtime, both with the 18V battery system and alkaline batteries included for continuous working.
Equipment & Application
Use this tool for exterior applications when determining cut-and-fill excavation work, concrete forms, landscaping, and façade work.
Additional Information
The GRL 600 CHV also features a high-quality receiver with a 125-mm reception area, a dual-sided display, and an offset feature in millimetres. Calibrating the tool is quick and easy – follow the step-by-step instructions via the intuitive app to save time and resources and ensure accurate results on every job. Use the handy 'mask mode' available in the app to avoid reflection and interference with other devices on the jobsite.
