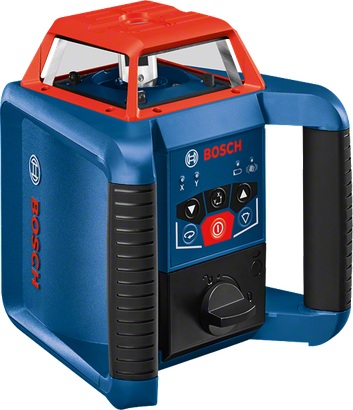

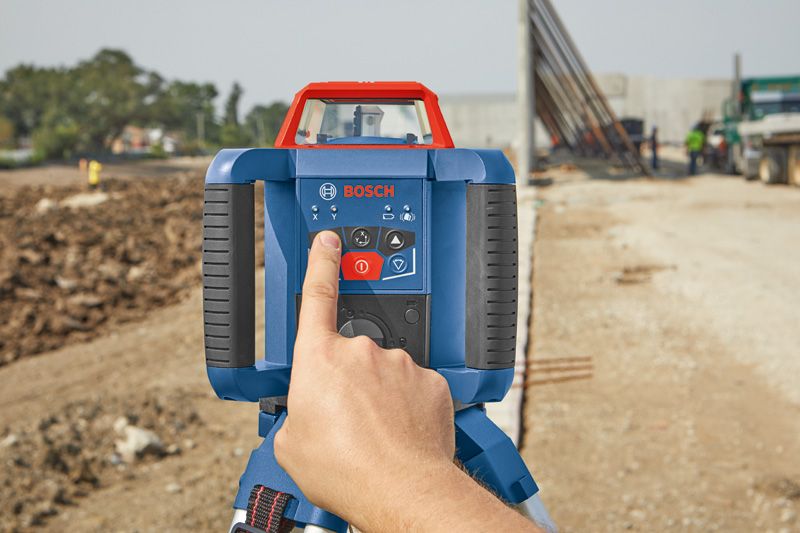

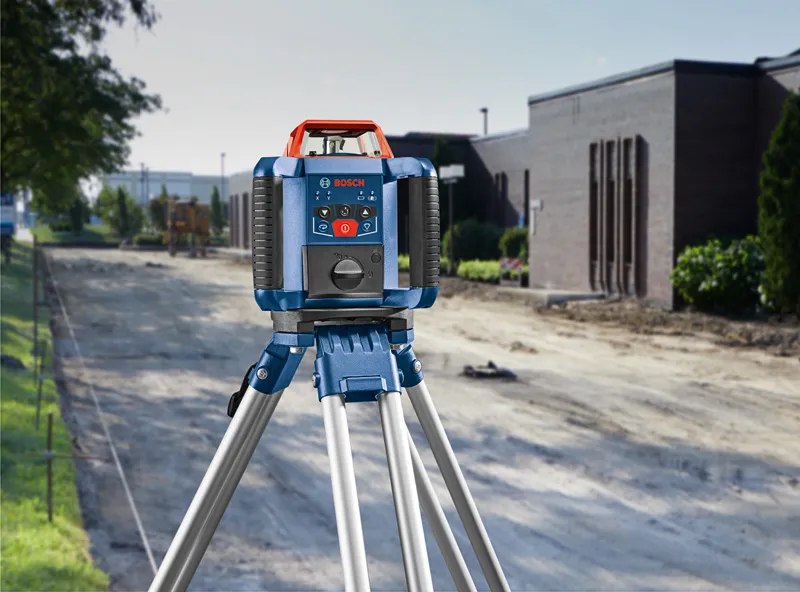

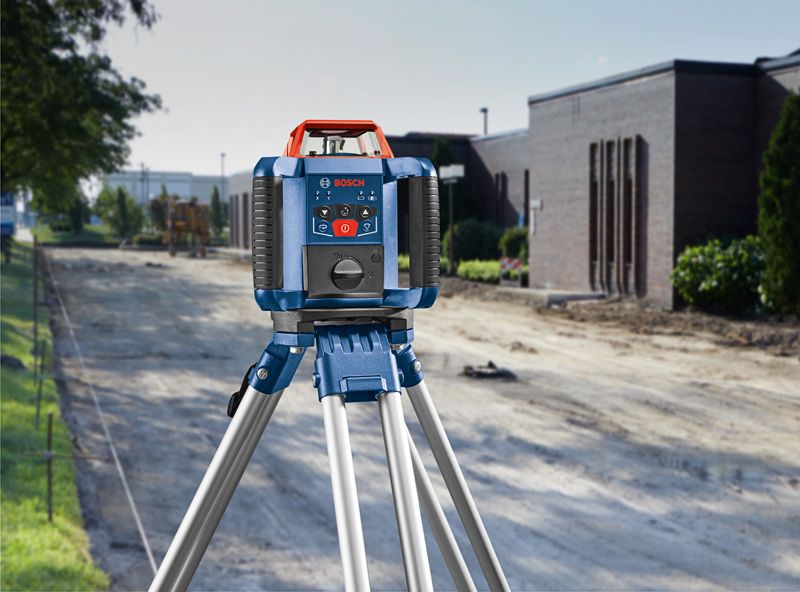

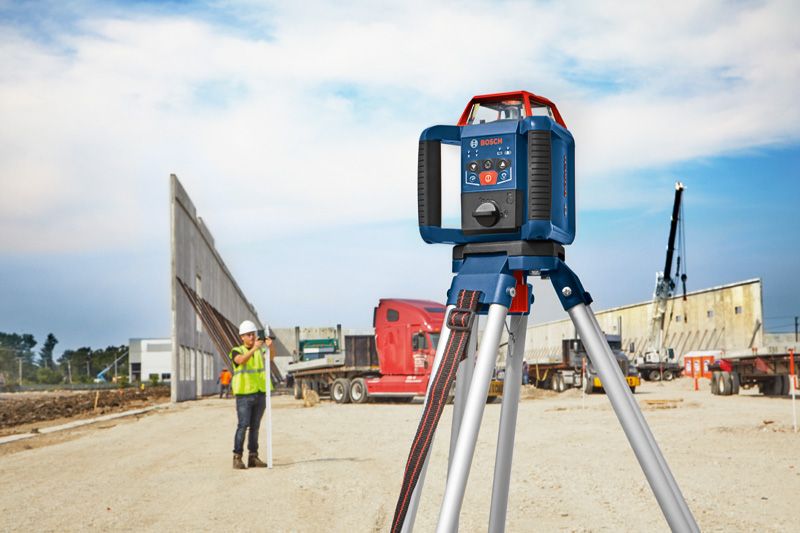

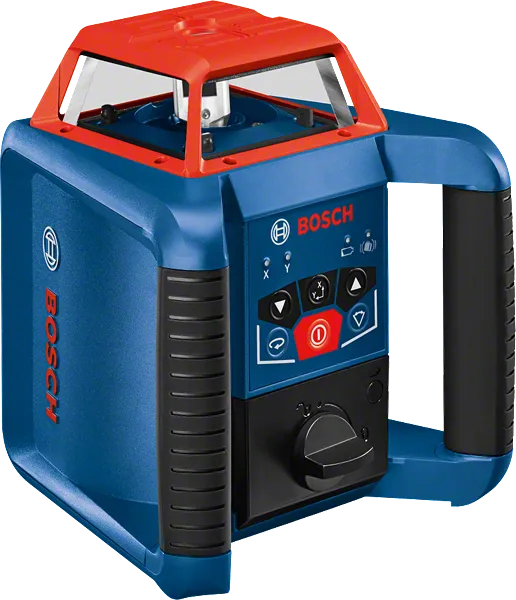

GRL 350 HV Professional
Rotation Laser
Rotational laser for horizontal and vertical application with manual dual slope
- Versatile - Horizontal and vertical manual dual slope function enable change in grade in two-axis application
- Flexible - Variable-speed and Scan-angle selection allow optimum usability at different lighting conditions
- Robust - IP 56 rated to protect against dust and water for tough jobsite conditions, with shock-warning function to alert error due to vibration
with 2 x battery (LR20), laser receiver
0 601 061 S40
GRL 350 HV Professional
Your Selection
with 2 x battery (LR20), laser receiver
Order number: 0 601 061 S40
Buy nowIncluded in this variant
-
Receiver bracket RB 30Order number: 2 610 A14 830
-
Universal mount WM 4 ProfessionalOrder number: 0 601 092 400
-
2 x 1.5 V LR20 battery (D)
-
Laser receiver LR 30 Professional
-
Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
-
Laser targetOrder number: 1 608 M00 70B
-
1 x 9 V block battery (6LR61)
Technical data
The most important data
Laser diode
630 – 650 nm, < 5mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
3R
Working range*
up to 60 m
Working range with receiver*
up to 350 m (Diameter)
Accuracy*
± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range
± 5° (8%)
Levelling time
30 s
Dust and splash protection
IP 56
Rotation speed
0/150/300/600 min−1
Power supply
2 x 1.5 V LR20 (D)
Operating time (max.)
30 h
Tripod thread
5/8"
Weight, approx.**
1.8 kg
Colour of laser line
red
Color of plumb points
red
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
