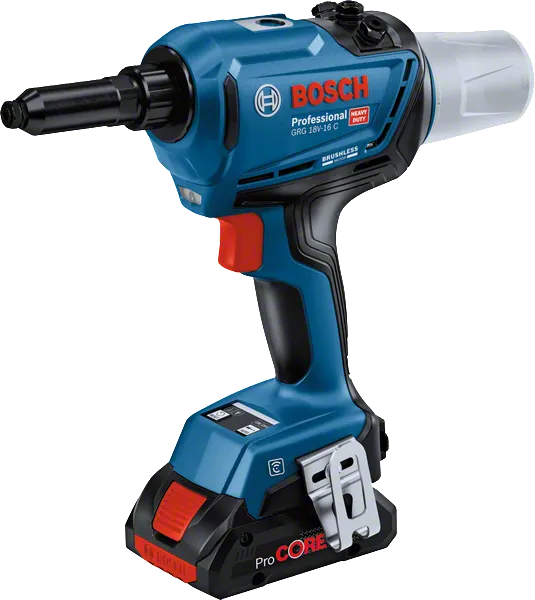

GRG 18V-16 C Professional

Cordless Rivet Gun

Order number 0.601.9K5.041

  • Cordless convenience ensures greater on-site mobility and lower set-up cost
  • As powerful and versatile as a pneumatic tool for 3 to 6.4 mm diameter rivets
  • Long battery runtime for pulling 1,000 rivets on a single charge
  • AUTO and MANUAL rivet function for personal preference during application
  • Connectivity enables preventative maintenance and less downtime
View more
AMPShare.

in L-BOXX 136 with 2 x battery GBA 18V 5.0Ah, quick charger 0 601 9K5 041

Select a variant

Your Selection

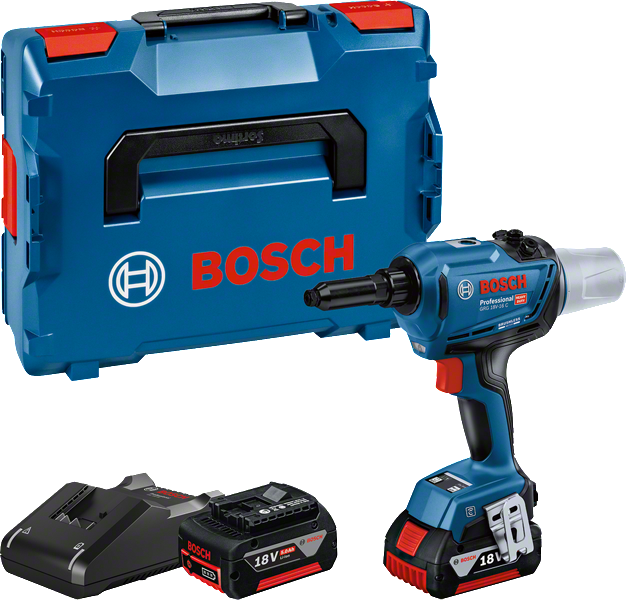

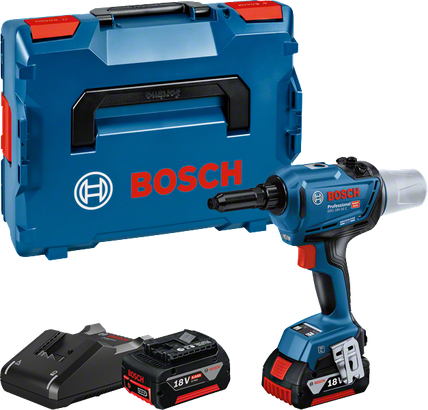

Bosch GRG 18V-16 C cordless rivet gun with case.
in L-BOXX 136 with 2 x battery GBA 18V 5.0Ah, quick charger

Order number: 0 601 9K5 041

Buy now

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • 2 x battery GBA 18V 5.0Ah
    Order number: 1 600 A00 1Z9
  • Quick charger GAL 18V-40 Professional
    Order number: 1 600 A01 9RN

Your Selection

Bosch GRG 18V-16 C cordless rivet gun.
in cardboard box

Order number: 0 601 9K5 000

Buy now

Included in this variant

  • Cardboard box
Professional 18V System.
Discover more!

Technical data

The most important data

Weight excl. battery*
1.6 kg
Pull force, max.
16,000 N
Stroke length
0 - 25 mm
Rivet diameter
3 - 6.4 mm
Tool dimensions
290 x 243 x 67 mm
Voltage
18 V

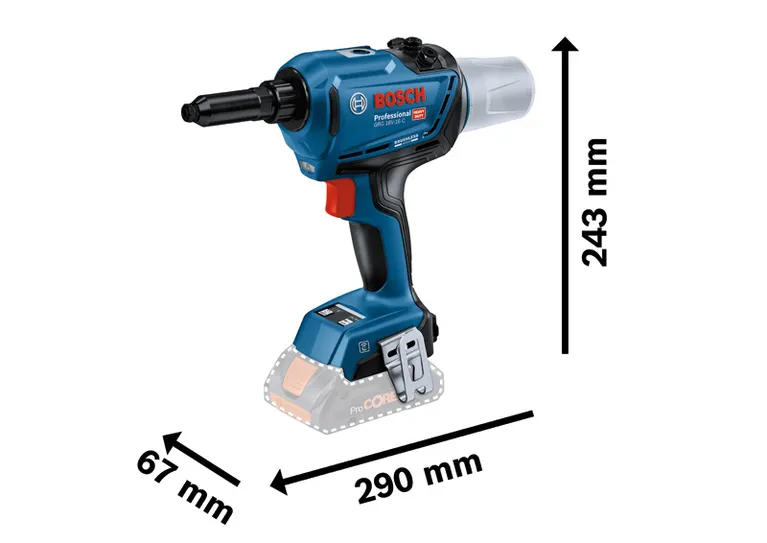

Bosch GRG 18V-16 C cordless rivet tool with dimensions.

* You can find more information about the deviations in the following link: Technical features of products

GRG 18V-16 C Professional: Further information

Product Highlights

The powerful, cordless GRG 18V-16 C Professional rivet gun offers unrestricted mobility with none of the cables and extra equipment that come with a pneumatic tool. With a simpler set-up and less maintenance, it is also more cost-effective. As strong as a pneumatic tool, this rivet gun easily pulls 3mm to 6.4mm diameter stainless steel rivets in heavy-duty applications – and just one battery charge is required to fasten over 1,000 rivets. Workers can opt for auto or manual function according to their personal preference. And for less downtime, connectivity with the Bosch App ensures that tool maintenance and production are kept on track.

Equipment & Application

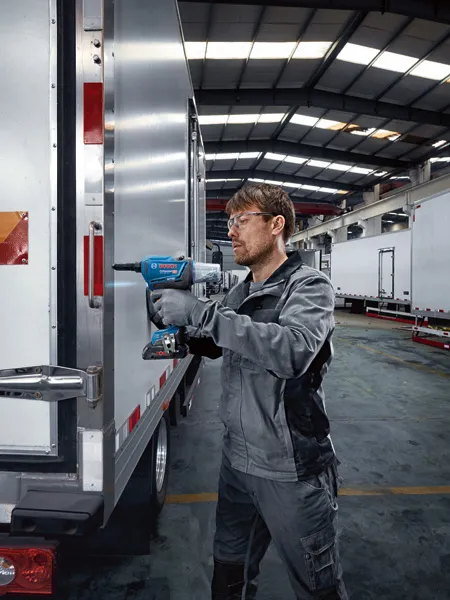

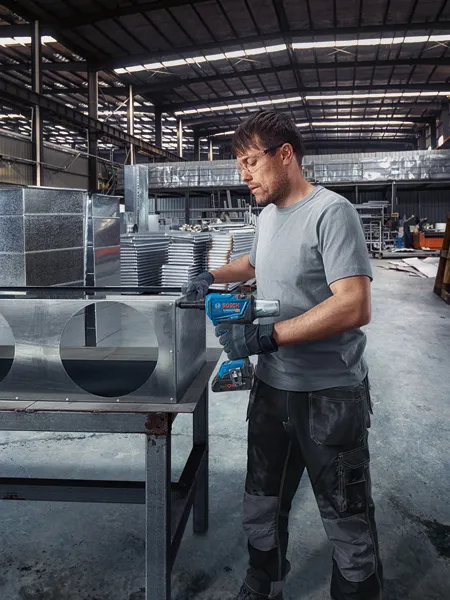

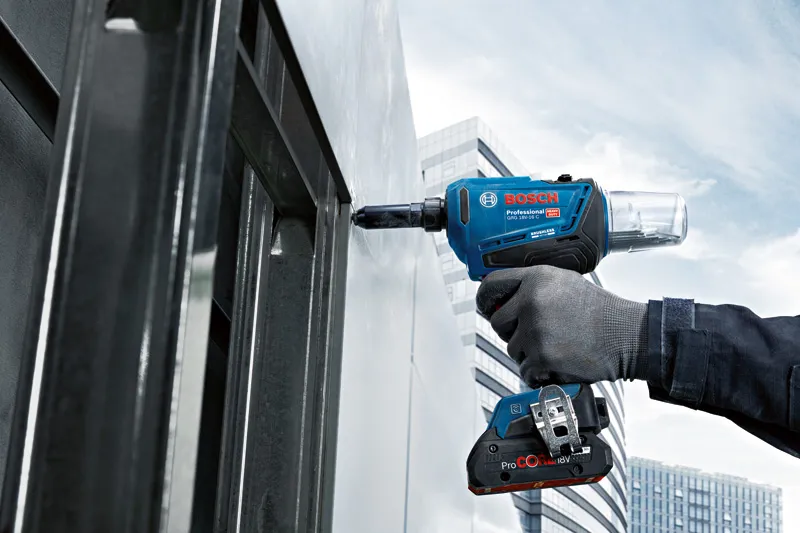

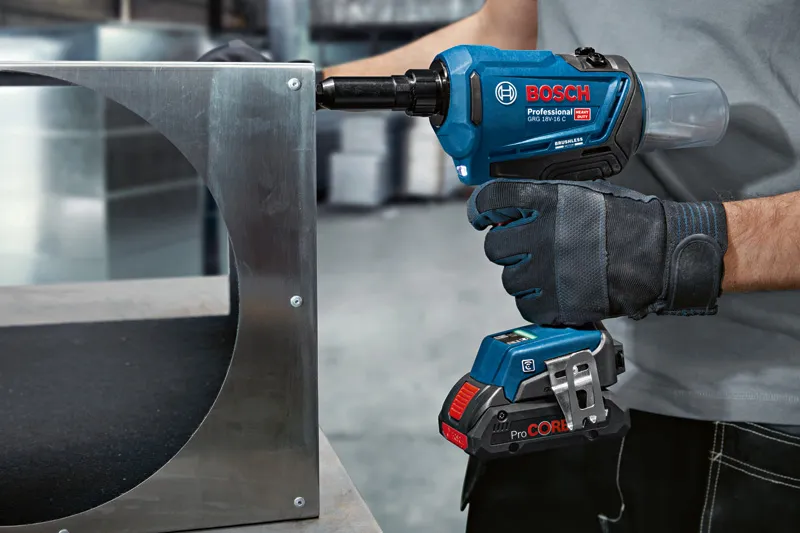

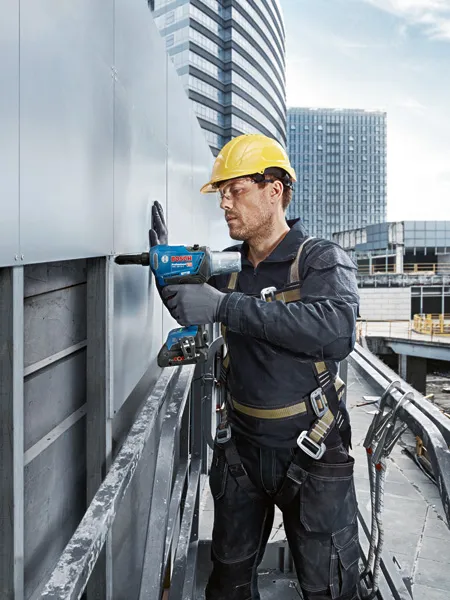

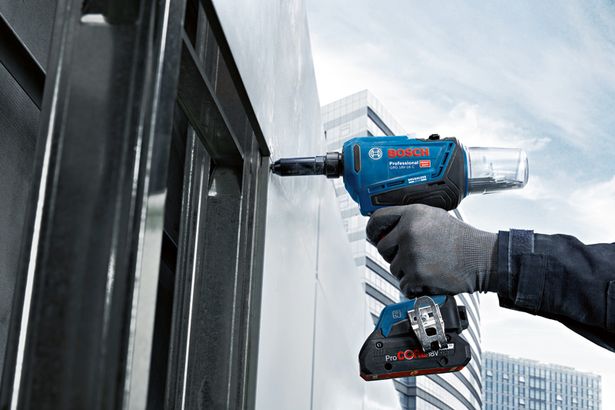

For flexibility and speed on OEM production, such as HVAC or automotive, as well as on construction and installation jobs, including façade work and roofing, this powerful rivet gun delivers top results. It pulls 3mm to 6.4mm diameter rivets in a variety of material combinations.

Additional Information

It comes with 4 nose pieces (3.0/3.2 mm, 4.0 mm, 4.8/5.0 mm, 6.4 mm), a wrench to easily change the nose pieces, a hanging ring, mandrel container, and a belt clip. It has a brushless motor and tool status indicator on the HMI display.
