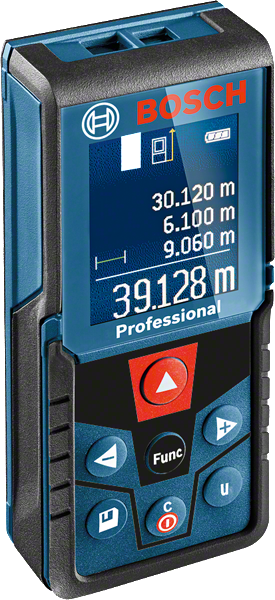

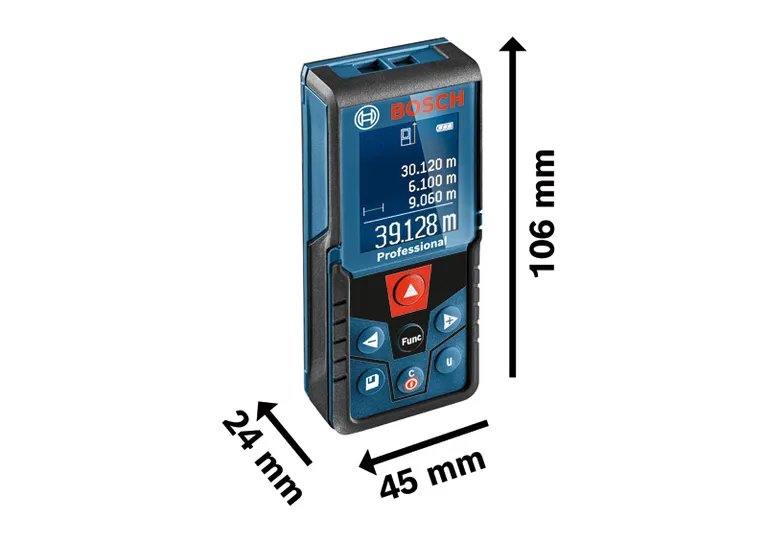

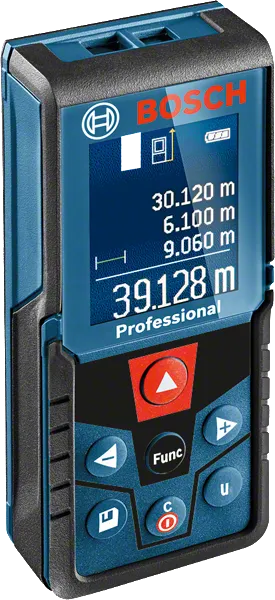

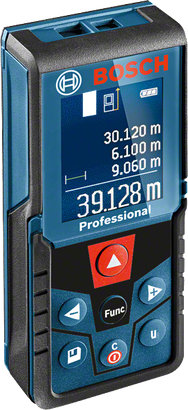

GLM 400 Professional
Laser Measure
Order number 0.601.072.RK0
- Dedicated conversion button for immediate unit change at one press
 - User-friendly human machine interface (HMI) for quick selection of measuring functions
 - Colour display technology for easy interpretation of essential information and measurements

                        with Manufacturer’s certificate

                        0 601 072 RK0

                GLM 400 Professional
Technical data
The most important data
                                Laser diode


                                635 nm, < 1 mW


                                Measurement range*


                                0.050 – 40.000 m


                                Laser class


                                2


                                Measurement accuracy, typical*


                                ± 1.5 mm s


                                Power supply


                                2 x 1.5 V LR03 (AAA)


                                Automatic deactivation


                                5 min


                                Weight, approx.*


                                0.1 kg


                                Units of measurement


                                m/cm, ft/inch


                                Dust and splash protection


                                IP 54


                                Tripod thread


                                1/4"


                                Laser colour


                                Red


                        * You can find more information about the deviations in the following link:
