Laser measures

GLM 100-25 C Professional

Laser Measure

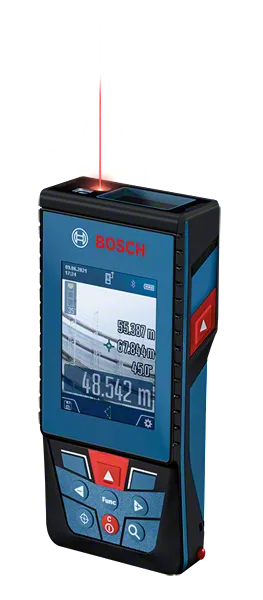

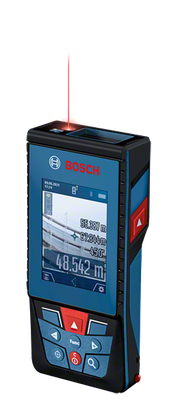

GLM 100-25 C

Precise laser measure for easy indoor and outdoor measuring and documenting

  • Accurate, 100-m laser measuring thanks to digital camera viewfinder with zoom function
  • Large, high-contrast IPS colour display with flip screen ensures optimal reading
  • Laser measure connects via Bluetooth for efficient data documentation

Functions & key features

 Iso-Norm-16331 1-Icon-positive
 Bosch MT Icon GLM 100C Range Target 0.05-100 m pos
Real time view
IP54 dust and splash water protection
Level Function 0 - 360°

Your Selection

  • with 3 x battery (AA), protective acc.
Show variant

Available in 1 onlineshop(s)

Buy now

with 3 x battery (AA), protective acc. 0 601 072 YK0

GLM 100-25 C Professional

Your Selection

GLM 100-25 C
with 3 x battery (AA), protective acc.

Order number: 0 601 072 YK0

Buy now

Included in this variant

  • Manufacturer’s certificate
  • Protective Bag
  • 3 x 1.5 V LR6 battery (AA)
Our service promise for professionals.
Register now!

Technical data

The most important data

Laser diode 650 nm, < 1 mW
Measurement range* 0.08 – 100.00 m
Laser class 2
Measurement accuracy, typical* ± 1.5 mmᵈ
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical)* ± 0.2°ᶜ
Measurement time, typical < 0.5 s
Measurement time, max. 4 s
Power supply 3 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Weight, approx.** 0.23 kg
Units of measurement m/cm, ft/inch
Memory capacity (values) 50
Dust and splash protection IP 54
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red

GLM 100-25 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᶜ At >0°C, <100°C, for other surface temperatures, see User Manual

ᵈ Plus deviations depending on application and distance, see User Manual

GLM 100-25 C Professional: Further information

Product Highlights

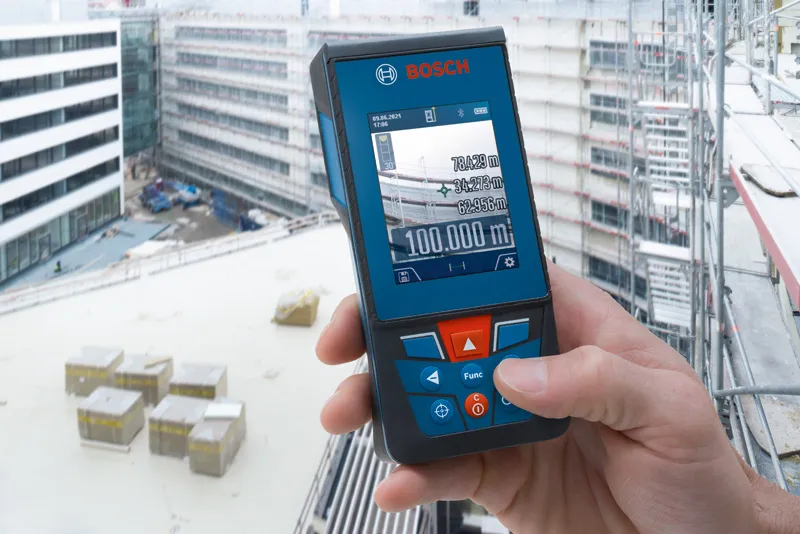

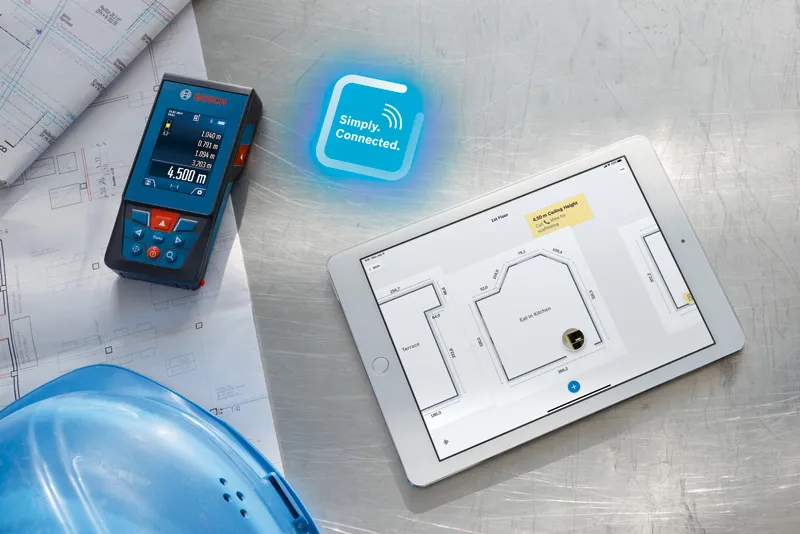

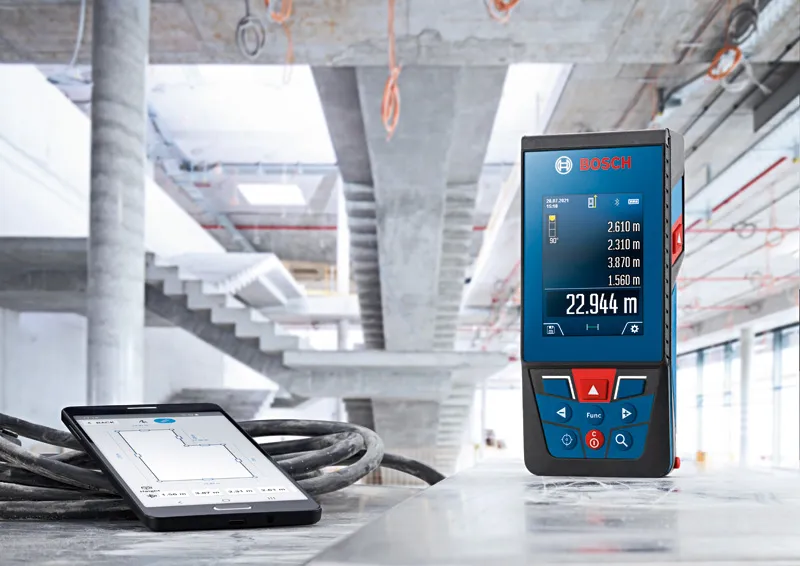

This professional outdoor laser measure features a digital camera viewfinder with a zoom function that precisely measures distances up to 100 m. The camera picture and measurements are easy to see on the big, high-contrast, 2.8” IPS colour display, which rotates for portrait or landscape view. For convenient documentation, measurement results can be transferred via Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution for tough job sites thanks to IP54 dust and water protection, and scratch-resistant display glass.

Equipment & Application

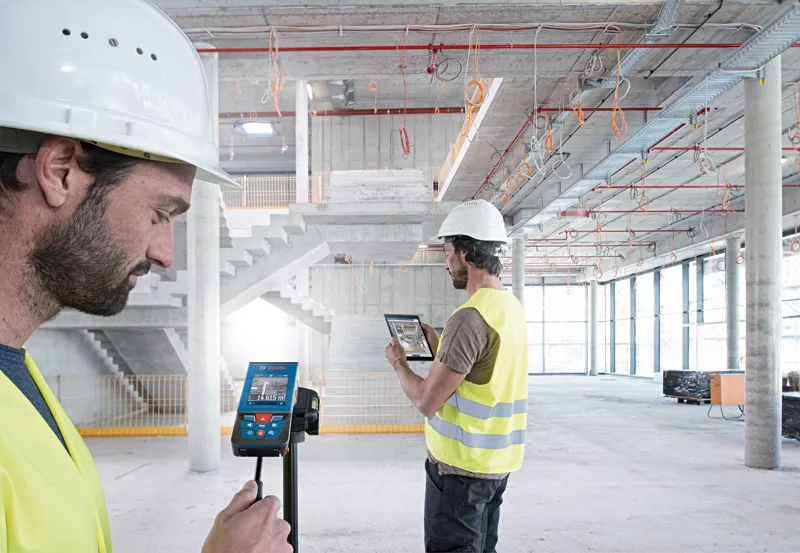

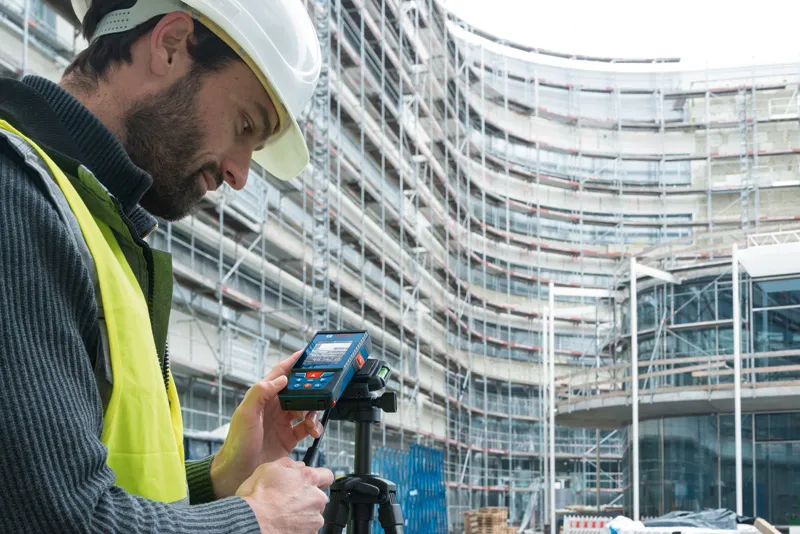

Architects, construction managers, and electricians will appreciate the outdoor capability, easy readability, and convenient documentation of this robust laser measure.

Additional Information

The GLM 100-25 C Professional has a user-friendly HMI interface with a click wheel for access to all features. A useful help option displays detailed images of each measuring function for easy comprehension.
