Line lasers

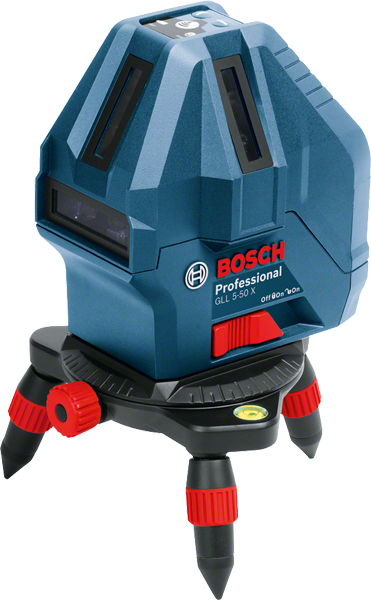

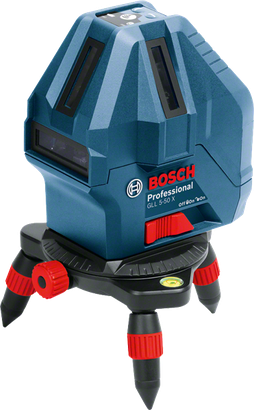

GLL 5-50 X Professional
Line Laser
Better line visibility for increased work efficiency in everyday interior levelling jobs
- Greater Visibility - On front cross for better working performance
- Compact - Light and easy-to-carry
- Robust - Thanks to the highly sophisticated Bosch pendulum precision system (PPS) which further enhances tool protection and levelling accuracy
Your Selection
- in carrying bag with 4 x battery (AA)
Available in 1 onlineshop(s)
Buy now
in carrying bag with 4 x battery (AA)
0 601 063 N80
GLL 5-50 X Professional
Your Selection
in carrying bag with 4 x battery (AA)
Order number: 0 601 063 N80
Buy nowIncluded in this variant
-
1 x shoulder strapOrder number: 2 608 000 706
-
4 x 1.5 V LR6 battery (AA)
-
Carrying bag
Technical data
The most important data |
|
|---|---|
| Laser diode | 630 – 650 nm, < 1mW |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | 15 m |
| Working range with receiver* | 50 m |
| Accuracy* | Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max.* | 5 m (bottom) |
| Self-levelling range | ± 3° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 24 h |
| Tripod thread | 5/8" |
| Weight, approx.** | 0.5 kg |
| Colour of laser line | red |
| Color of plumb points | red |
| Plumb point accuracy*** | ± 0.7 mm/m* (*plus use-dependent deviation) |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
