Line lasers
![GLL 3-80 CG]( "GLL 3-80 CG")
![GLL 3-80 CG]( "GLL 3-80 CG")

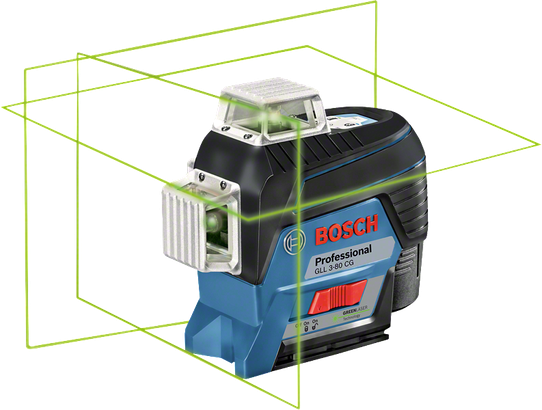

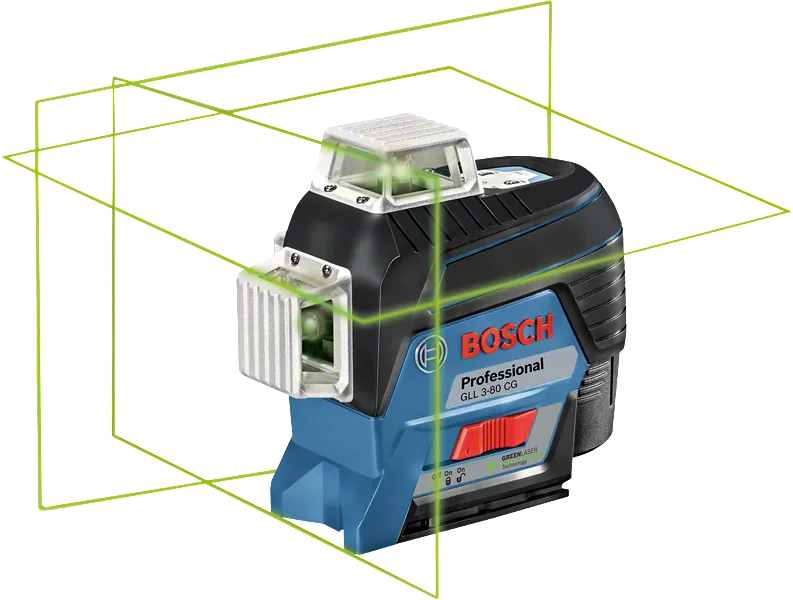

GLL 3-80 CG Professional
Line Laser
Green supreme visibility in 3 x 360°. Simply connected.
- Up to four times better visibility due to the green laser lines
- Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool
- High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool
Functions & key features
in carrying case with 4 x battery (AA), accessory set
0 601 063 U80
GLL 3-80 CG Professional
Your Selection
in carrying case with 4 x battery (AA), accessory set
Order number: 0 601 063 U80
Buy nowIncluded in this variant
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
ClampOrder number: 1 609 B00 839
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Universal Holder BM 1 ProfessionalOrder number: 0 601 015 A00
-
Laser target plate
-
Carrying case
Technical data
The most important data
Laser diode
500 – 540 nm, < 10 mW
Operating temperature
-10 – 40 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range*
30 m
Working range without receiver*
30 m
Accuracy*
± 0.2 mm/mᵃ/**
Self-levelling range
± 4°
Levelling time
4 s
Dust and splash protection
IP 54
Power supply
12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.)
6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread
1/4", 5/8"
Weight, approx.**
0.9 kg
Colour of laser line
green
Projection
3 x 360° line

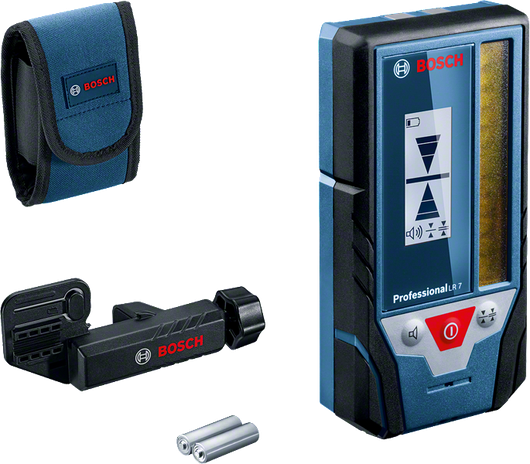

Compatible laser receivers
LR 7
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
