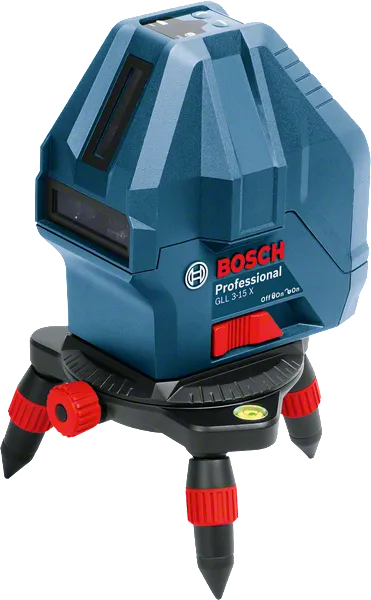

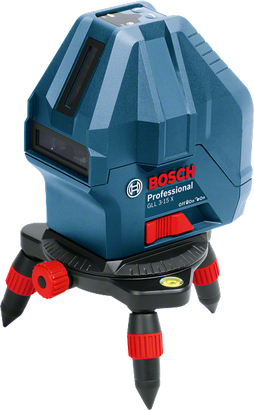

Line Laser
GLL 3-15 X Professional

in carrying bag

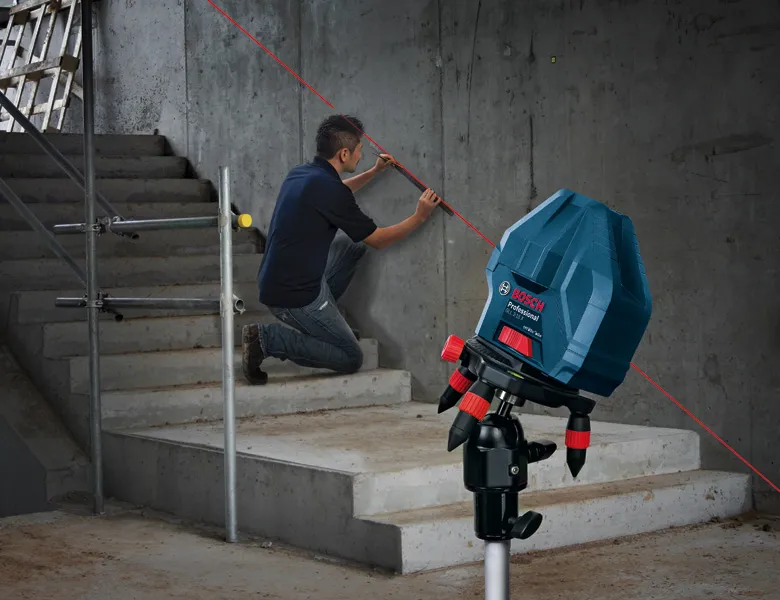

For easy decorative interior fitting applications

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

Laser diode 635 – 650 nm
Operating temperature -10 – 45°C
Storage temperature -20 – 70°C
Laser class 2
Working range 15 m
Accuracy ± 0.2 mm/m
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 3°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 24 h
Tripod thread 5/8"
Weight, approx. 0.72 kg
Colour of laser line red
Projection 3 lines + 1 plumb point

Advantages

For easy decorative interior fitting applications

  • Maximum precision thanks to the Bosch Pendulum Precision System
  • Projection of a vertical and a horizontal line
  • Detachable, 360° rotating platform with bubble vial and fine adjustment

Functions

Working range Range of up to 15 m
Self Levelling 3° Self-levelling ± 3°
Levelling accuracy 0.2 mm Levelling accuracy ± 0.2 mm/m
IP protection 54 Dust and splash protection IP54
Pendulum Prec. System Precision pendulum system consists of high-precision, hardened shaped parts and optics with shock absorber
Intell. Current Management Intelligent current management helps to monitor the laser diode temperature and to maximise laser visibility without overheating
Detach. Rotating Platform Rotating mini tripod makes fine positioning easier

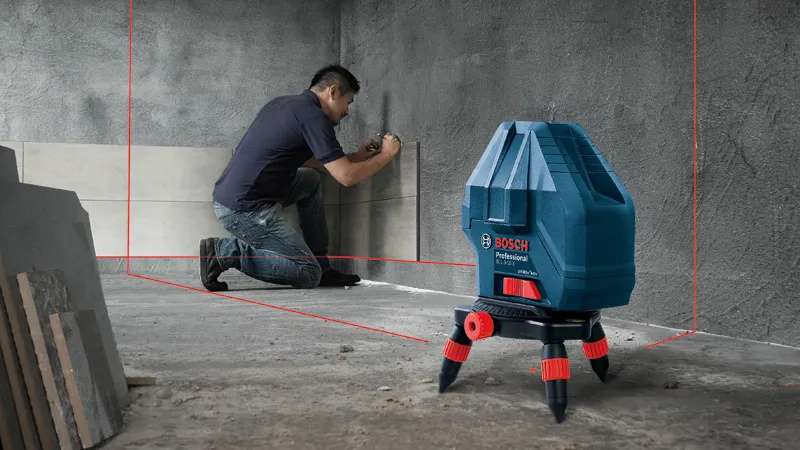

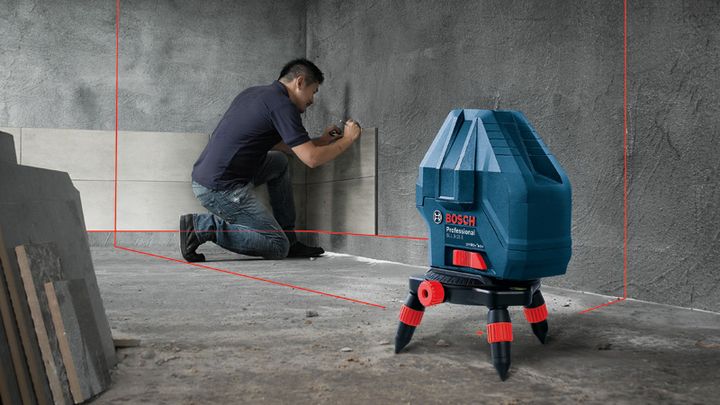

Laser scheme packaging Accurate alignment due to one horizontal and two vertical laser lines

Prices / Package contents


in carrying bag

Order number: 0 601 063 M80

Selected version

Price includes:

  • Carrying bag
