Measuring technology

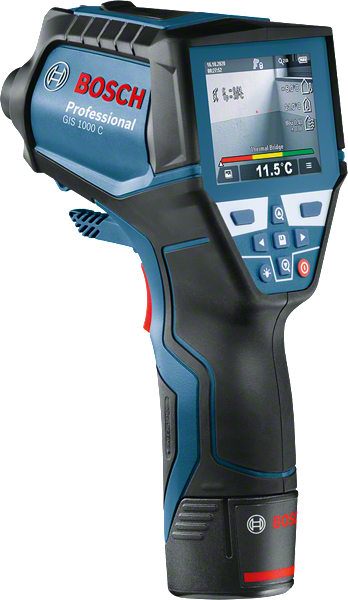

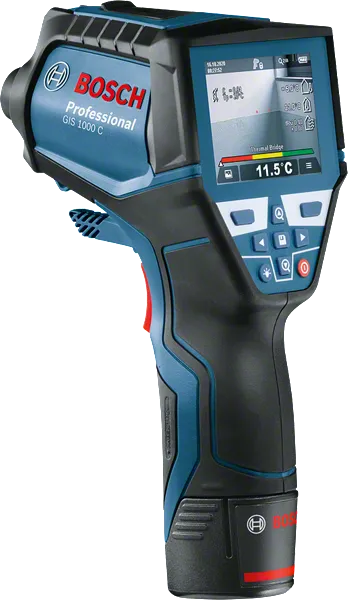

GIS 1000 C Professional

Thermo Detector

GIS 1000 C
GIS 1000 C

The all-round thermo detector for precise and versatile measurements

  • Integrated camera instantly shows and documents measured values in photos
  • Practical data transfer and storage via Bosch ThermalOn app or USB
  • Precise results due to five different modes covering all applications

Functions & key features

IR measurement range -40 °C to +1000 °C
Temperature probe interface type K
Measuring accuracy of IR ± 1.0 °C plus use-dependent deviation
Optics Ratio of meas. distance: Meas. spot
Measuring accuracy of relative humidity ± 2 % plus use-dependent deviation

Your Selection

  • in carrying bag with 4 x battery (AA), adapter
Show variant

Currently not available online

Find a local dealer

in carrying bag with 4 x battery (AA), adapter 0 601 083 3K1

GIS 1000 C Professional

Your Selection

GIS 1000 C
in carrying bag with 4 x battery (AA), adapter

Order number: 0 601 083 3K1

Find a local dealer

Included in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • Micro USB cable
  • 4 x 1.5 V LR6 battery (AA)
  • Carrying bag
  • Quick-start card
Our service promise for professionals.
Register now!

Technical data

The most important data

Battery voltage 12.0 V
Measurement range* -40 °C … +1000 °C
Measuring accuracy of IR* ± 1.0 °Cᵇ
Optics (Ratio of meas. distance : meas. spot) 50:1
Resolution 0.1 °C
Measuring accuracy of relative humidity* ± 2%ᶜ
Laser diode Laser class 2, 635 nm
Frame buffer (number of images) >200
Memory type Internal memory
File format of image .jpg
Data transfer MicroUSB, Bluetooth™ Smart
Shock protection 1 m

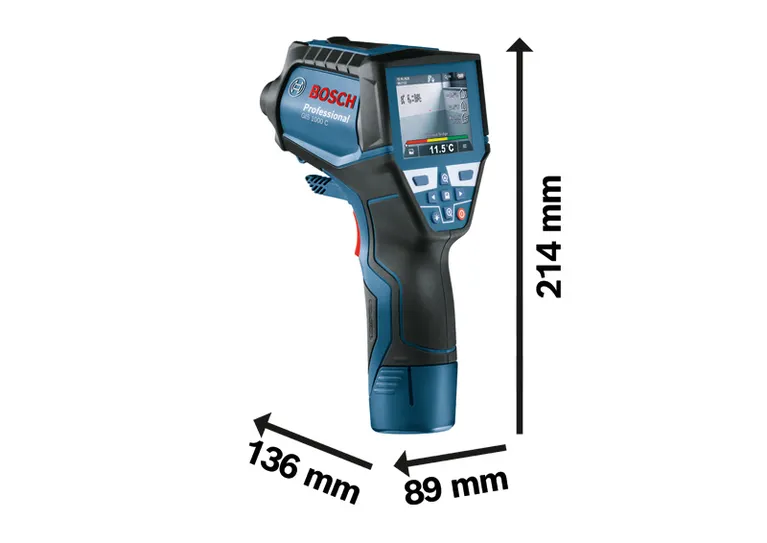

Weight** 0.56 kg
Display type TFT LCD
Size of display 2,8"
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Working range* 0.1 – 5 m

GIS 1000 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

ᶜ At >0°C, <100°C, for other surface temperatures, see User Manual

GIS 1000 C Professional: Further information

Product Highlights

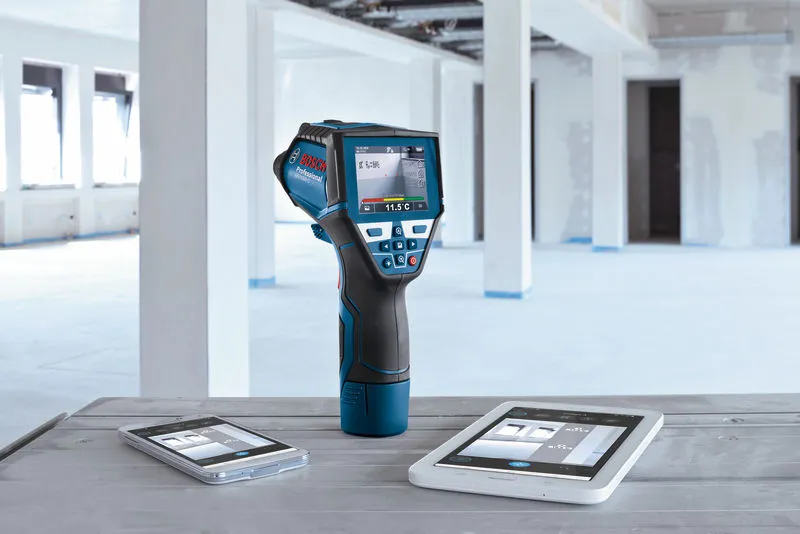

The thermo detector GIS 1000 C Professional is the swift solution for precise reading and documentation of temperatures and relative humidity. While recording measurements, the device’s integrated camera conveniently captures images for instant display with the relevant values. Detailed data is quickly documented and can be shared to remote devices thanks to the Bosch ThermalOn app via Bluetooth® connection. The thermo detector delivers a temperature recording, offering professionals five different modes for complex surface and contact temperatures (with integrated K-type functionality), dew point and thermal bridge calculations, and a user mode for custom values.

Equipment & Application

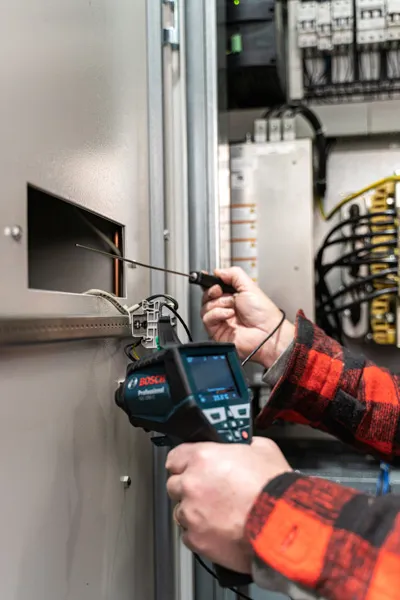

Professionals can use the thermo detector in a range of applications, from determining mould risk to checking thermal bridges, as well as for accurate contact measurement of reflective surfaces, liquids, and direct air temperature.

Additional Information

Along with measuring surface and contact temperatures, the GIS 1000 C Professional´s ambient sensor also quickly monitors surrounding conditions for precise measurement of room temperature and relative humidity, enabling an even wider range of applications. A straightforward user interface allows intuitive operation and delivers high-accuracy results on a wide measurement range. The GIS 1000 C Professional is not suitable for medical purposes.
