Digital Inclinometer
GIM 60 L Professional

with 4 x battery (AAA), Protective Bag

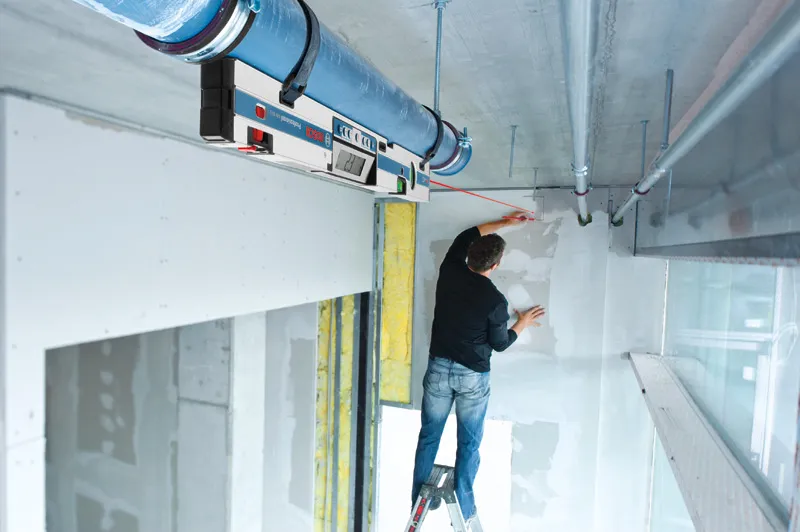

Laser-accurate incline transfer over longer distances

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!

Technical data

The most important data

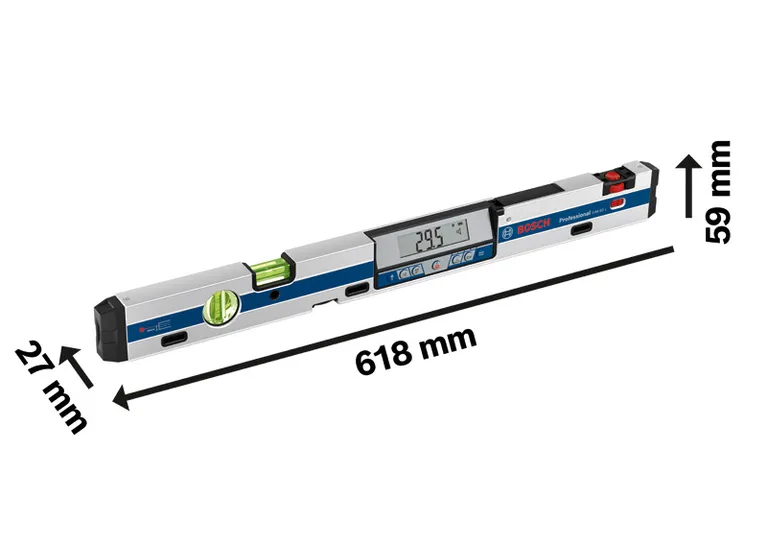

Length 60 cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.1°
Working range (laser) 30 m
Weight, approx. 0.91 kg
Laser type 635 nm, < 1 mW
Laser range 30 m
Laser class 2
Levelling accuracy of laser ± 0,5 mm/m
Units of measurement °, %, mm/m
Tripod thread 1/4"

Advantages

Laser-accurate incline transfer over longer distances

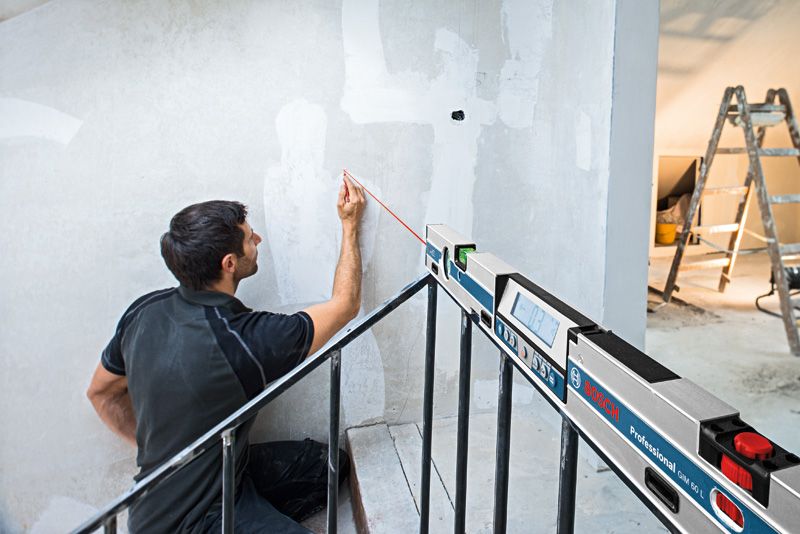

  • Integrated point laser for incline measurement up to a distance of 30 m
  • Strong magnets and two straps for securely fastening the instrument to workpieces

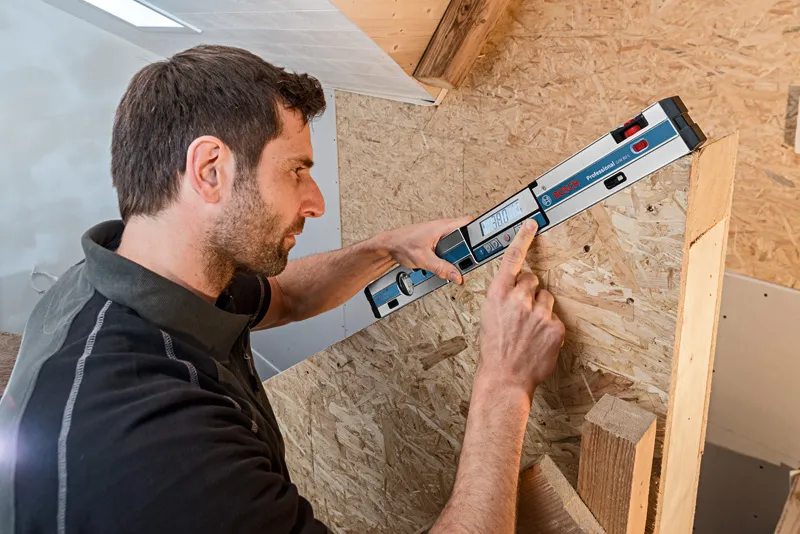

  • Incline mechanism for fine adjustment on uneven surfaces

Functions

Laser class 2 Laser class for measuring tools.
Magnetic Magnets for mounting on magnetic surfaces
Levelling mechanism Levelling mechanism
Securing straps Securing straps for safe mounting on workpieces
Hold and Copy Hold/Copy function
Measuring range of angles 0°-360° Angle measuring range 0°-360°
IP protection 54 Dust and splash protection IP54
Measuring accuracy of laser ± 0.5 mm/m Measuring accuracy ± 0.5 mm/m
Measuring range of laser max. 30 m Measuring range maximum 30 m

Prices / Package contents


with 4 x battery (AAA), Protective Bag

Order number: 0 601 076 900

Selected version

Price includes:

  • Protective Bag
  • 4 x 1.5 V LR03 battery (AAA)
