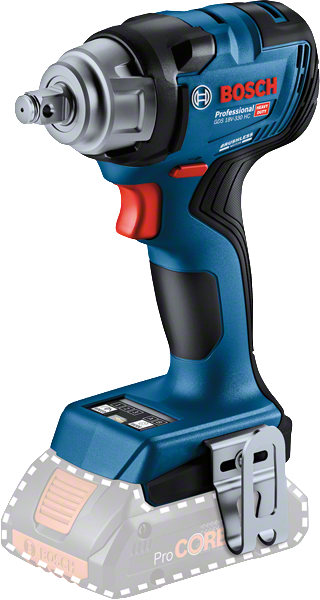

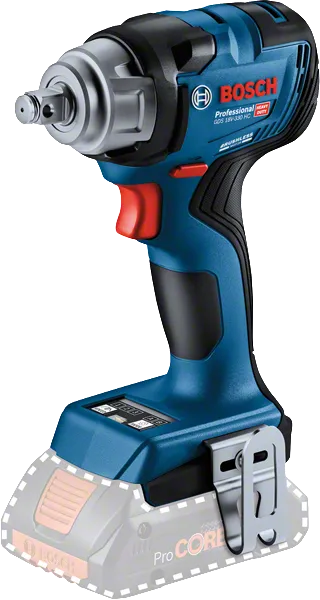

GDS 18V-330 HC Professional

Cordless Impact Wrench

GDS 18V-330 HC
GDS 18V-330 HC

Compact and lightweight impact wrench with adjustable modes for multi-purpose use

  • Two default screw modes for multi-purpose use. Each mode can be adjusted and individualised via the Bosch Toolbox App
  • Powerful 330 Nm tightening and 560 Nm breakaway torque performance
  • Versatile three-speed/torque settings for more flexibility and control

Functions & key features

1/2" external square tool holder
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
 Higher work efficiency through adjustable modes

Your Selection

  • in cardboard box
Show variant Find a local dealer

in cardboard box 0 601 9L5 000

GDS 18V-330 HC Professional

Your Selection

GDS 18V-330 HC
in cardboard box

Order number: 0 601 9L5 000

Find a local dealer

Included in this variant

  • Cardboard box
Professional 18V System.
Discover more!

Technical data

The most important data

Torque adjustment range, min./max., 1st level 0/200 Nm
Torque adjustment range, min./max., 2nd level 0/260 Nm
Torque adjustment range, min./max., 3rd level 0/330 Nm
No-load speed* 0-2,800 rpm
No-load speed (1st level)* 0-1,200 rpm
No-load speed (2nd level)* 0-1,900 rpm
No-load speed (3rd level)* 0-2,800 rpm
Weight excl. battery* 1.2 kg
Torque, max.* 330 Nm
Impact rate 2,800 bpm
Impact rate (1st level)* 0-2,400 bpm
Impact rate (2nd level)* 0-3,100 bpm
Impact rate (3rd level)* 0-3,800 bpm
Battery voltage 18.0 V
Tool holder 1/2" square friction ring and thru hole
Breakaway torque, max. 560 Nm
Packaging dimensions (width x length x height) 224 x 234 x 94 mm
Show more
GDS 18V-330 HC

* You can find more information about the deviations in the following link: Technical features of products

GDS 18V-330 HC Professional: Further information

Product Highlights

The compact and lightweight GDS 18V-330 HC Professional cordless impact wrench makes work easier. Its two default modes on the user interface, metal bolt/nut (A) and wood screw (B), ensure controlled application to prevent broken screwheads and the loss of metal bolts or nuts by slowing down or shutting off the impact wrench. Each mode can be adjusted conveniently to a specific application via the Bosch Toolbox App. 330 Nm tightening and 560 Nm breakaway torque deliver top performance. Greater flexibility and control are provided thanks to three different speed/torque settings.

Equipment & Application

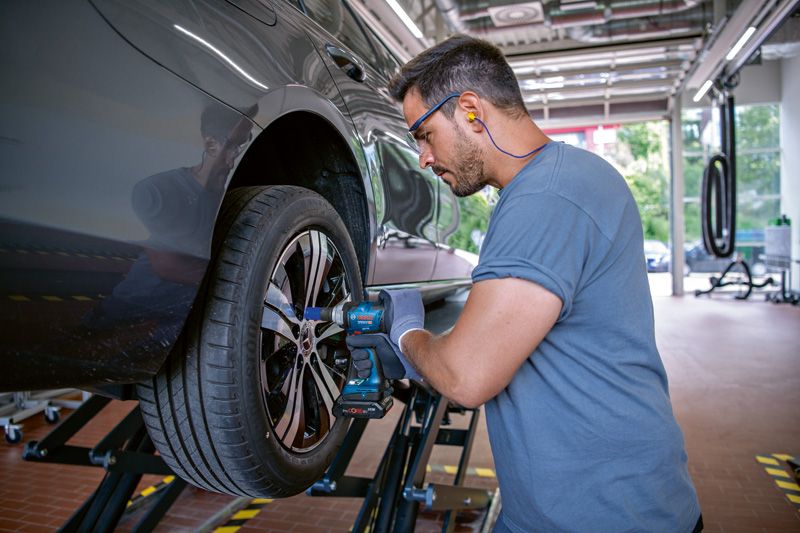

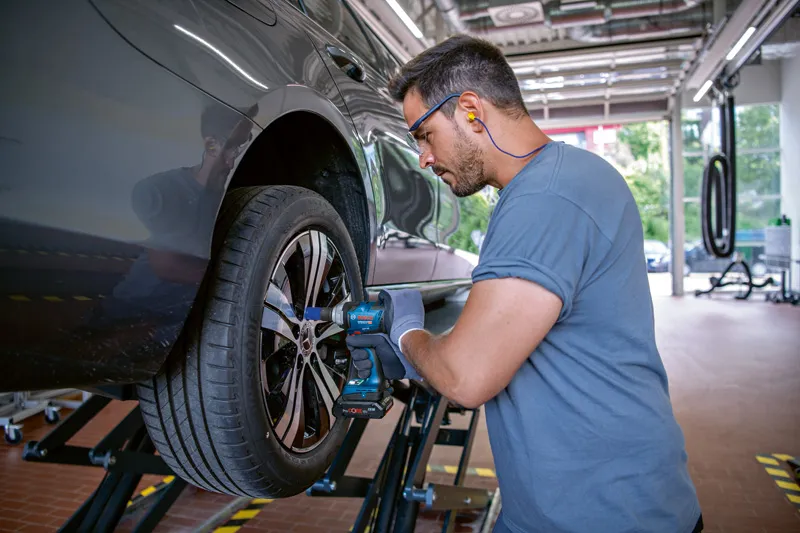

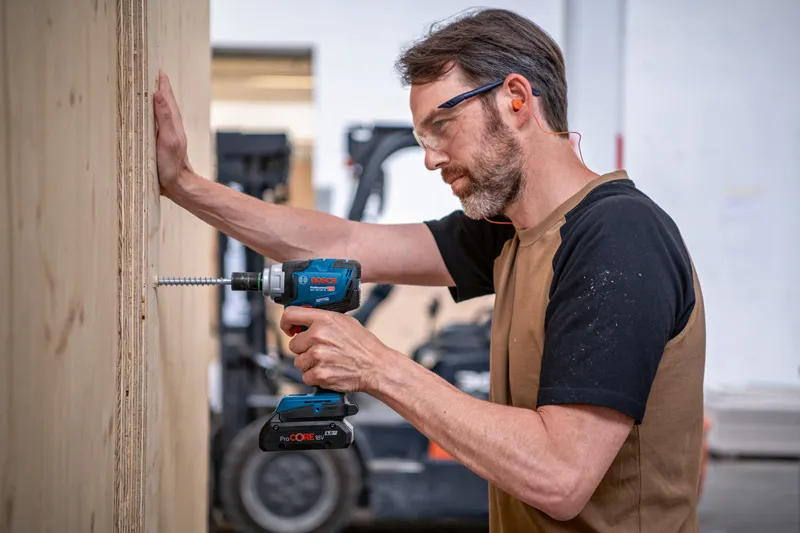

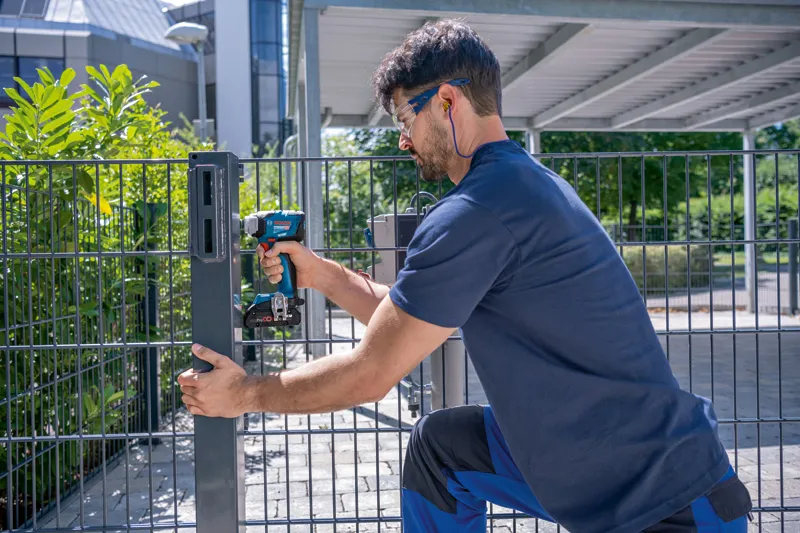

The impact wrench is ideal for metal workshops/locksmiths, industrial assembly, framing, and vehicle maintenance using metal bolts/nuts from M8-M18. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.

Additional Information

The GDS 18V-330 HC Professional comes with tool status indicator, LED light, and belt clip for added convenience.
