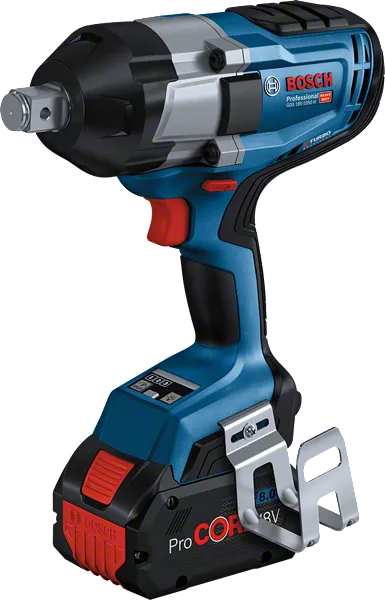

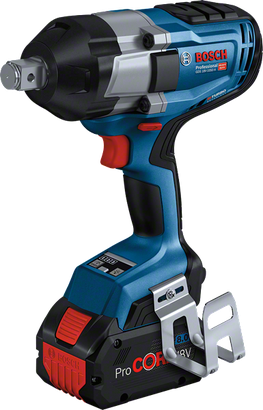

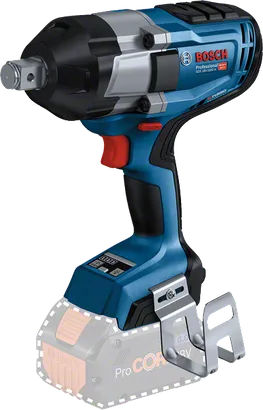

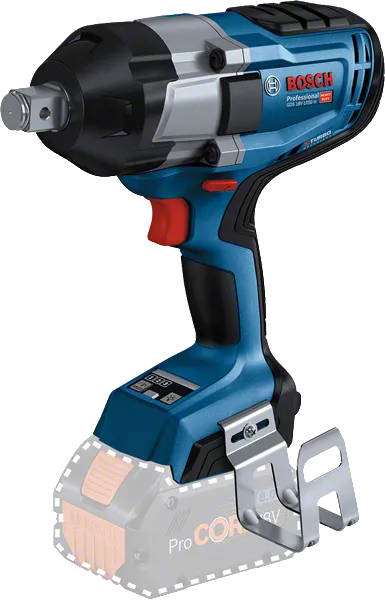

Cordless Impact Wrench
GDS 18V-1050 H Professional

  • Coming Soon
in cardboard box

Full power at its best: 3/4" high torque impact wrench with BITURBO Brushless technology

Choose product variation:

Print

Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

Torque adjustment range, min./max., 1st level 0/350 Nm
Torque adjustment range, min./max., 2nd level 0/750 Nm
Torque adjustment range, min./max., 3rd level 0/1050 Nm
No-load speed 0-1,750 rpm
No-load speed (1st level) 0-800 rpm
No-load speed (2nd level) 0-1,200 rpm
No-load speed (3rd level) 0-1,750 rpm
Torque settings 3
Weight excl. battery 2.9 kg
Torque, max. 1,050 Nm
Impact rate 0-2,600 bpm
Impact rate (1st level) 0-1,600 bpm
Impact rate (2nd level) 0-2,400 bpm
Impact rate (3rd level) 0-2,600 bpm
Tool holder 3/4'' Square
Breakaway torque, max. 1,700 Nm
Screw diameter
Screw diameter M 10 - M 24
Noise/vibration information

Total vibration values (vector sum of three directions)

Tightening screws and nuts of maximum permitted size
Vibration emission value ah 13.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Full power at its best: 3/4" high torque impact wrench with BITURBO Brushless technology

  • Impressive power with cordless freedom thanks to ProCORE18V batteries and brushless motor
  • High performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
  • Ideal versatility and controlled power due to 3-speed/torque settings

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Icon
Icon
Icon
 Impact rate at rated speed 0 - 2600
Icon
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
 Bit insertion square, bit holder, external square
 Square-Drive Thru-Hole allows for secure retention of sockets to help prevent drops.

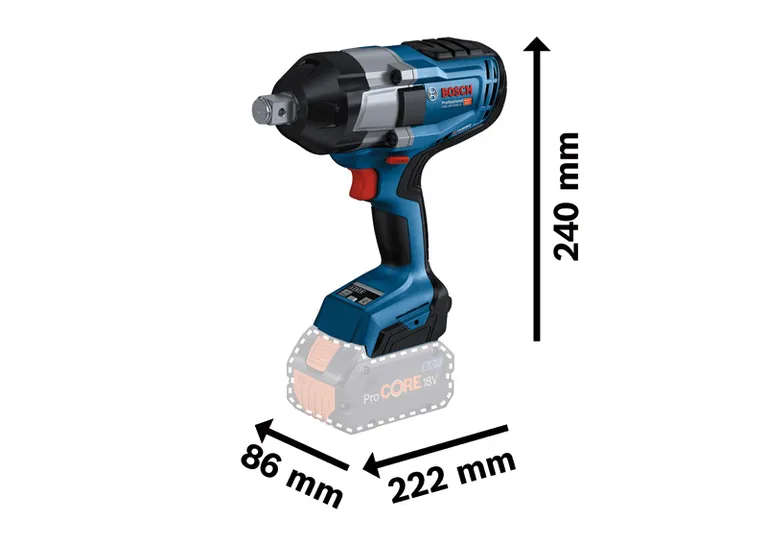

 Head Length 222
Longer motor life - more runtime - more power thanks to brushless motor
 Illuminating of the work area

Scope of supply

in cardboard box

Order number: 0 601 9J8 500

Selected version

Price includes:

  • Cardboard box
  • Ladder clip (1600 A02 3G7)

* Battery and charger not included

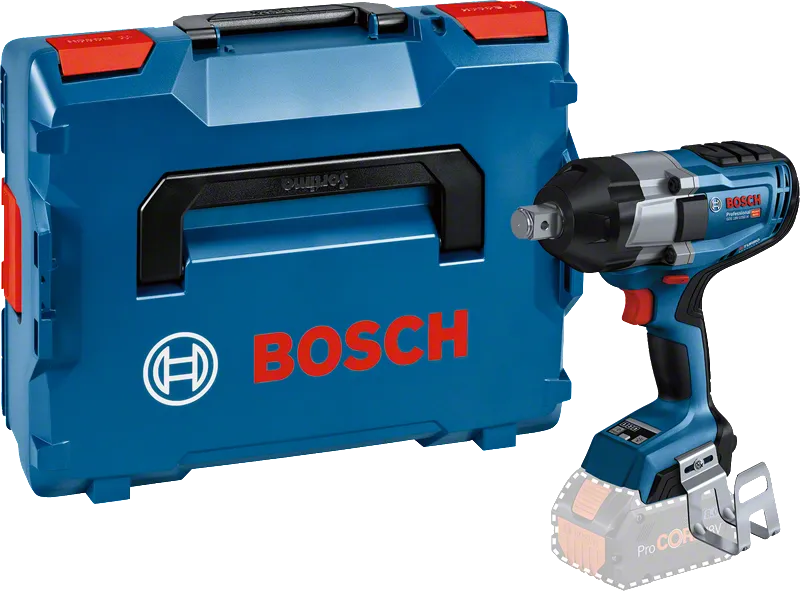

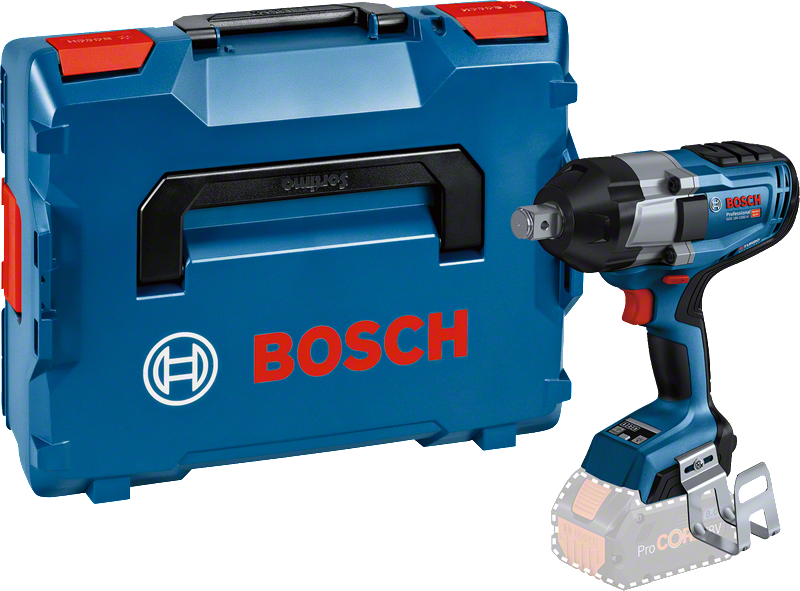

GDS 18V-1050 H

Order number: 0 601 9J8 501

Price includes:

  • L-BOXX 136 1 600 A01 2G0
  • 1/1 L-BOXX inlay for tool and charger 1 600 A02 58Y
  • Ladder clip (1600 A02 3G7)

* Battery and charger not included
