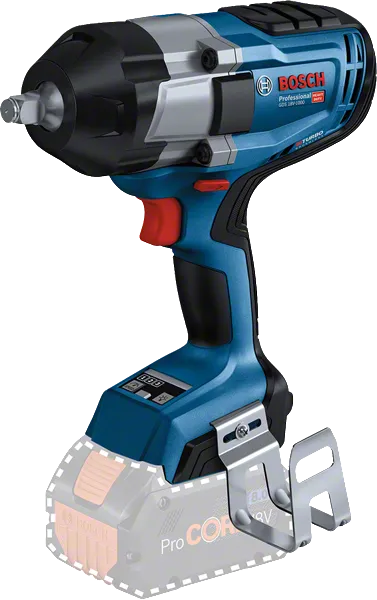

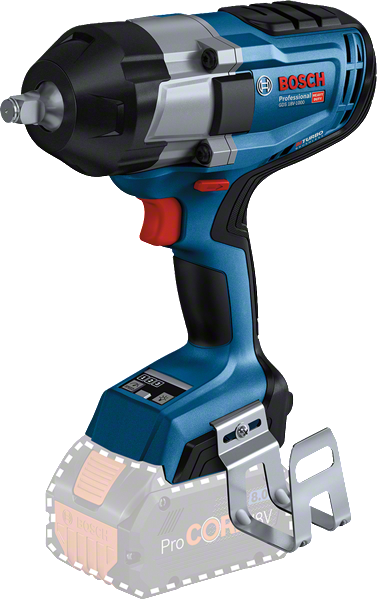

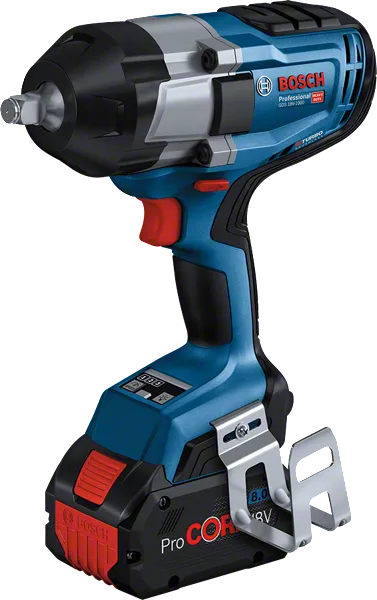

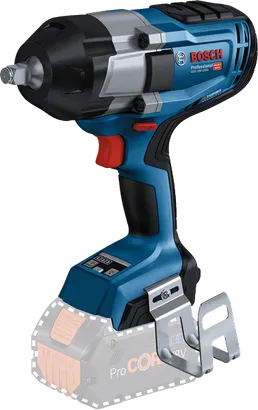

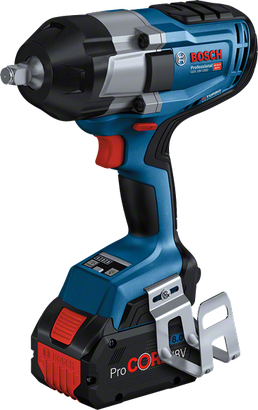

Cordless Impact Wrench
GDS 18V-1000 Professional

  • Coming Soon
in cardboard box

Full power, no cord: 1/2" high torque impact wrench with BITURBO Brushless technology

Choose product variation:

Print

Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data

Torque adjustment range, min./max., 1st level 0/350 Nm
Torque adjustment range, min./max., 2nd level 0/700 Nm
Torque adjustment range, min./max., 3rd level 0/1000 Nm
No-load speed 0-1,750 rpm
No-load speed (1st level) 0-800 rpm
No-load speed (2nd level) 0-1,200 rpm
No-load speed (3rd level) 0-1,750 rpm
Torque settings 3
Weight excl. battery 2.9 kg
Torque, max. 1,000 Nm
Impact rate 0-2,600 bpm
Impact rate (1st level) 0-1,600 bpm
Impact rate (2nd level) 0-2,400 bpm
Impact rate (3rd level) 0-2,600 bpm
Battery voltage 18 V
Tool holder 1/2'' Square
Breakaway torque, max. 1,600 Nm
Screw diameter
Screw diameter M 10 - M 24
Noise/vibration information

Total vibration values (vector sum of three directions)

Tightening screws and nuts of maximum permitted size
Vibration emission value ah 13.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Full power, no cord: 1/2" high torque impact wrench with BITURBO Brushless technology

  • High power with cordless freedom thanks to ProCORE18V batteries and brushless motor
  • Best performance for heavy duties with a tightening torque of 1,000 Nm and a breakaway torque of up to 1,600 Nm
  • High versatility and controlled power due to 3-speed/torque settings

Functions

 Compatible since 2008: all of our batteries are compatible with new and existing Bosch Professional tools in the same voltage class.
Icon
Icon
Icon
 Impact rate at rated speed 0 - 2600
Icon
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
1/2" external square tool holder

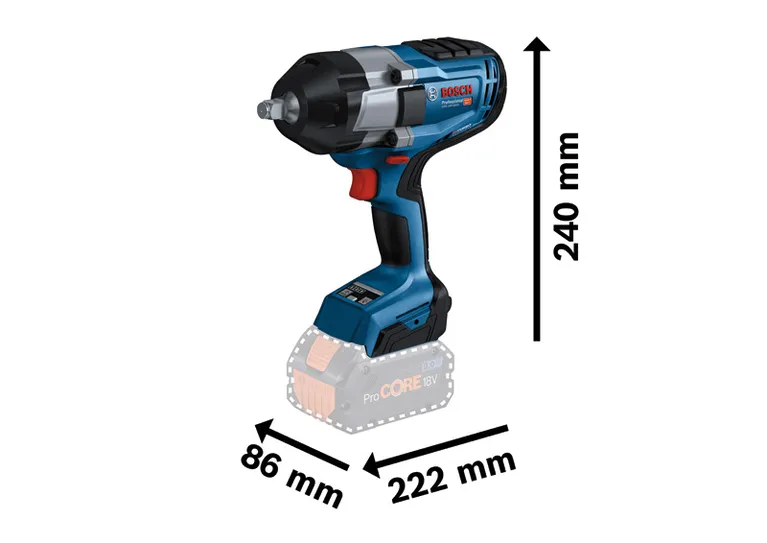

 Head Length 222
Longer motor life - more runtime - more power thanks to brushless motor
 Illuminating of the work area

Scope of supply

in cardboard box

Order number: 0 601 9J8 300

Selected version

Price includes:

  • Cardboard box
  • Ladder clip (1600 A02 3G7)

* Battery and charger not included

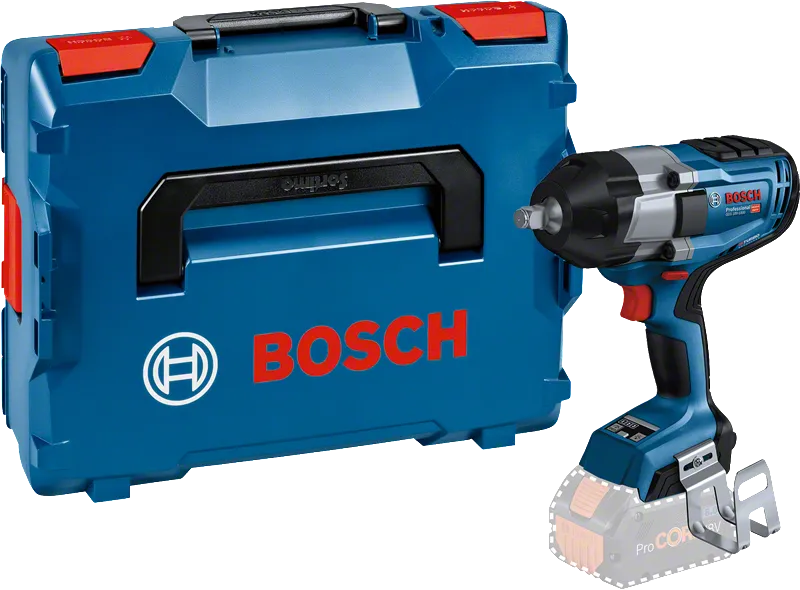

GDS 18V-1000

Order number: 0 601 9J8 301

Price includes:

  • L-BOXX 136 1 600 A01 2G0
  • 1/1 L-BOXX inlay for tool and charger 1 600 A02 58Y
  • Ladder clip (1600 A02 3G7)

* Battery and charger not included
