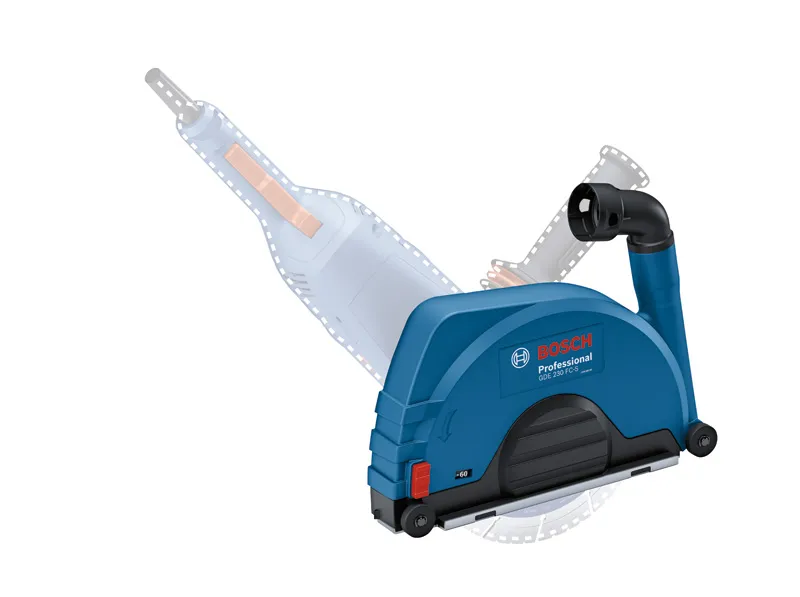

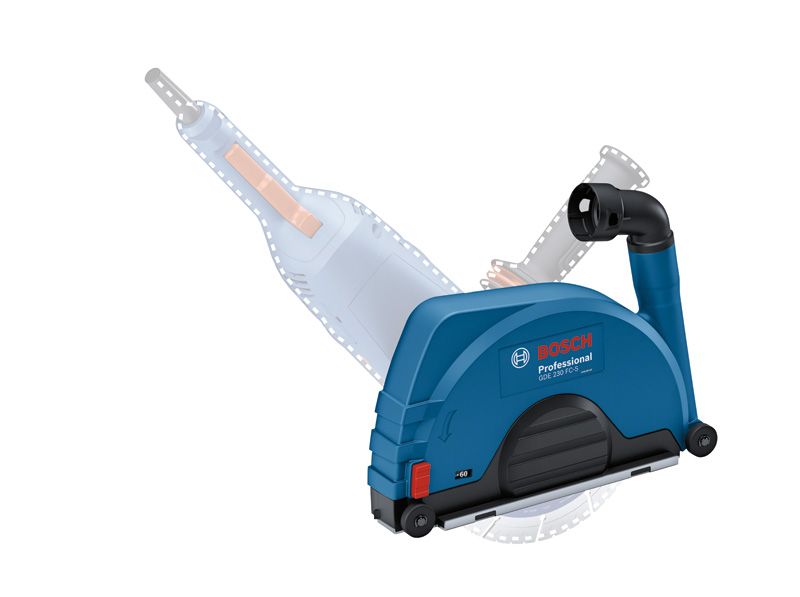

![Bosch GDE 230 FC-S system accessory for angle grinders.]( "GDE 230 FC-S")

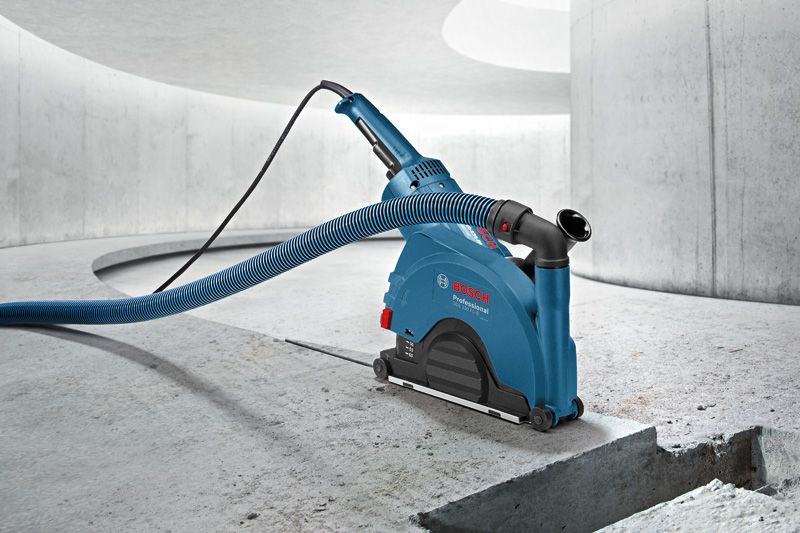

![Wall chaser with dust extraction hose cutting a straight groove in a concrete floor.]( "GDE 230 FC-S")

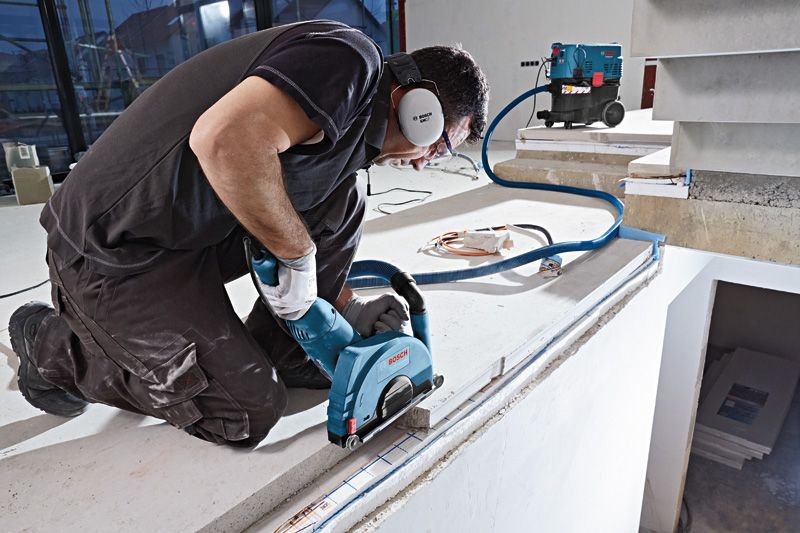

![A person wearing safety equipment uses a wall chaser on concrete near a vacuum system.]( "GDE 230 FC-S")
![Dust extraction guard assembly]( "GDE 230 FC-S")
GDE 230 FC-S Professional
System Accessories
Order number 1.600.A00.3DL
- Virtually dust-free work thanks to full cover shape and enhanced dust extraction
- Convenient 360°-connection between angle grinder dust extractor enables easy handling
- Adjustable cutting depths and integrated wheels support precise work
GDE 230 FC-S Professional
1 600 A00 3DL
GDE 230 FC-S Professional
Your Selection
Technical data
The most important data
Suitable for cutting disc diameter
230 mm
Maximum cutting depth
~ 60 mm
Compatible with
GWS20, GWS2000-23JH, GWS20-230/H/JH, GWS21-230/H/JH/HV/JHV, GWS22, GWS22-230/H/JH, GWS230/H/JH, GWS2300H, GWS24, GWS24-230/B/H/BV/BX/JB/JH/JBV/JBX/H+ZB/PROFI
Weight*
2.1 kg

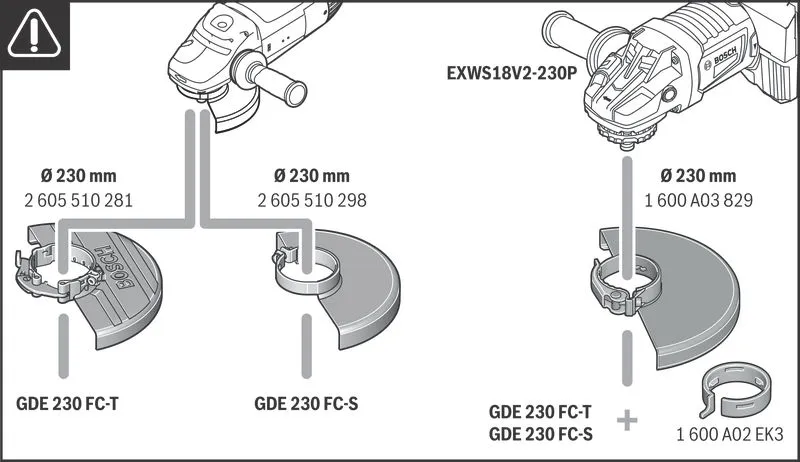

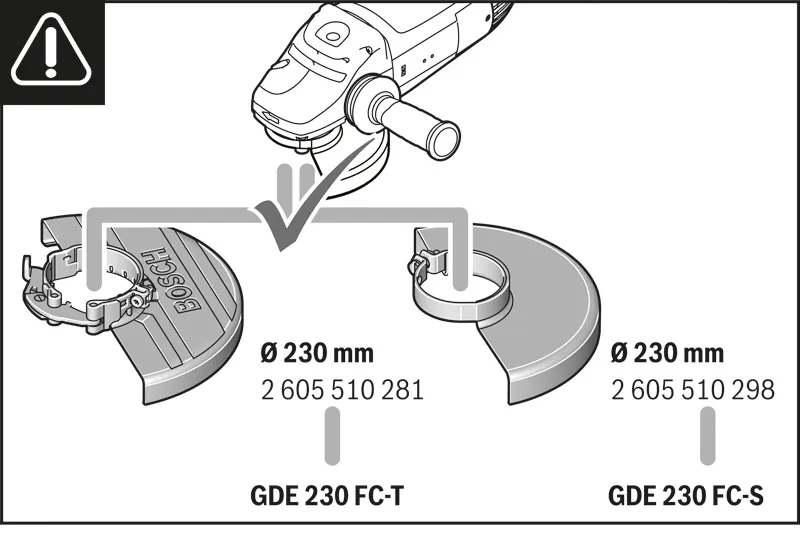

Compatibility type of protection guard
Protective guard with locking screw

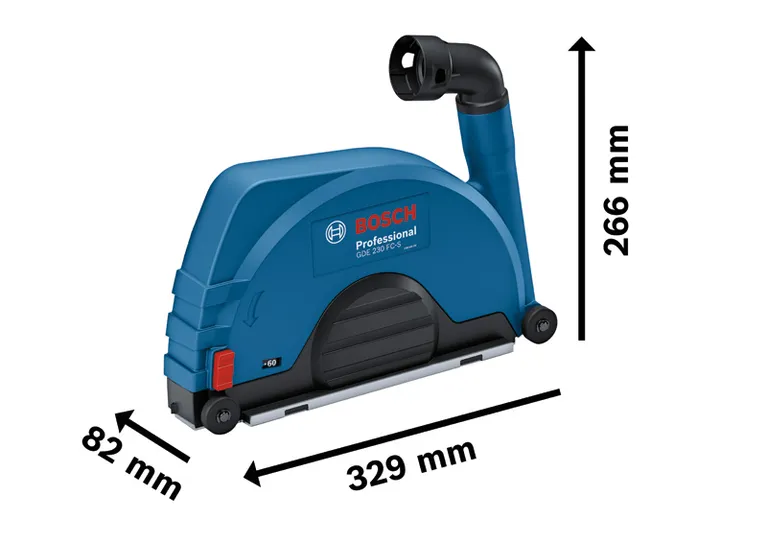

Packaging dimensions (width x length x height)
238 x 397 x 103 mm
* You can find more information about the deviations in the following link:
GDE 230 FC-S Professional: Further information
Product Highlights

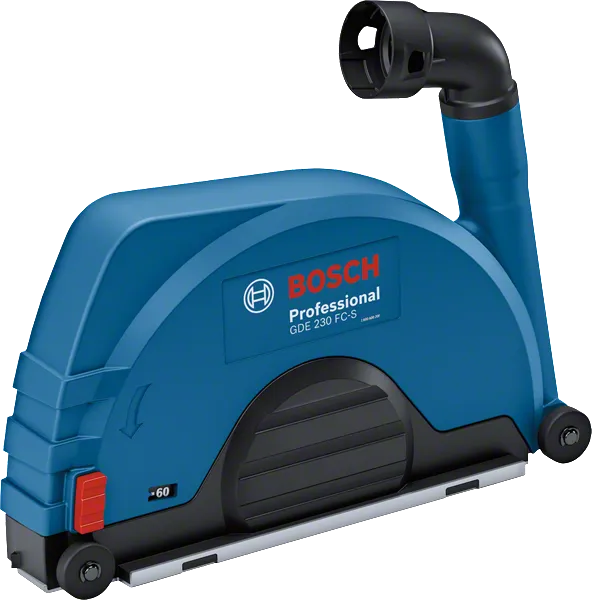

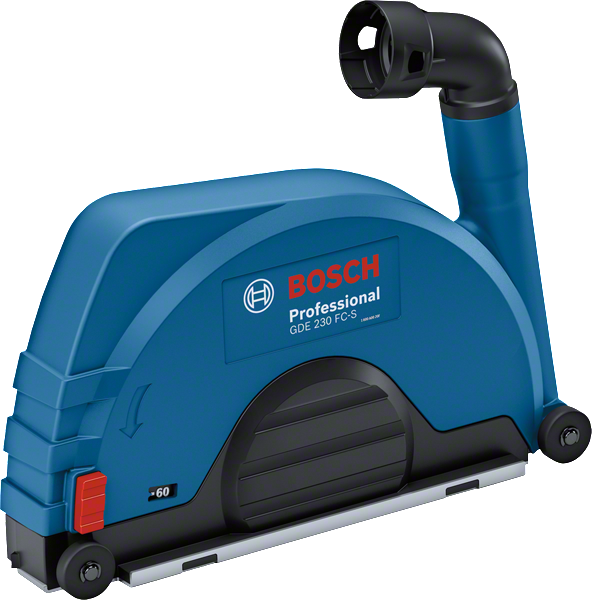

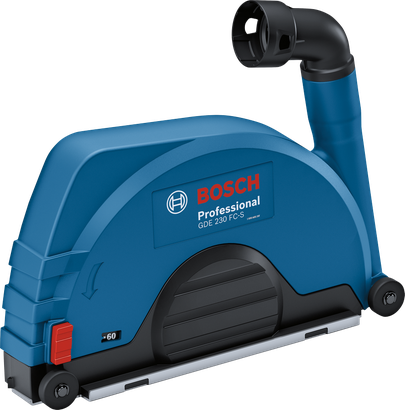

The GDE 230 FC-S Professional is Bosch's full cover dust guard for angle grinders with standard protective guards and 230-mm disc diameters. Its full cover shape provides enhanced dust extraction for virtually dust-free work. A convenient 360°-connection between the angle grinder and dust extractor enables easy handling. Adjustable cutting depths and integrated wheels support precise work. The dust guard is compatible with the Bosch Click & Clean System as well as a multitude of angle grinders with standard protective guards.
