Sliding Mitre Saw
The most important data |
|
---|---|
Cutting capacity, 0° | 70 x 312 mm |
Cutting capacity, 45° mitre | 70 x 225 mm |
Cutting capacity, 45° bevel | 45 x 312 mm |
Mitre setting | 52 ° L / 60 ° R |
Bevel setting | 47 ° L / 47 ° R |

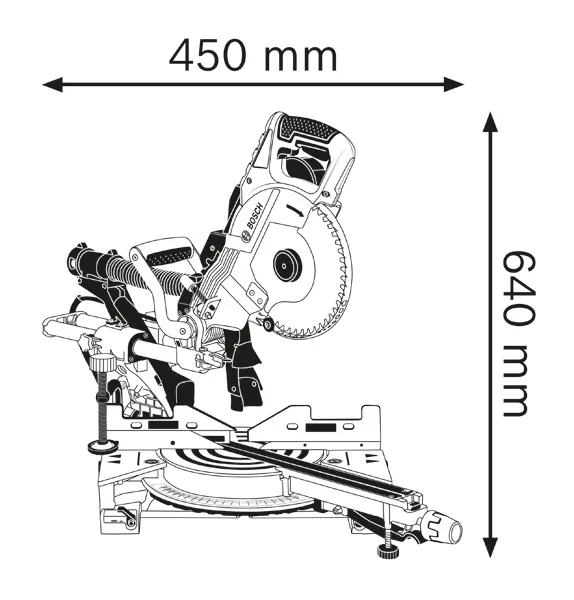

Tool dimensions (width x length x height) | 450 x910 x640 mm |
No-load speed* | 3,500 – 5,000 rpm |
Saw blade diameter | 216 mm |
Saw blade bore diameter | 30 mm |
Weight* | 18.9 kg |
Rated input power | 1,600 W |
Packaging dimensions (width x length x height) | 475 x 850 x 445 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 108 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:

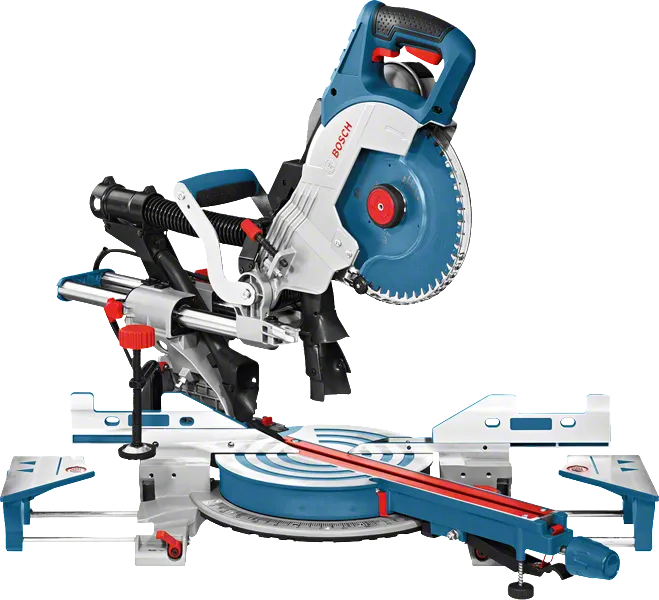

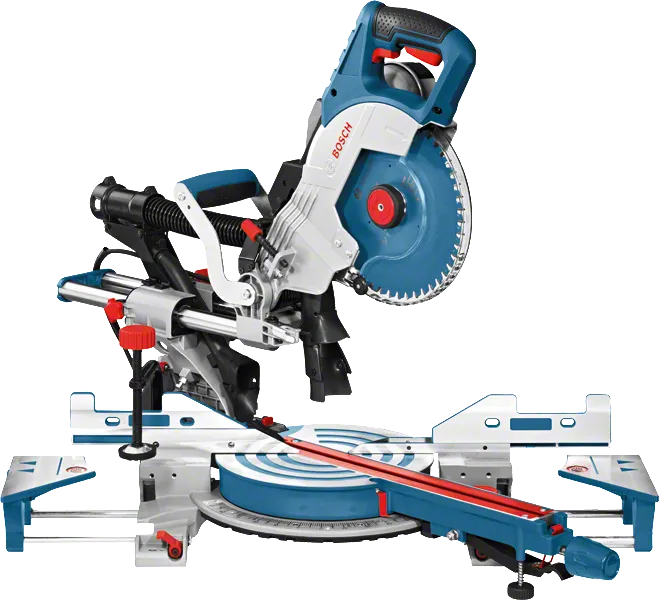

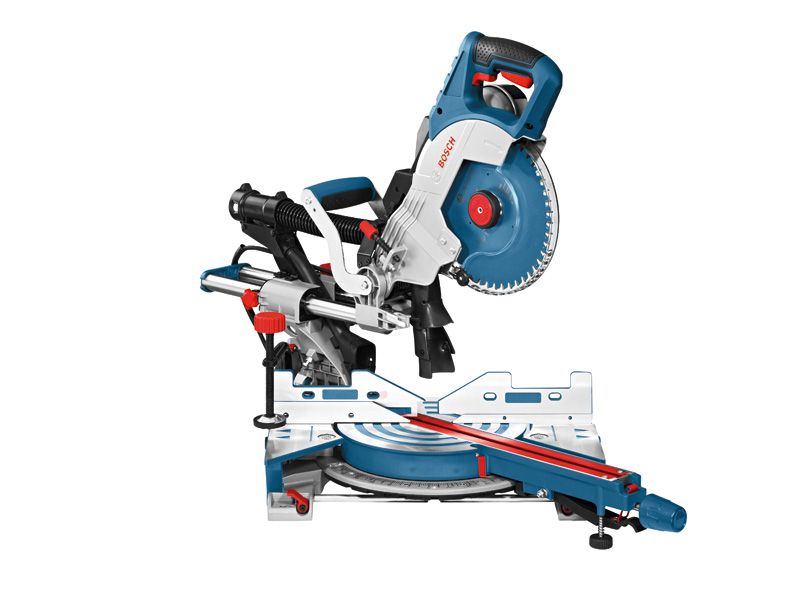

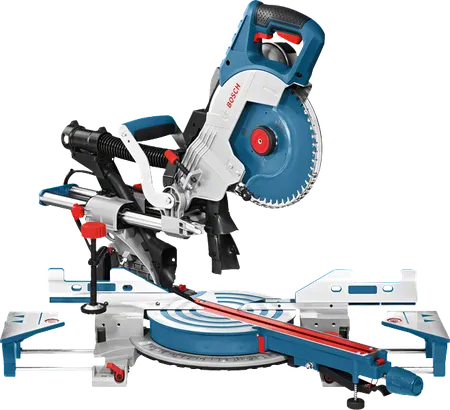

Power and flexibility in one: The GCM 8 SDE Professional allows quick and precise work in almost any type of material. Its convenient, one-handed transport handle makes it lightweight and compactly designed for jobs on the go. Variable cutting speed enables high flexibility when cutting materials like plastic and aluminium. For highest convenience, it ensures quick and tool-less sawblade changes.

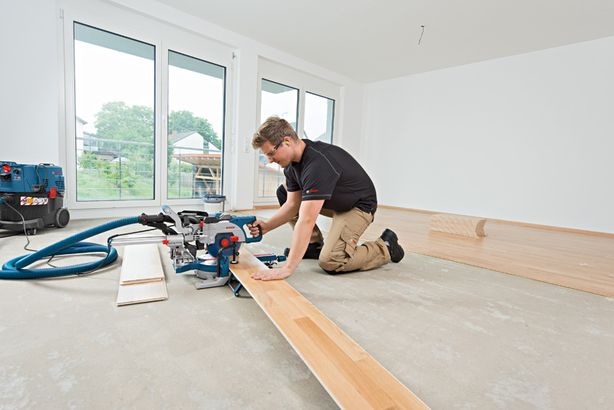

This mitre saw is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
The GCM 8 SDE Professional also includes features such as 2-point dust extraction, bevel detent turrent, precision laser, soft start, double-sided tilt adjustment, and speed selection.
