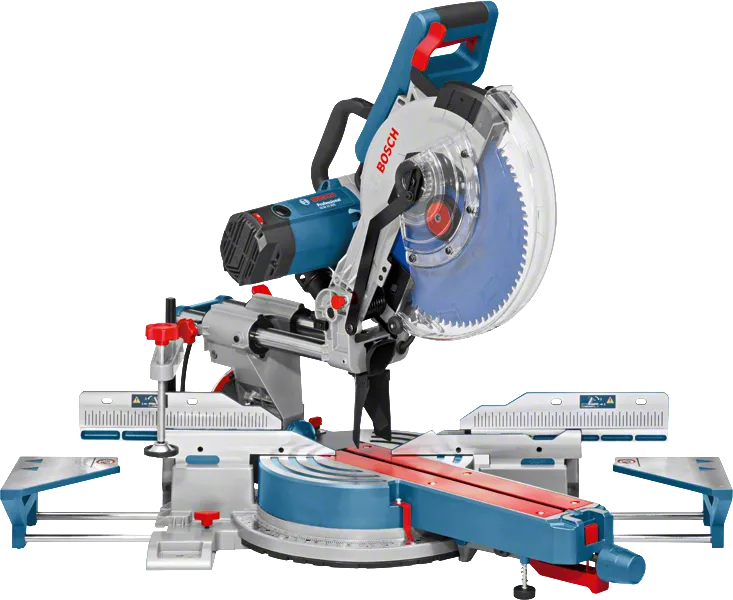

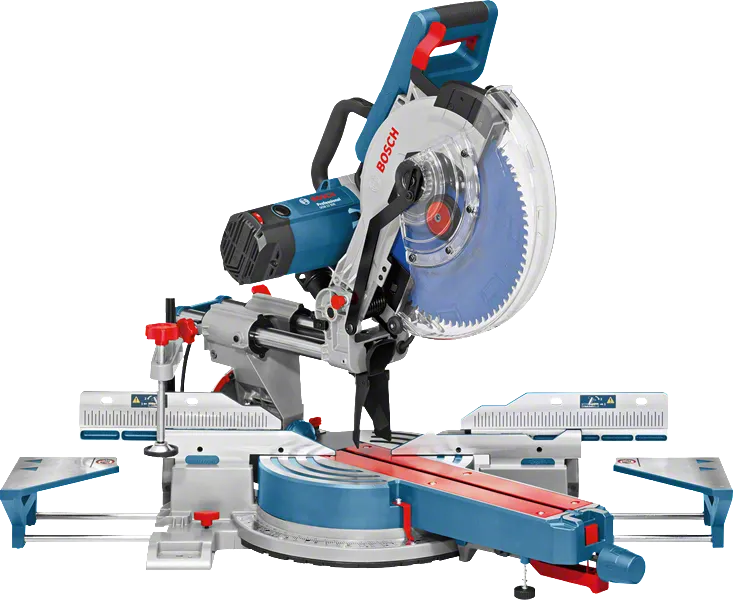

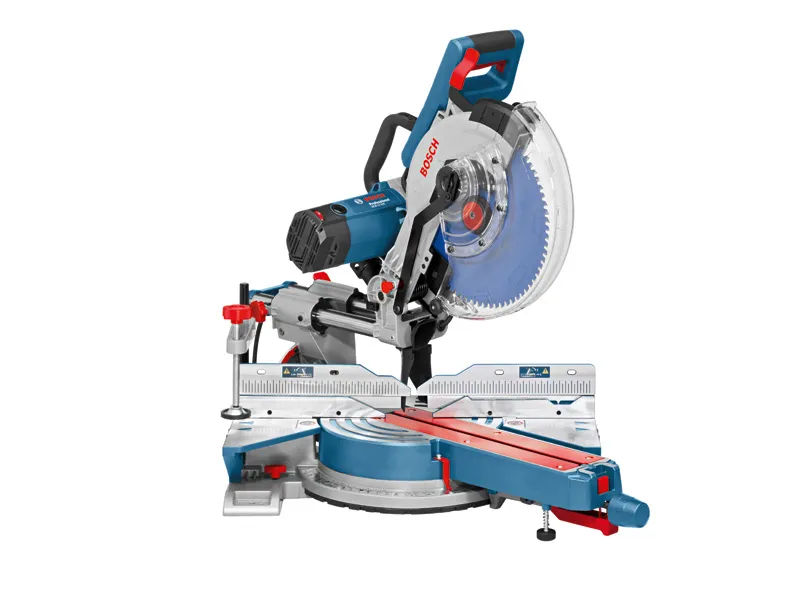

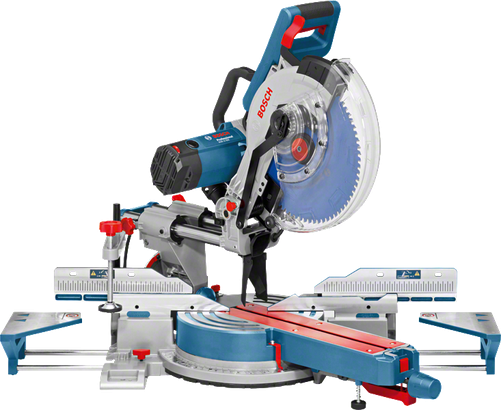

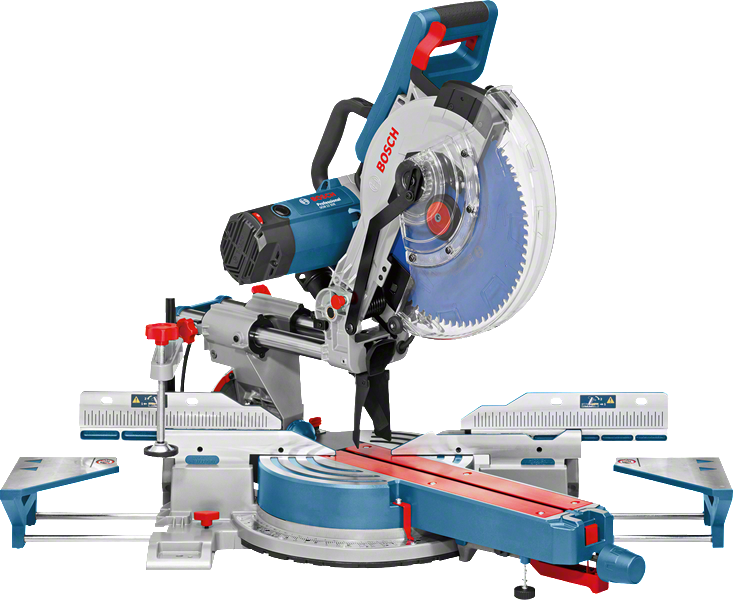

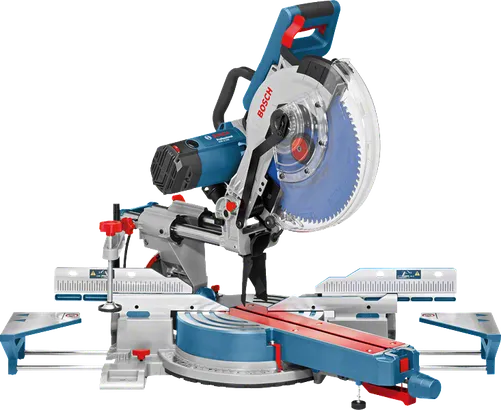

Sliding Mitre Saw
GCM 12 SDE Professional

High cutting capacity and variable speed for a wide variety of applications

Print

More

Technical data

The most important data

Cutting capacity, 0° 85 x 370 mm
Cutting capacity 0° with spacer (max. vertical) 120 x 200 mm
Cutting capacity 0° with spacer (max. horizontal) 70 x 400 mm
Cutting capacity, 45° mitre 85 x 250 mm
Cutting capacity, 45° incline 60 x 360 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R

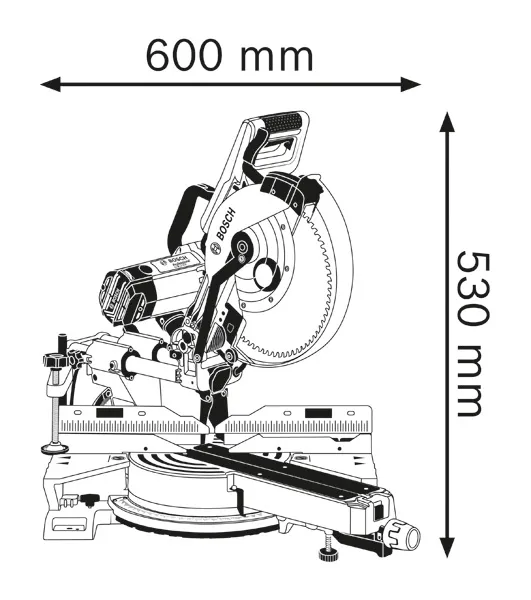

Tool dimensions (width x length x height) 860 x600 x530 mm
No-load speed 3.100 – 4.000 rpm
Saw blade diameter 305 mm
Saw blade bore diameter 30 mm
Weight 28.6 kg
Rated input power 1,800 W
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 92 dB(A)
Sound power level 105 dB(A)
Uncertainty K 3 dB
Sawing wood
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

High cutting capacity and variable speed for a wide variety of applications

  • Vertical cutting capacity of 120 mm
  • Variable speed for adapting the cutting speed to the material
  • SDS saw blade changes

Functions

Prices / Package contents


GCM 12 SDE

Order number: 0 601 B23 140

Selected version

Price includes:
