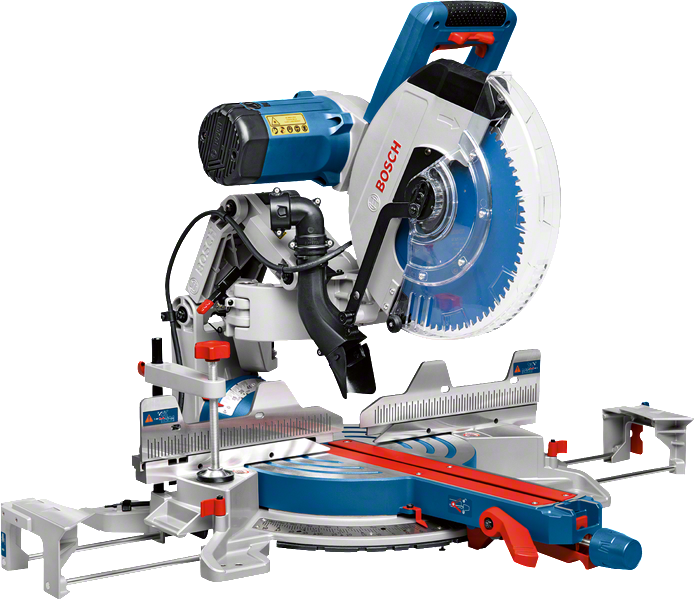

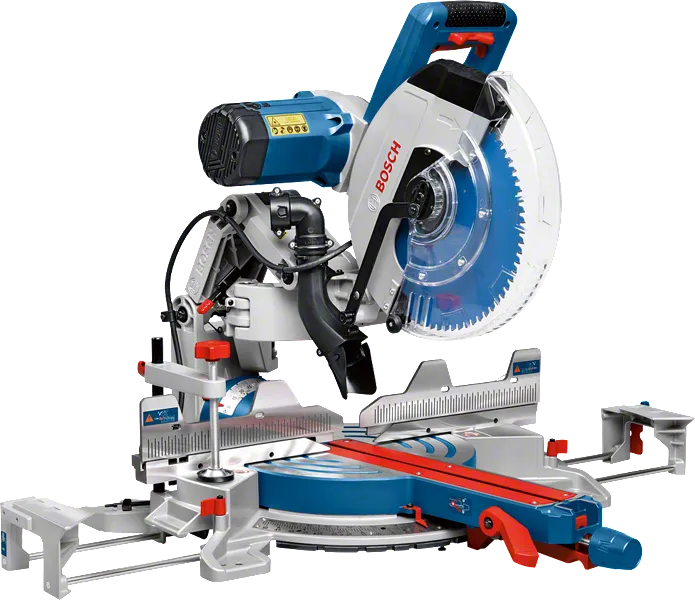

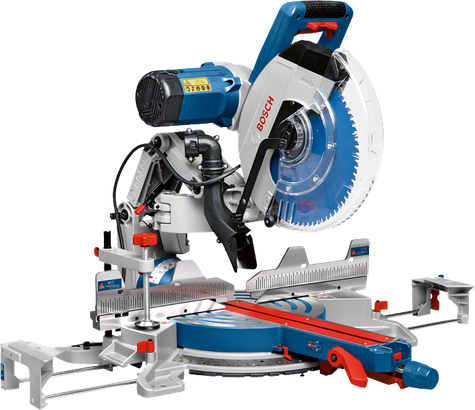

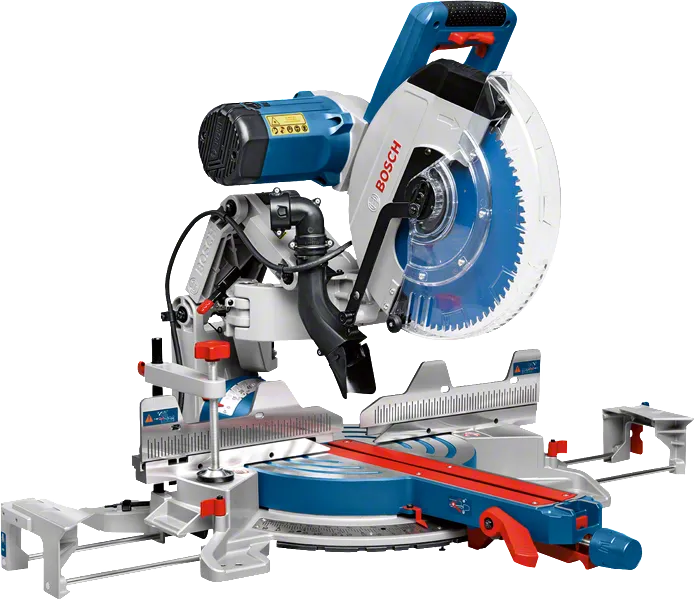

GCM 12 GDL Professional

Mitre Saw

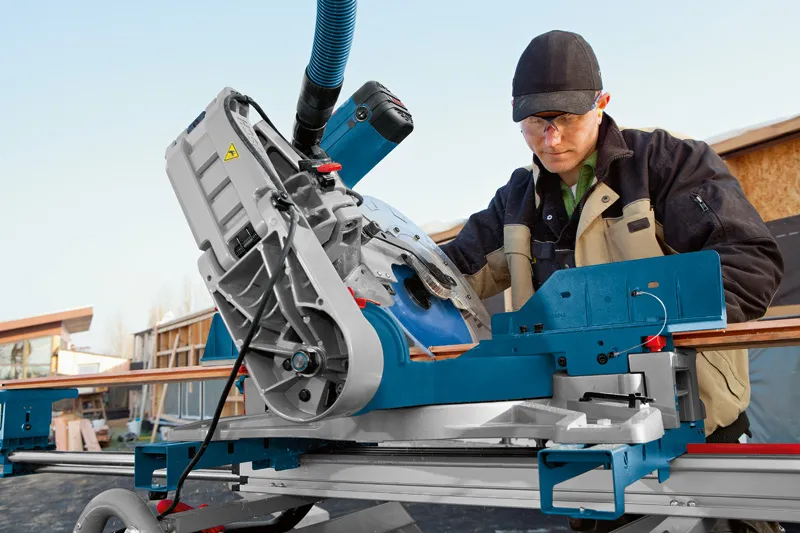

Highest-precision sawing: mitre saw with Bosch´s patented glide arm design

  • Innovative, maintenance-free glide arm is extremely robust for precision that lasts
  • Glide arm´s hinge design makes the mitre saw compact from front to back
  • Double line laser and top-quality saw blade ensure highly accurate cuts

Functions & key features

 Compact slide mechanism due to innovative, maintenance-free and extremely robust glide arm
Easy disc / tool change thanks to spindle lock

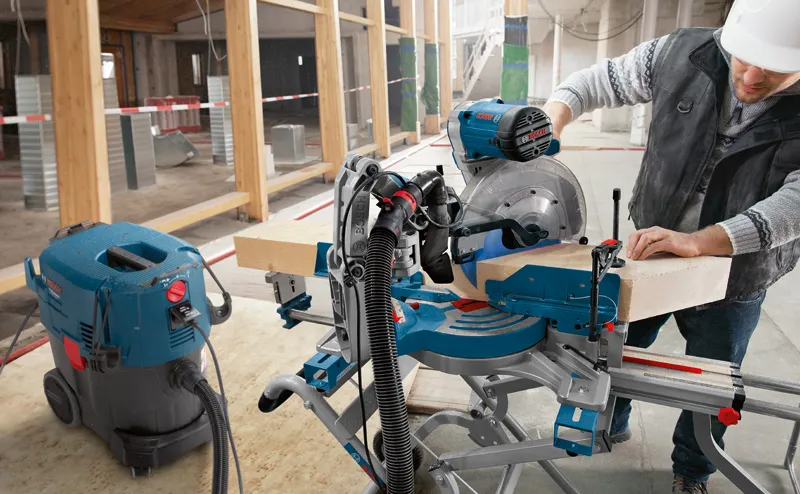

Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • with accessory set
Show variant

Available in 2 onlineshop(s)

Buy now

with accessory set 0 601 B23 640

GCM 12 GDL Professional

Your Selection

GCM 12 GDL
with accessory set

Order number: 0 601 B23 640

Buy now

Included in this variant

  • Wrench
  • Stop plate
    Order number: 1 609 B02 365
  • Clamp
    Order number: 1 609 B06 203
  • Saw blade 305 mm 60 T
  • Hex key (spare part number 1 609 B00 256)
  • Insert plate
    Order number: 1 609 B02 375
  • Screw
    Order number: 1 609 B00 263
  • Collet
    Order number: 1 609 B02 585
Our service promise for professionals.
Register now!

Technical data

The most important data

Cutting capacity, 0° 104 x 341 mm
Cutting capacity, 45° mitre 104 x 240 mm
Cutting capacity, 45° bevel 51 x 341 mm
Mitre setting 52 ° L / 60 ° R
Bevel setting 47 ° L / 47 ° R

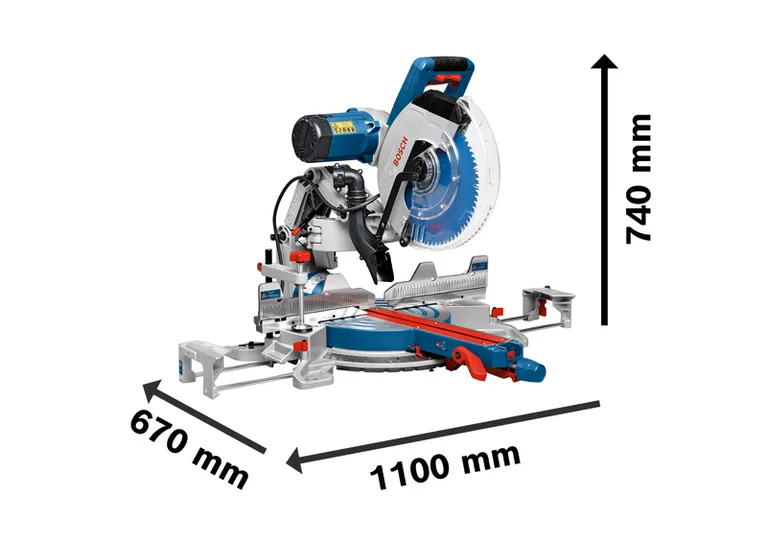

Tool dimensions (width x length x height) 1100 x670 x740 mm
No-load speed* 4,000 rpm
Saw blade diameter 305 mm
Saw blade bore diameter 25.4 mm
Weight* 32.1 kg
Rated input power 2,000 W
Packaging dimensions (width x length x height) 570 x 795 x 640 mm

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.

GCM 12 GDL

* You can find more information about the deviations in the following link: Technical features of products

GCM 12 GDL Professional: Further information

Product Highlights

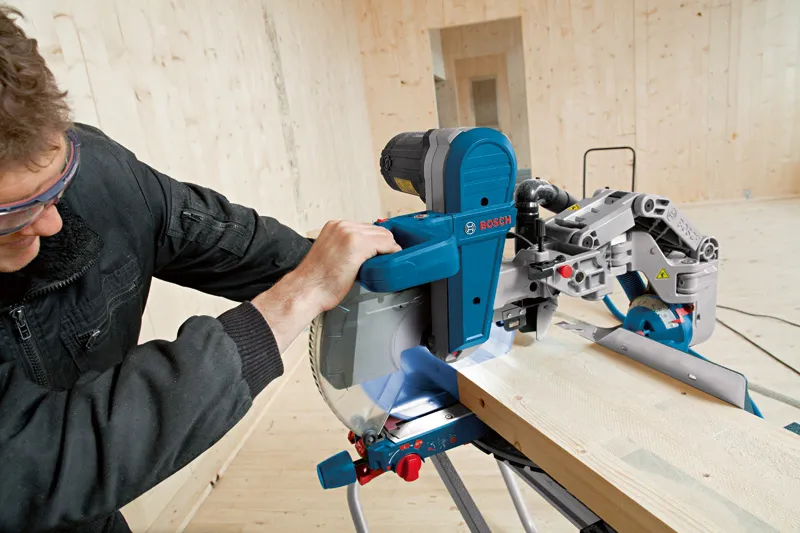

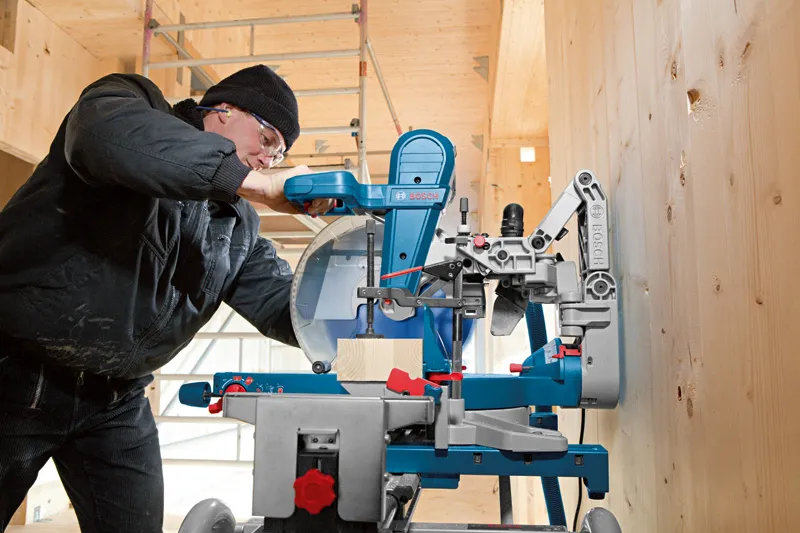

With the most accurate cutting results in the Bosch range, the GCM 12 GDL Professional is the top choice for jobs that demand highest precision. The mitre saw´s innovative, maintenance-free glide arm is extremely robust and offers high endurance. Thanks to the glide arm´s hinge design, the GCM 12 GDL Professional is compact from front to back. Equipped with a double line laser and top-quality saw blade, this mitre saw ensures highly accurate cuts reaching a cutting depth of up to 170 x140mm for L-profile (max thickness should be 36mm).

Equipment & Application

The GCM 12 GDL Professional is intended for cross, mitre bevel and groove cuts in wood, timber beams, and wood composites as well as in board materials and floor panels. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.

Additional Information

The GCM 12 GDL Professional also includes features such as intelligent brake system, precision double line laser, and soft start.
