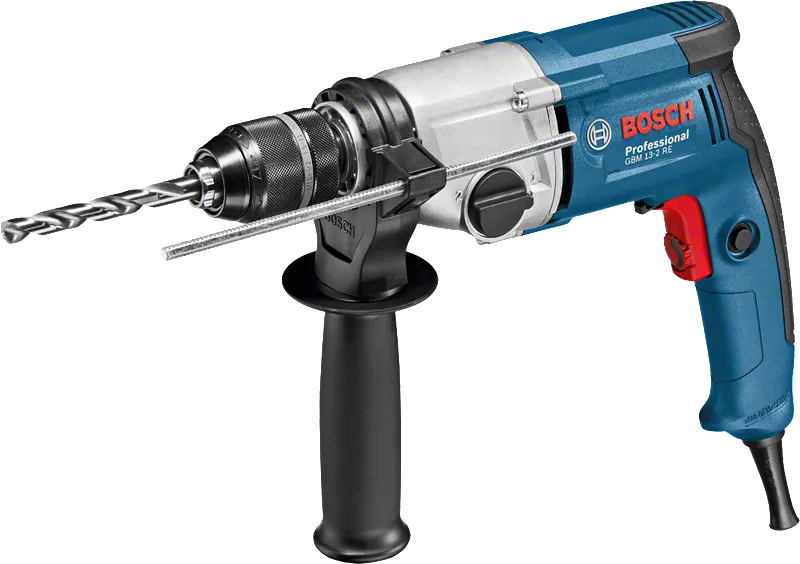

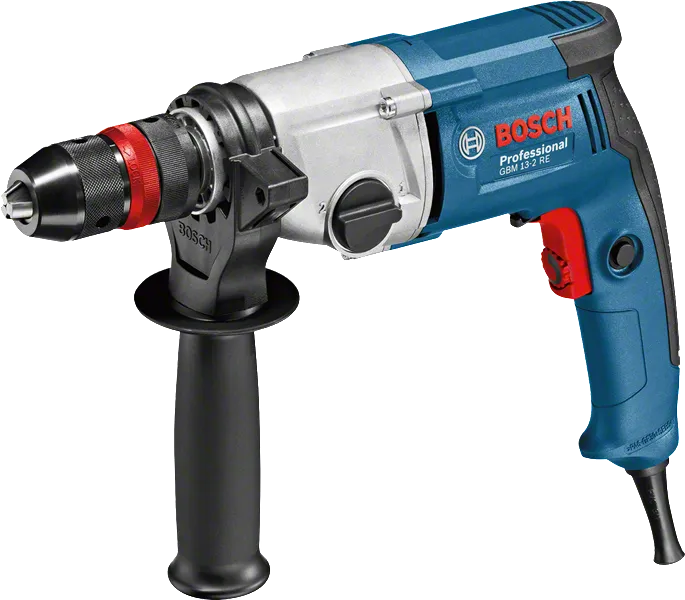

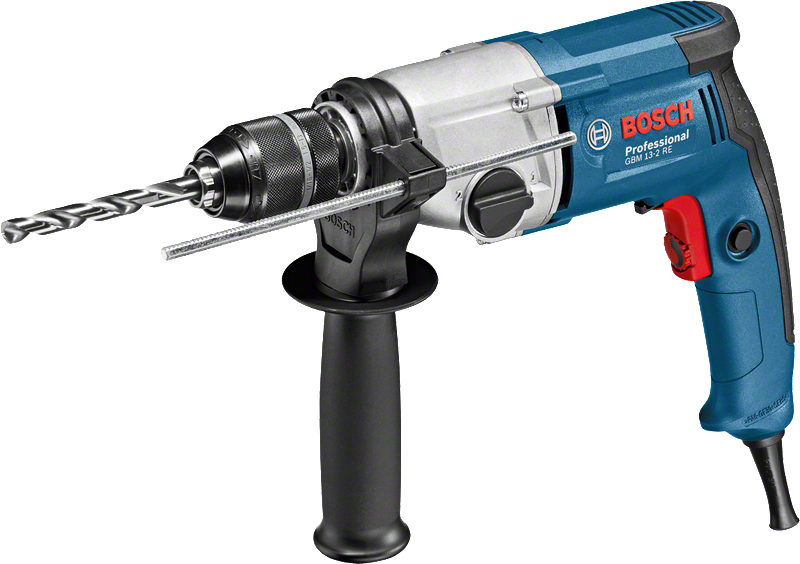

Drill

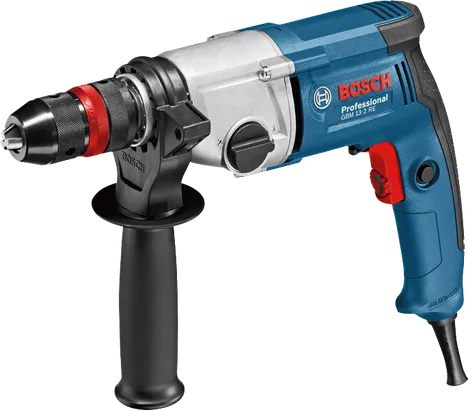

GBM 13-2 RE Professional

in cardboard box with accessory set

2-geared rotary drill for precision work

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 750 W
No-load speed 0 – 1,000 / 3,000 rpm
Power output 353 W
Weight 2.4 kg
Rated speed 500 / 1,750 rpm
Rated torque 6.8 / 2.5 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Max. torque 39.5 / 12.5 Nm
Packaging dimensions (width x length x height) 276 x 357 x 83 mm
Drill chuck, version Precision chuck
Voltage, electrical 240 V
Spindle collar diameter 43 mm
Bit holder 1/2"-20 UNF
Drilling range
Drilling diameter in aluminium 20 / 12 mm
Drilling diameter in wood 32 / 20 mm
Drilling diameter in steel 13 / 8 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 81 dB(A)
Sound power level 93 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 7.5 m/s²
Uncertainty K 1.6 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

2-geared rotary drill for precision work

  • Powerful 750 W motor and high torque for fast work progress, drilling holes in steel of up to 13 mm in diameter
  • Compact and ergonomic design providing good tool handling for precise results
  • 2-speed gearbox with speed preselection setting wheel for accurate performance in versatile applications

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Easy and precise control of the RPM thanks to variable speed
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.

Prices / Package contents


in cardboard box with accessory set

Order number: 0 601 1B2 040

Selected version

Price includes:

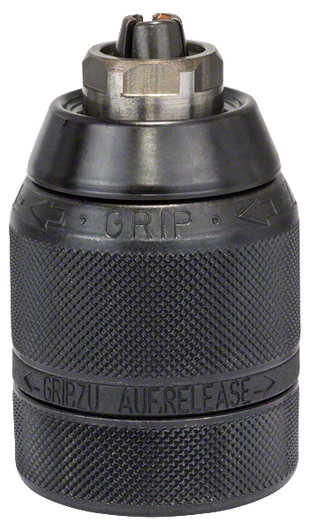

  • Keyless high-precision chuck, 1.5 - 13 mm 2 608 572 273
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
