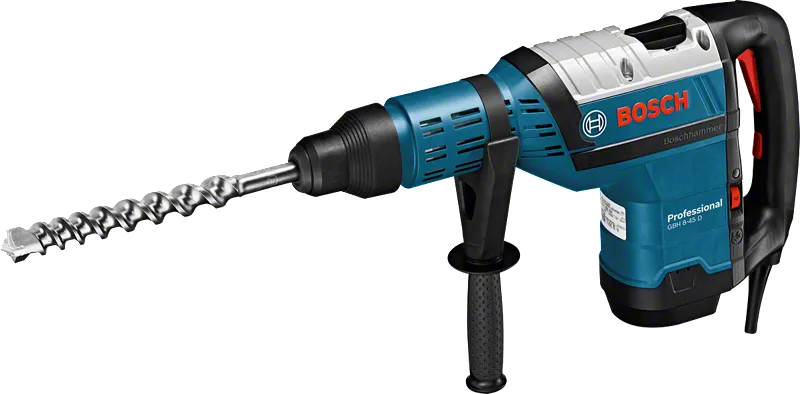

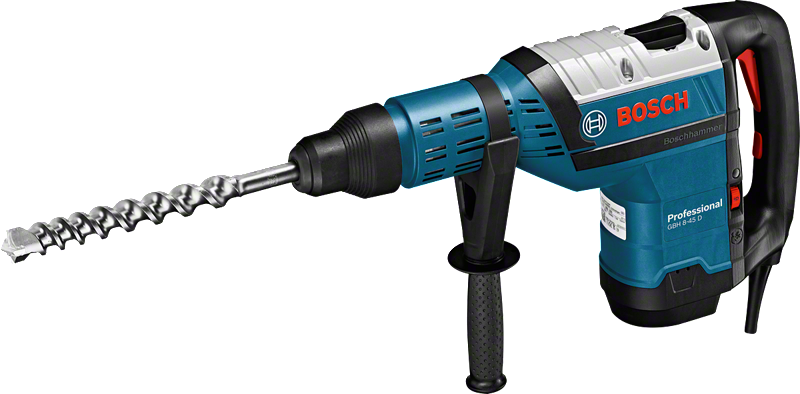

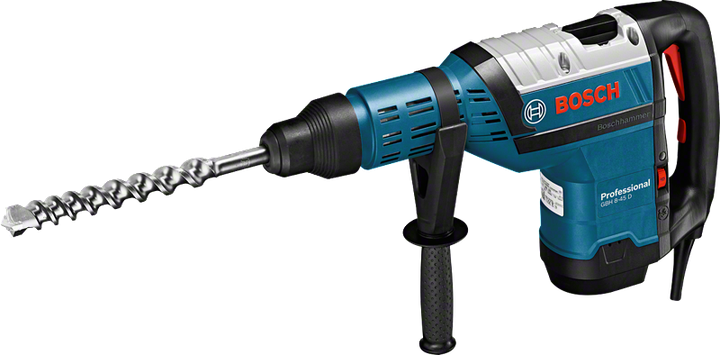

GBH 8-45 D Professional

Rotary Hammer with SDS max

All-round performer in Bosch’s SDS max rotary hammer category

Perfect power-to-weight ratio for performing many SDS max tasks
Durable due to robust metal components
Powerful motor enables the delivery of 12.5 J of impact energy for fast drilling and high removal rate

Functions & key features

Your Selection

in carrying case with auxiliary handle

Show variant

Currently not available online

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with auxiliary handle 0 611 265 140

Find a local dealer

GBH 8-45 D Professional

Your Selection

in carrying case with auxiliary handle

Order number: 0 611 265 140

Find a local dealer

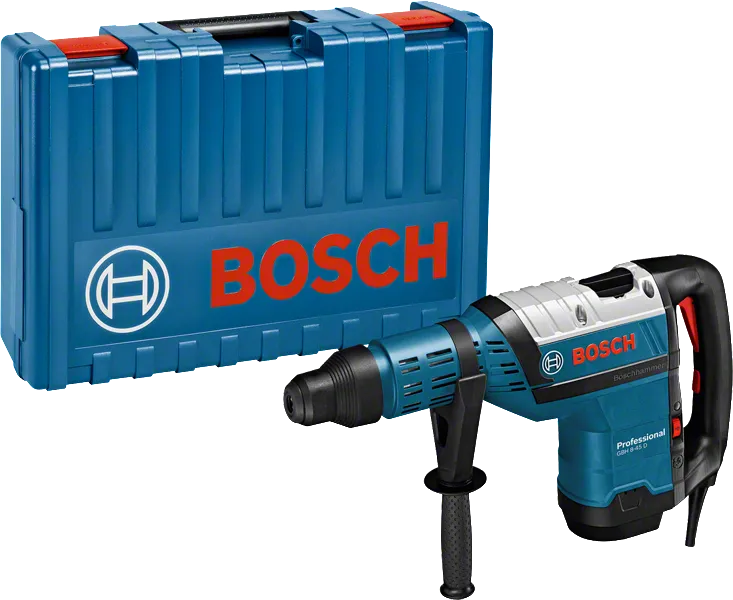

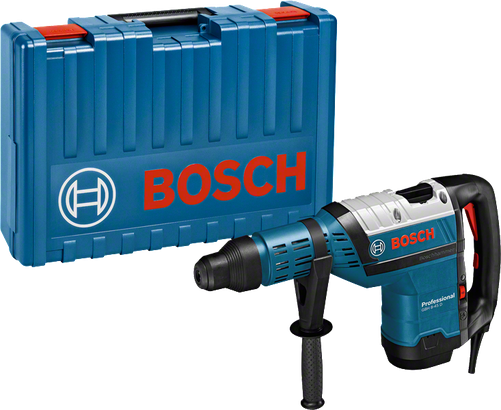

Included in this variant

Auxiliary handle (spare part number 1 612 025 004)
Carrying case (spare part number 1 615 438 51A)
Grease tube (spare part number 1 615 430 010)
Machine cloth

Your selection

Our service promise for professionals.

Technical data

Performance data
Impact rate at rated speed*	1,475 – 2,700 bpm
Rated speed*	165 – 300 rpm

The most important data
Tool holder	SDS max
Impact energy (according to EPTA 05/2016)	12.5 J
Rated input power*	1,500 W
Packaging dimensions (width x length x height)**	410 x 621 x 144 mm
Weight*	8.2 kg

Drilling range
Drilling dia. concrete, hammer drill bits	12 – 45 mm
Opt. appl. range concrete, hammer drill bits	20 – 40 mm
Drilling dia. concrete, breakthrough drill bits	80 – 80 mm
Drilling diameter in concrete with core cutters	125 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	24.3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	14.8 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

** May have small deviations because of variations during production process. You can find more information about the deviations in the following link: Technical features of products

GBH 8-45 D Professional: Further information

Product Highlights

The GBH 8-45 D Professional is an all-round performer in the SDS max corded rotary hammer category due to its universal capabilities. Its perfect power-to-weight ratio enables it to easily perform many SDS max tasks. This rotary hammer also features robust metal components for durability. Its strong motor enables the delivery of 12.5 J of impact energy for a fast drilling progress and high material removal rate.

Equipment & Application

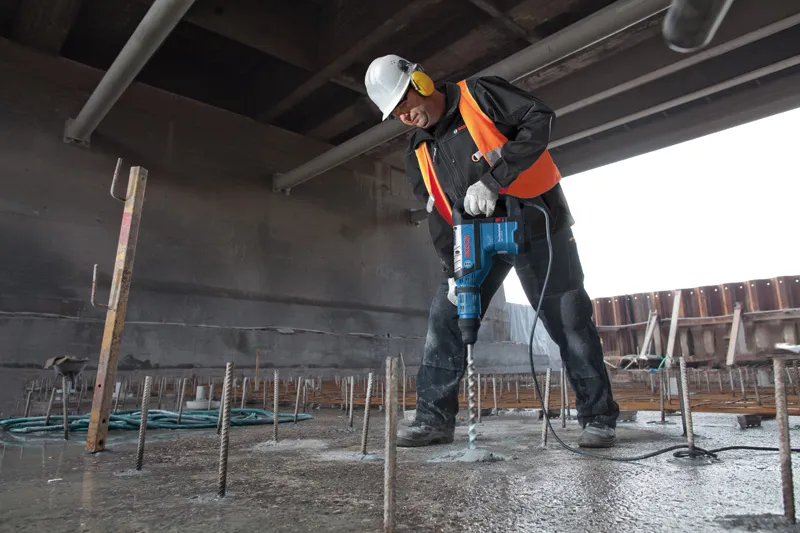

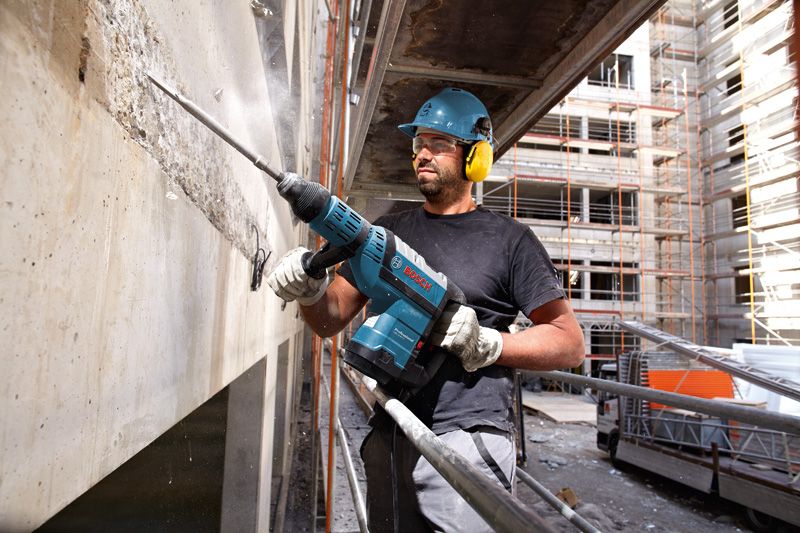

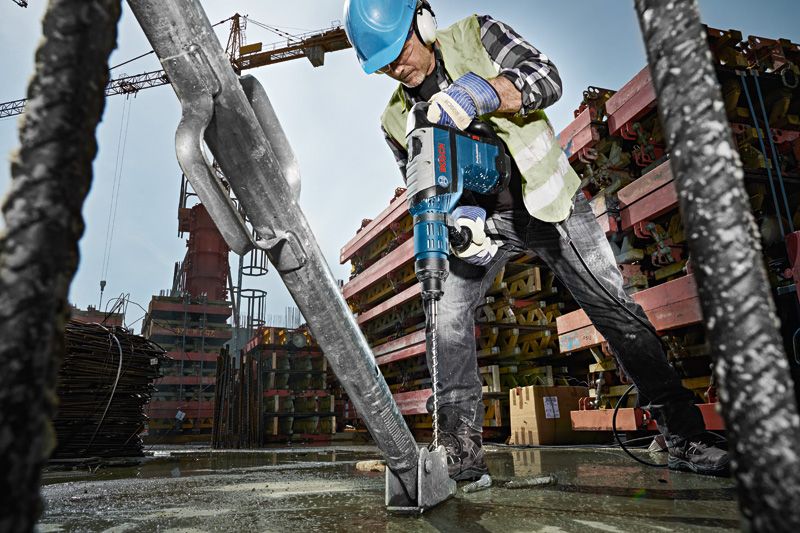

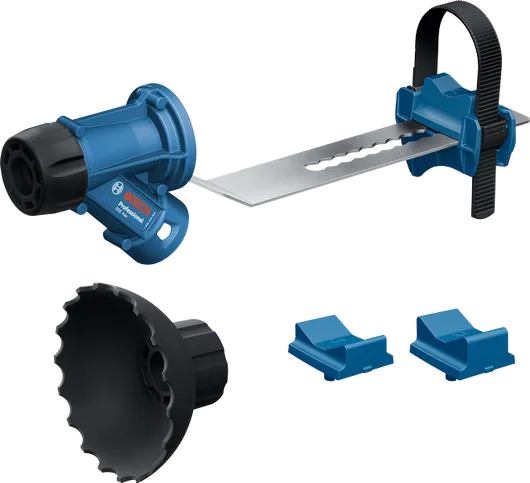

This tool is intended for drilling up to 45 mm in diameter and medium chiselling work in concrete and stone. It is compatible with various dust attachments.

Additional Information

The GBH 8-45 D Professional also includes features such as Constant Speed, Restart Protection, Rotation Control Clutch, and Speed Selection.
