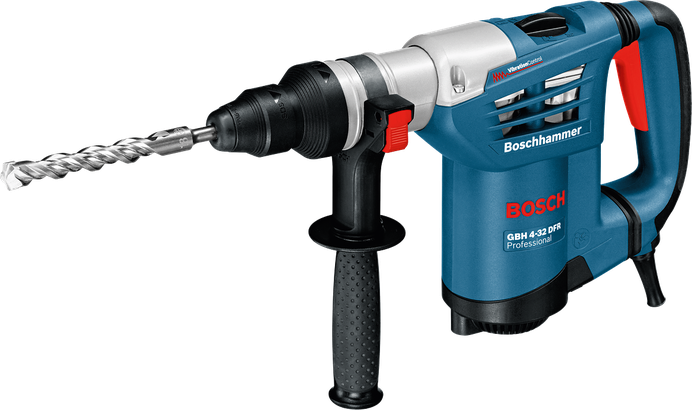

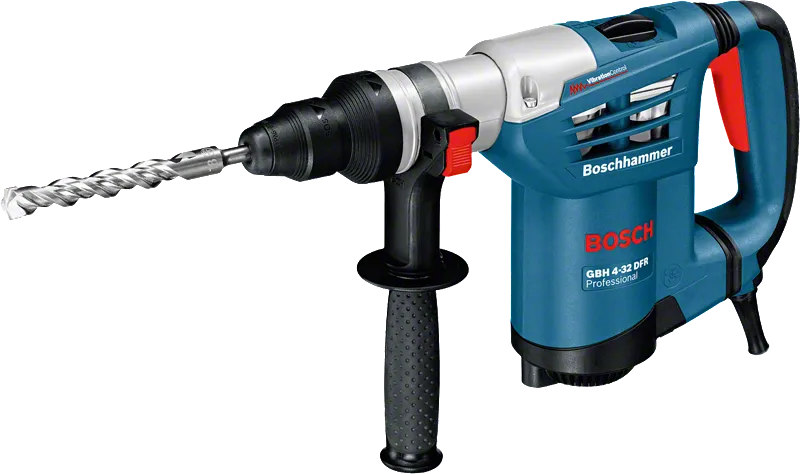

Rotary Hammer with SDS plus
GBH 4-32 DFR Professional

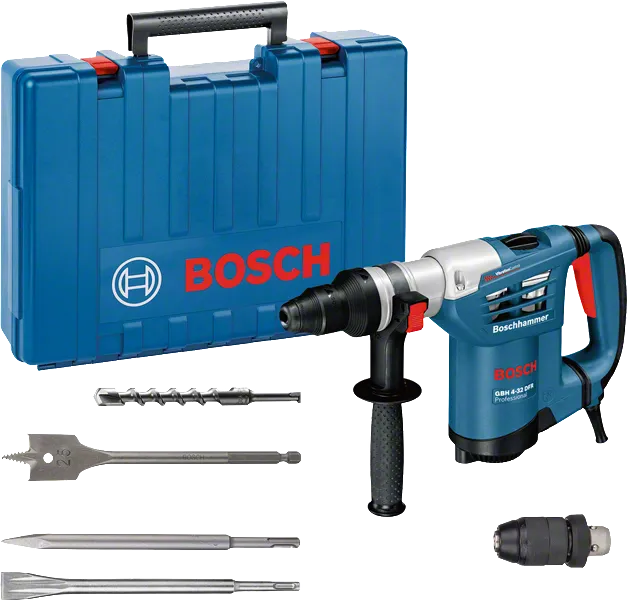

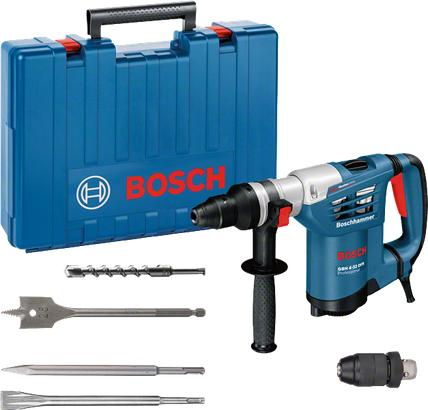

in carrying case with accessory set

Most powerful rotary hammer performance in the SDS plus category

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Rated input power 900 W
Impact energy 4.2 J
Impact rate at rated speed 0 – 3,600 bpm
Rated speed 0 – 800 rpm
Weight 4.7 kg
Tool holder SDS plus
Packaging dimensions (width x length x height) 350 x 475 x 125 mm
Drilling dia. concrete, hammer drill bits 6 – 32 mm
Opt. appl. range concrete, hammer drill bits 14 – 25 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 32 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 12 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 9 m/s²
Uncertainty K 1.5 m/s²

Advantages

Most powerful rotary hammer performance in the SDS plus category

  • 900 W motor delivers 4.2 J of impact energy for the fastest chisel removal rates in Bosch’s SDS plus range
  • Durable due to robust metal gearbox housing design
  • Vibration Control for effortless and continuous work in time-intensive applications

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Optimal power transmission for small hammers
Metal chuck 1.0 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque

Prices / Package contents

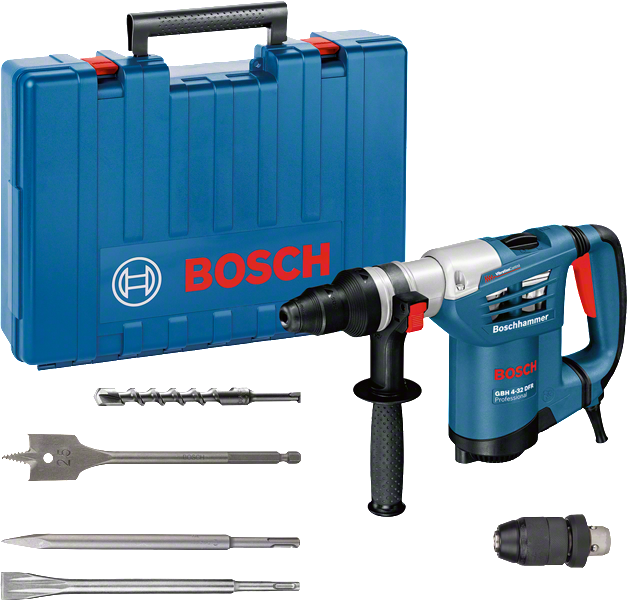

in carrying case with accessory set

Order number: 0 611 332 141

Selected version

Price includes:

  • Auxiliary handle 2 602 025 176
  • Carrying case 2 605 438 651
  • Depth stop 310 mm 1 613 001 003
  • Flat chisel 2 608 590 096
  • Quick change chuck 13 mm 2 608 572 212
  • Pointed chisel (spare part number 2 608 690 095)
  • Pointed chisel 2 608 590 095
  • SDS plus drill bits (10, 12, 14, 16 mm)
  • SDS plus quick-change chuck 2 608 572 213
