GAX 18V-30 Professional

Name: GAX 18V-30
Brand: Bosch power tools

Charger

Dual-bay, multi-voltage and USB all-in-one charger

Dual-bay charger with 3 A charging current: One for 10.8/12 V and another one for 14.4/18 V

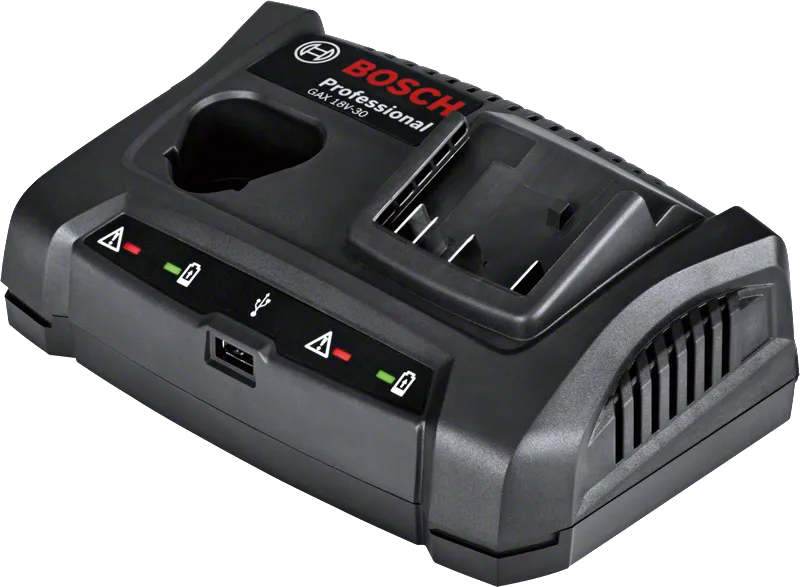

Additional USB charger integrated: Fast charges your smartphone or tablet with 2.1 A charging current
Sequential charger for all Bosch Professional 12 V and 18 V batteries

Functions & key features

Your Selection

in cardboard box with Wall mount

Show variant

Available in 1 onlineshop(s)

Check availability on location

Buy now

Your Selected Variant

in cardboard box with Wall mount 1 600 A01 1AB

Buy now

GAX 18V-30 Professional

Your Selection

in cardboard box with Wall mount

Order number: 1 600 A01 1AB

Buy now

Included in this variant

Cardboard box
Wall mount
Charger GAX 18V-30 Professional

Order number: 1 600 A01 1AB

Your selection

Professional 18V System.

Discover more!

Technical data

The most important data
Interfaces	USB port: 5 V, max. 2.1 A
Battery charging voltage	10.8 – 18 V
Charge current*	3 A

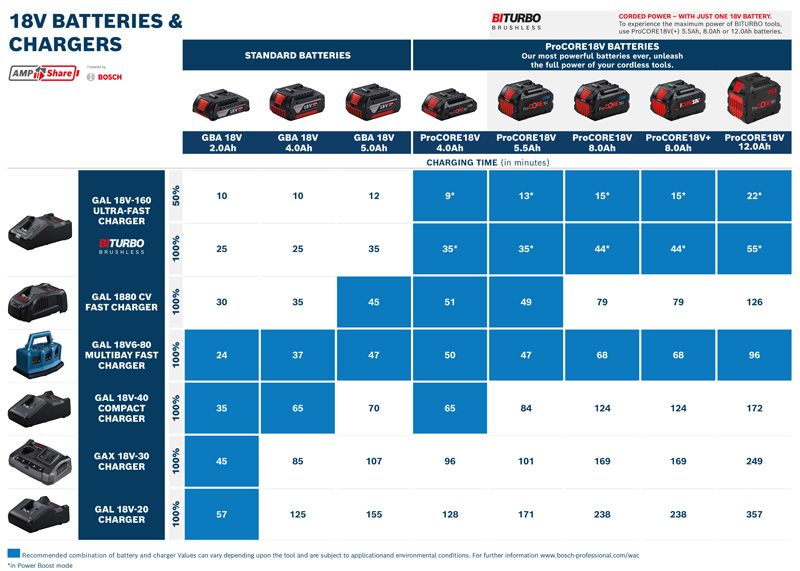

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.*	35/45 min
Charg. time at bat. cap. 2.5 Ah (80%/100%) approx.*	40/65 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.*	53/68 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.*	65/85 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.*	82/107 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.*	100/130 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.*	109/181 min
Weight*	0.8 kg

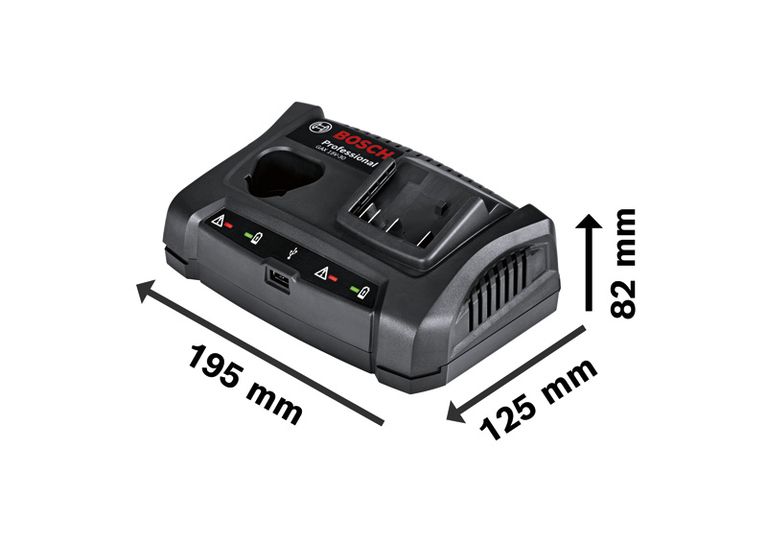

Packaging dimensions (width x length x height)	160 x 255 x 125 mm
Battery voltage	18.0 V

* You can find more information about the deviations in the following link: Technical features of products

GAX 18V-30 Professional: Further information

Product Highlights

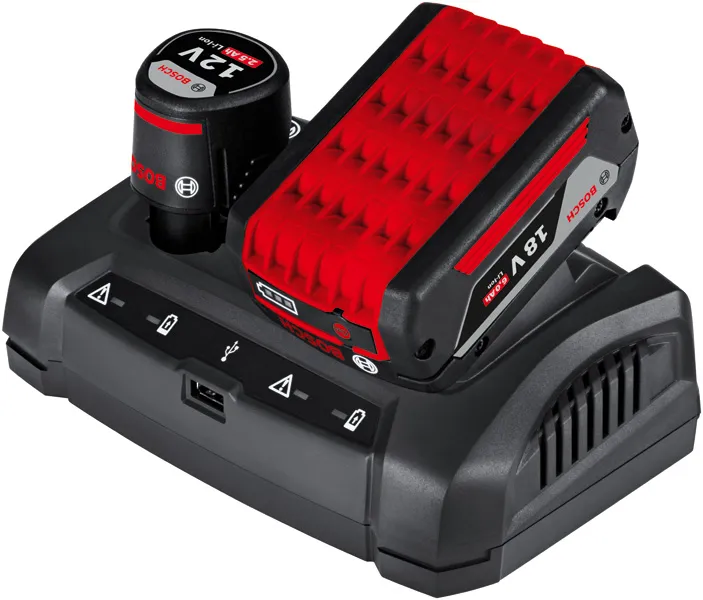

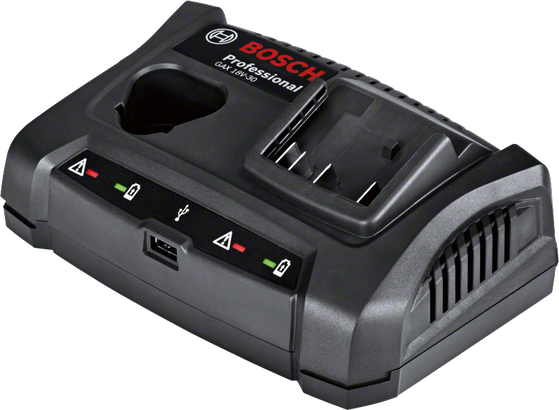

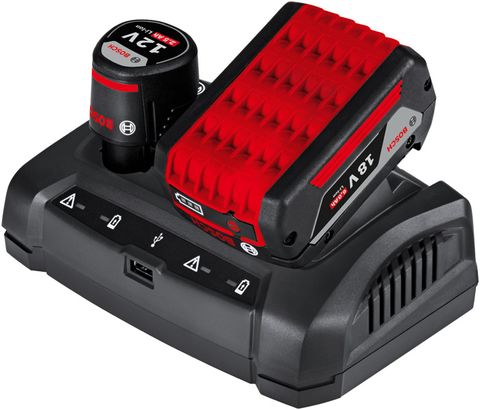

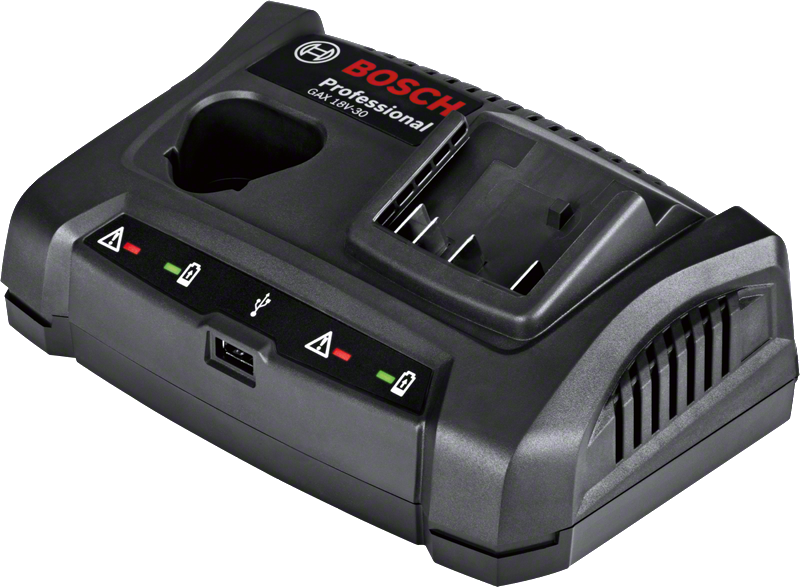

The GAX 18V-30 is a dual-bay, multi-voltage and USB all-in-one charger. It offers one bay for 10.8/12 V batteries and another one for 14.4/18 V. The batteries are charged with a charging current of 3 A. Additionally, a USB charger for fast charging of your smartphone or tablet with a charging current of 2.1 A is integrated. This sequential charger fits all Bosch Professional 12 V and 18 V batteries.

Additional Information

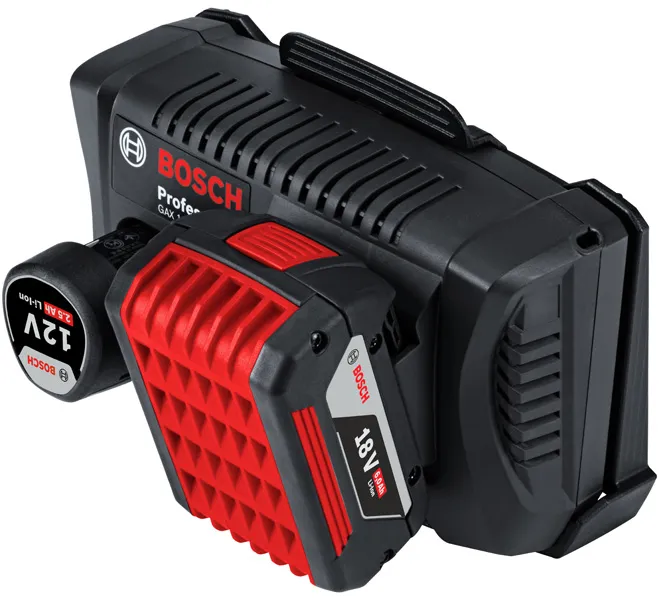

Additionally the GAX 18V-30 is equipped with a wall-mounting option.
