Charger
The most important data |
|
---|---|
Battery charging voltage | 14.4 – 18 V |
Charge current* | 8 A |

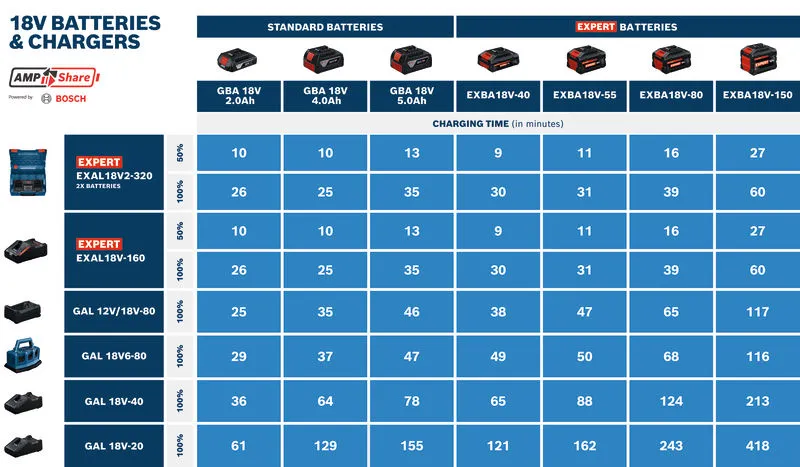

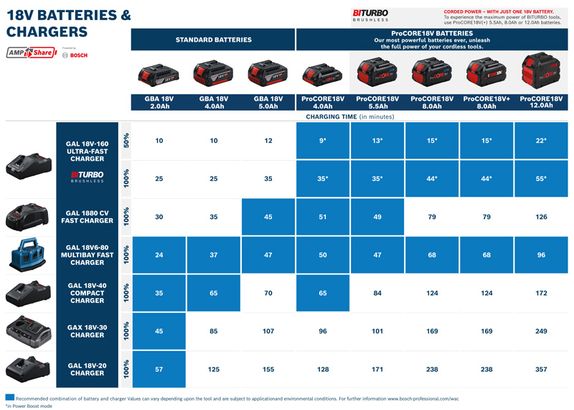

Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.* | 16/24 min |
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.* | 23/37 min |
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.* | 28/47 min |
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.* | 32/57 min |

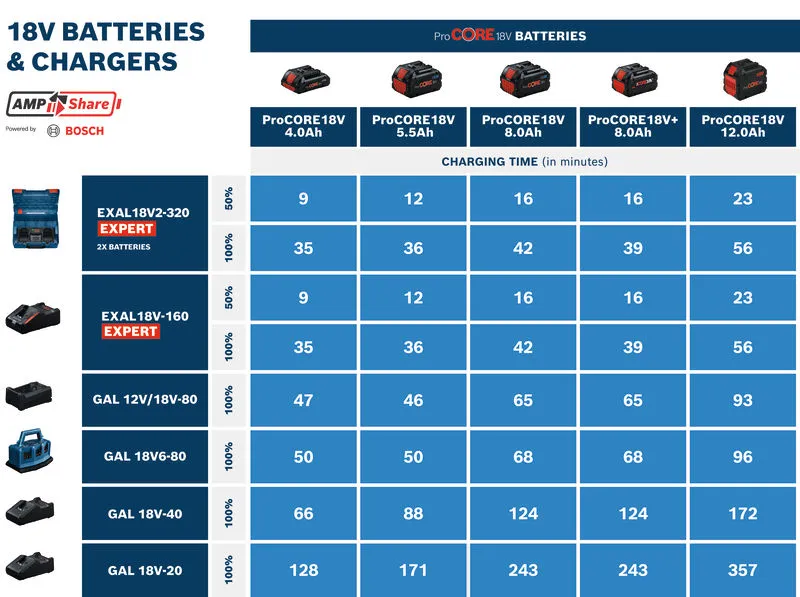

Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.* | 32/50 min |
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.* | 42/68 min |
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.* | 65/96 min |
Weight* | 1.8 kg |

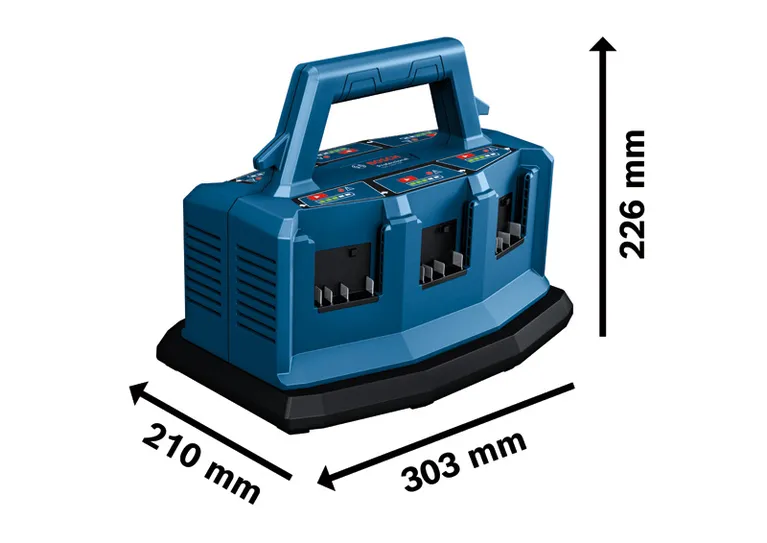

Packaging dimensions (width x length x height) | 210 x 303 x 226 mm |
Battery voltage | 18.0 V |
* You can find more information about the deviations in the following link:

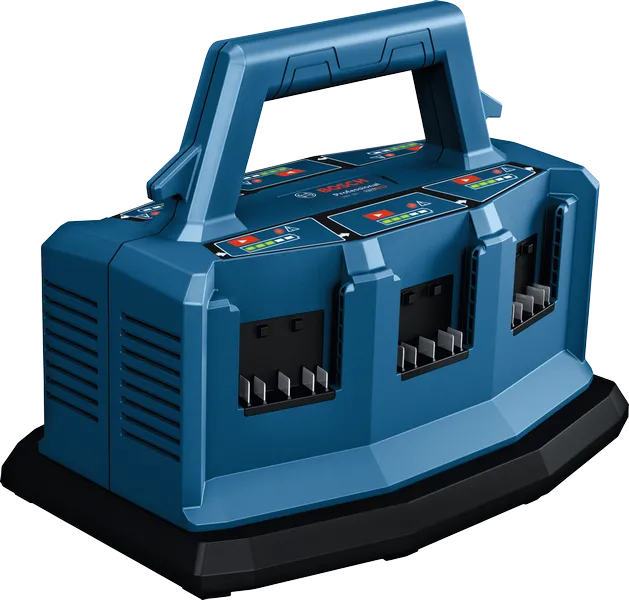

The GAL 18V6-80 offers continuous charging on the job or overnight in two cycles. The first cycle charges up to six batteries sequentially up to 80%. Cycle two then completes the process, charging all batteries to 100%. Thanks to an 8A charging current, ProCORE18V 8.0Ah batteries load up to 80% in just 42 minutes. Charge-level indicators with 5 LEDs on each charging interface display precise charging progress. With a Priority Start Button for each interface, the cycle can be interrupted to start charging the selected battery immediately. It is compatible with all Bosch Professional 18 V batteries (Professional 18V System).
Fixing the multi-bay charger to an L-BOXX avoids potentially harmful movements when transporting. The charger's handle features pegs that allow its cable to be wound neatly in place for storage and safe transportation.
