Masonry & Concrete Drill Bits
PRO
Object #200409004: 2608833808N_bo_pro_u_f_1
Object #200409003: 2608833808N_bo_pro_p_f_1
Old packaging
PRO SDS plus-5X

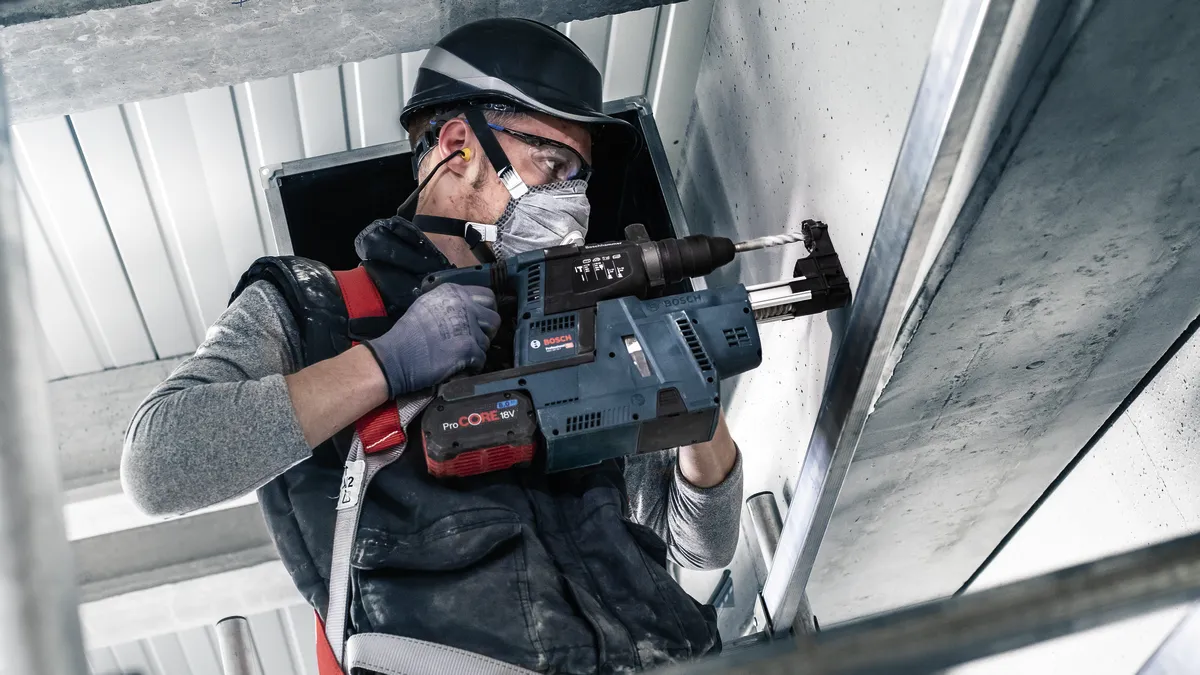

Object #200456495: 3077726_app_web_1
Object #200456496: 3077726_app_web_2
Object #200456497: 3077726_app_web_3

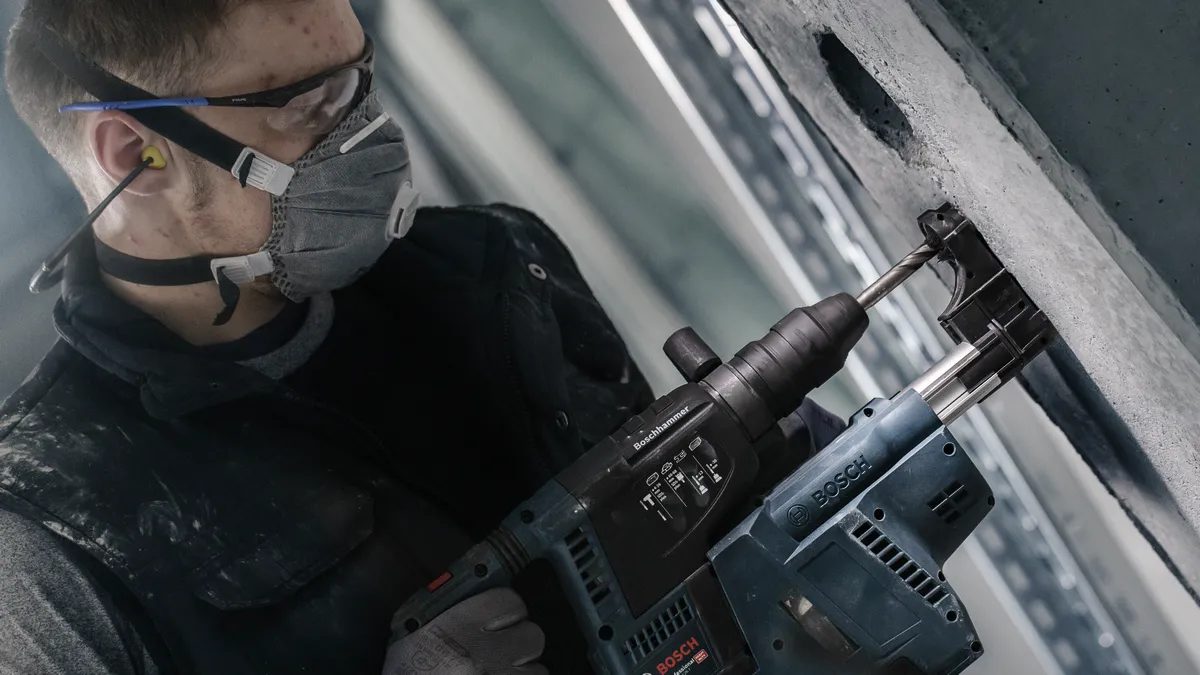

Object #200456498: 3077726_app_web_4

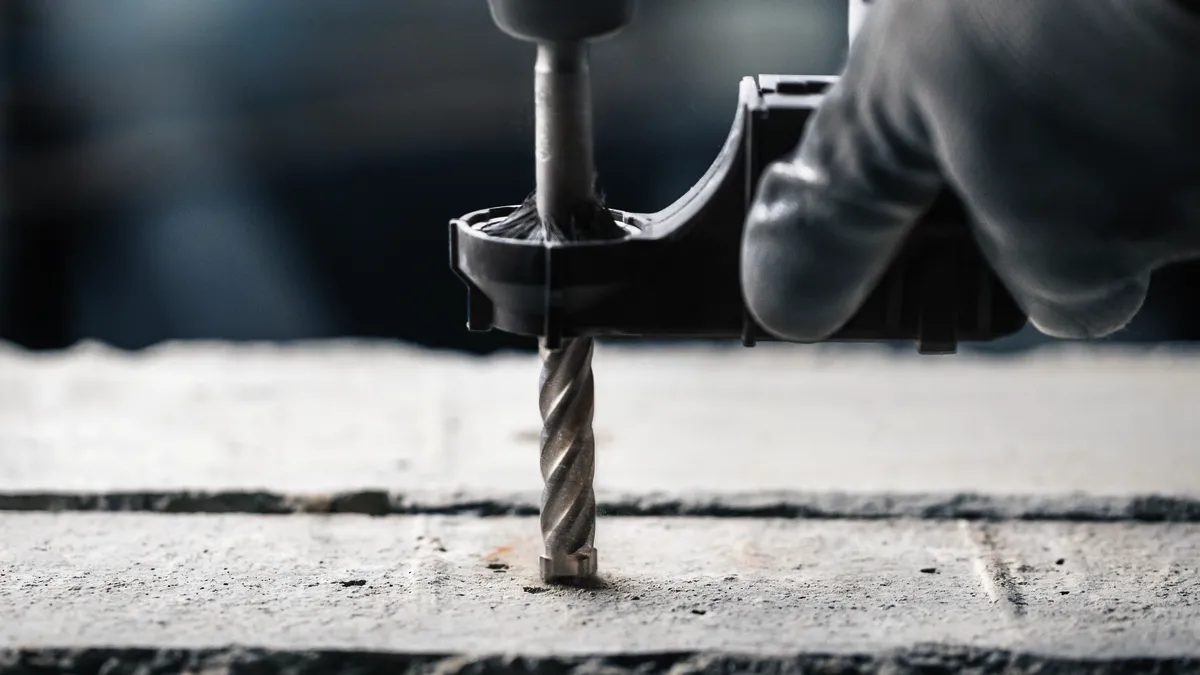

Object #200456499: 3077726_app_web_5
Object #200409004: 2608833808N_bo_pro_u_f_1
Object #200409003: 2608833808N_bo_pro_p_f_1
PRO SDS plus-5X
PRO SDS plus-5X
Object #200456495: 3077726_app_web_1
Object #200456496: 3077726_app_web_2
Object #200456497: 3077726_app_web_3
Object #200456498: 3077726_app_web_4
Object #200456499: 3077726_app_web_5

PRO SDS plus-5X Hammer Drill Bit

For rotary hammer drills

PRO SDS plus-5X

Lasts up to 1.5x longer than a Bosch SDS plus-1 Drill Bit

Test results
  • Long Life drilling in reinforced concrete
  • High-quality, tough tungsten carbide ensures strength and durability

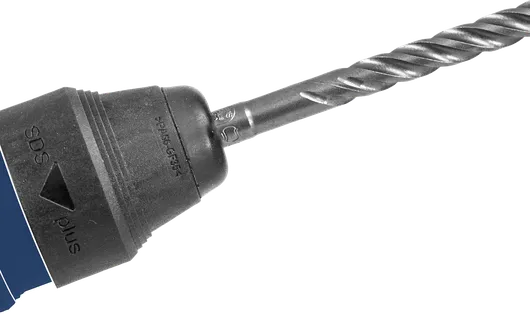

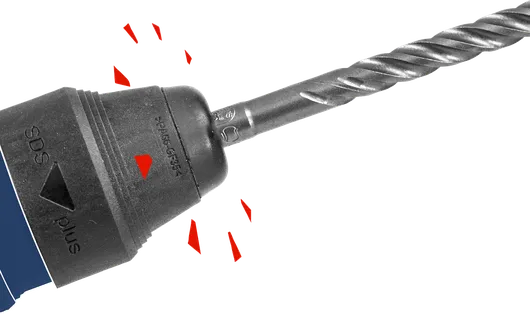

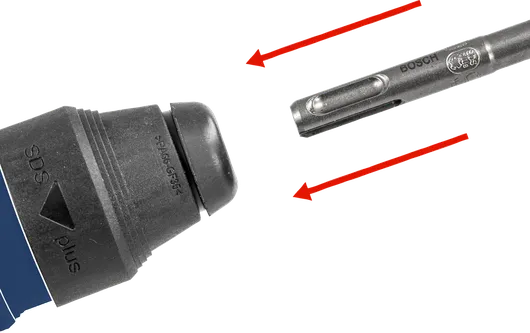

  • Fits all SDS plus rotary hammer drills
  • May come in old design

Materials

Reinforced concrete
Concrete
Lime and sand bricks
Solid brick
Hard stone

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Select options

Diameter (D) mm 27 options

Working length mm 8 options

Total length mm 13 options

Choose a pack size 2 options

Available product options (177)
PRO SDS plus-5X Hammer Drill Bit
from

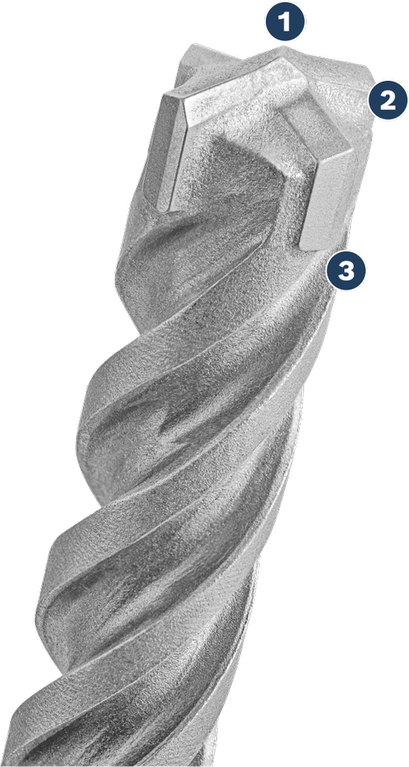

Long Life drilling in reinforced concrete

Long Life drilling in reinforced concrete
  • 1

    High-quality, tough tungsten carbide ensures strength and durability

  • 2

    4-cutter head drills through rebar effectively

  • 3

    4-flute design for efficient dust reduction

PRO
Advantage

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

PRO SDS plus-5X Hammer Drill Bit for Long Life Drilling in Reinforced Concrete

Reinforced concrete is a common material in infrastructure, commercial and domestic construction, and workers such as electricians, plumbers or HVAC installers often need to drill into it. PRO SDS plus-5X Hammer Drill Bits are designed for this tough task, with a hardy 4-cutter design that doesn't jam or break when hitting rebar.

View more

Product Options

Available product options: 177

Part number Diameter (D) mm Working length mm Total length mm Diameter (D) Inch Pack quantity
2 608 833 771 5.00 50 110 - 1 Pcs Find a local dealer
2 608 833 772 5.00 100 160 - 1 Pcs Find a local dealer
2 608 833 773 5.00 150 210 - 1 Pcs Find a local dealer
2 608 833 774 5.50 50 110 - 1 Pcs Find a local dealer
2 608 833 775 5.50 100 160 - 1 Pcs Find a local dealer
2 608 833 776 5.50 150 210 - 1 Pcs Find a local dealer
2 608 833 777 6.00 50 110 - 1 Pcs Find a local dealer
2 608 833 778 6.00 100 160 - 1 Pcs Find a local dealer
2 608 833 779 6.00 150 210 - 1 Pcs Find a local dealer
2 608 833 780 6.00 200 260 - 1 Pcs Find a local dealer
2 608 833 781 6.50 50 110 - 1 Pcs Find a local dealer
2 608 833 782 6.50 100 160 - 1 Pcs Find a local dealer
2 608 833 783 6.50 150 210 - 1 Pcs Find a local dealer
2 608 833 784 6.50 200 260 - 1 Pcs Find a local dealer
2 608 833 785 7.00 50 110 - 1 Pcs Find a local dealer
2 608 833 786 7.00 100 160 - 1 Pcs Find a local dealer
2 608 833 787 7.00 150 210 - 1 Pcs Find a local dealer
2 608 833 788 8.00 50 110 - 1 Pcs Find a local dealer
2 608 833 789 8.00 100 160 - 1 Pcs Find a local dealer
2 608 833 790 8.00 150 210 - 1 Pcs Find a local dealer
2 608 833 791 8.00 200 260 - 1 Pcs Find a local dealer
2 608 833 792 8.00 250 310 - 1 Pcs Find a local dealer
2 608 833 793 8.00 300 360 - 1 Pcs Find a local dealer
2 608 833 794 8.00 400 460 - 1 Pcs Find a local dealer
2 608 833 795 9.00 100 160 - 1 Pcs Find a local dealer
2 608 833 796 9.00 150 210 - 1 Pcs Find a local dealer
2 608 833 797 10.00 50 110 - 1 Pcs Find a local dealer
2 608 833 798 10.00 100 160 - 1 Pcs Find a local dealer
2 608 833 799 10.00 150 210 - 1 Pcs Find a local dealer
2 608 833 800 10.00 200 260 - 1 Pcs Find a local dealer
2 608 833 801 10.00 250 310 - 1 Pcs Find a local dealer
2 608 833 802 10.00 300 360 - 1 Pcs Find a local dealer
2 608 833 803 10.00 400 460 - 1 Pcs Find a local dealer
2 608 833 804 11.00 100 160 - 1 Pcs Find a local dealer
2 608 833 805 11.00 150 210 - 1 Pcs Find a local dealer
2 608 833 806 11.00 200 260 - 1 Pcs Find a local dealer
2 608 833 807 12.00 100 160 - 1 Pcs Find a local dealer
2 608 833 808 12.00 150 210 - 1 Pcs Find a local dealer
2 608 833 809 12.00 200 260 - 1 Pcs Find a local dealer
2 608 833 810 12.00 250 310 - 1 Pcs Find a local dealer
2 608 833 811 12.00 300 360 - 1 Pcs Find a local dealer
2 608 833 812 12.00 400 460 - 1 Pcs Find a local dealer
2 608 833 813 13.00 100 160 - 1 Pcs Find a local dealer
2 608 833 814 13.00 150 210 - 1 Pcs Find a local dealer
2 608 833 815 13.00 200 260 - 1 Pcs Find a local dealer
2 608 833 816 14.00 100 160 - 1 Pcs Find a local dealer
2 608 833 817 14.00 150 210 - 1 Pcs Find a local dealer
2 608 833 818 14.00 200 260 - 1 Pcs Find a local dealer
2 608 833 819 14.00 250 310 - 1 Pcs Find a local dealer
2 608 833 820 14.00 300 360 - 1 Pcs Find a local dealer
2 608 833 821 14.00 400 460 - 1 Pcs Find a local dealer
2 608 833 822 15.00 100 160 - 1 Pcs Find a local dealer
2 608 833 823 15.00 200 260 - 1 Pcs Find a local dealer
2 608 833 824 15.00 400 460 - 1 Pcs Find a local dealer
2 608 833 825 16.00 150 210 - 1 Pcs Find a local dealer
2 608 833 826 16.00 200 260 - 1 Pcs Find a local dealer
2 608 833 827 16.00 250 310 - 1 Pcs Find a local dealer
2 608 833 828 16.00 300 360 - 1 Pcs Find a local dealer
2 608 833 829 16.00 400 460 - 1 Pcs Find a local dealer

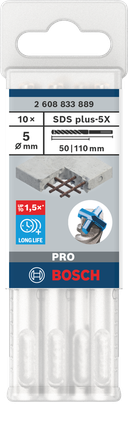

2 608 833 889 5.00 50 110 - 10 Pcs Find a local dealer

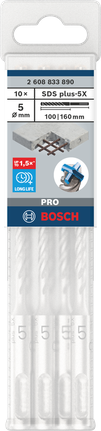

2 608 833 890 5.00 100 160 - 10 Pcs Find a local dealer

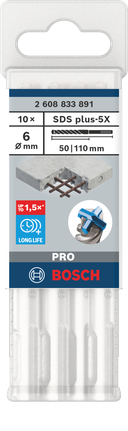

2 608 833 891 6.00 50 110 - 10 Pcs Find a local dealer

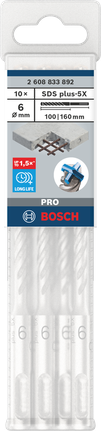

2 608 833 892 6.00 100 160 - 10 Pcs Find a local dealer
2 608 833 893 6.00 150 210 - 10 Pcs Find a local dealer
2 608 833 894 6.50 100 160 - 10 Pcs Find a local dealer
2 608 833 895 6.50 150 210 - 10 Pcs Find a local dealer
2 608 833 896 6.50 200 260 - 10 Pcs Find a local dealer

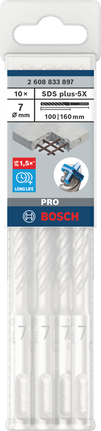

2 608 833 897 7.00 100 160 - 10 Pcs Find a local dealer

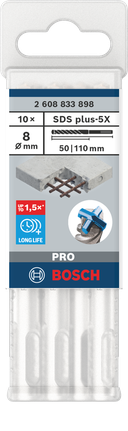

2 608 833 898 8.00 50 110 - 10 Pcs Find a local dealer
2 608 833 899 8.00 100 160 - 10 Pcs Find a local dealer
2 608 833 900 8.00 150 210 - 10 Pcs Find a local dealer
2 608 833 901 8.00 200 260 - 10 Pcs Find a local dealer

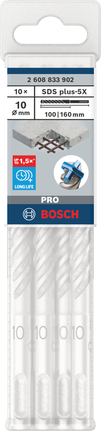

2 608 833 902 10.00 100 160 - 10 Pcs Find a local dealer
2 608 833 903 10.00 150 210 - 10 Pcs Find a local dealer
2 608 833 904 10.00 200 260 - 10 Pcs Find a local dealer
2 608 833 905 12.00 100 160 - 10 Pcs Find a local dealer
2 608 833 906 12.00 150 210 - 10 Pcs Find a local dealer
2 608 833 907 12.00 200 260 - 10 Pcs Find a local dealer

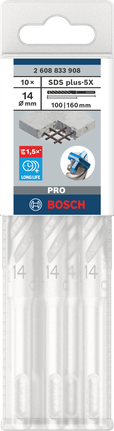

2 608 833 908 14.00 100 160 - 10 Pcs Find a local dealer
2 608 833 909 16.00 150 210 - 10 Pcs Find a local dealer
2 608 836 604 4.00 50 110 - 1 Pcs Find a local dealer
2 608 836 605 4.00 100 160 - 1 Pcs Find a local dealer
2 608 836 606 5.00 200 260 - 1 Pcs Find a local dealer
2 608 836 607 5.00 250 310 - 1 Pcs Find a local dealer
2 608 836 608 5.00 400 460 - 1 Pcs Find a local dealer
2 608 836 609 5.50 200 260 - 1 Pcs Find a local dealer
2 608 836 610 5.50 250 310 - 1 Pcs Find a local dealer
2 608 836 611 5.50 400 460 - 1 Pcs Find a local dealer
2 608 836 612 6.00 250 310 - 1 Pcs Find a local dealer
2 608 836 613 6.00 400 460 - 1 Pcs Find a local dealer
2 608 836 614 6.50 250 310 - 1 Pcs Find a local dealer
2 608 836 615 7.00 200 260 - 1 Pcs Find a local dealer
2 608 836 616 8.00 550 610 - 1 Pcs Find a local dealer
2 608 836 617 9.50 100 160 - 1 Pcs Find a local dealer
2 608 836 618 10.00 550 610 - 1 Pcs Find a local dealer
2 608 836 620 12.00 550 610 - 1 Pcs Find a local dealer
2 608 836 622 12.70 100 160 - 1 Pcs Find a local dealer
2 608 836 623 14.00 550 610 - 1 Pcs Find a local dealer
2 608 836 625 14.30 100 160 - 1 Pcs Find a local dealer
2 608 836 626 16.00 550 610 - 1 Pcs Find a local dealer
2 608 836 628 17.00 150 210 - 1 Pcs Find a local dealer
2 608 836 629 17.00 250 310 - 1 Pcs Find a local dealer
2 608 836 630 17.50 100 160 - 1 Pcs Find a local dealer
2 608 836 631 18.00 150 200 - 1 Pcs Find a local dealer
2 608 836 632 18.00 250 300 - 1 Pcs Find a local dealer
2 608 836 633 18.00 400 450 - 1 Pcs Find a local dealer
2 608 836 634 18.00 550 600 - 1 Pcs Find a local dealer
2 608 836 636 19.00 150 200 - 1 Pcs Find a local dealer
2 608 836 637 19.00 250 300 - 1 Pcs Find a local dealer
2 608 836 638 19.00 400 450 - 1 Pcs Find a local dealer
2 608 836 639 20.00 150 200 - 1 Pcs Find a local dealer
2 608 836 640 20.00 250 300 - 1 Pcs Find a local dealer
2 608 836 641 20.00 400 450 - 1 Pcs Find a local dealer
2 608 836 642 20.00 550 600 - 1 Pcs Find a local dealer
2 608 836 644 22.00 200 250 - 1 Pcs Find a local dealer
2 608 836 645 22.00 400 450 - 1 Pcs Find a local dealer
2 608 836 646 22.00 550 600 - 1 Pcs Find a local dealer
2 608 836 647 24.00 200 250 - 1 Pcs Find a local dealer
2 608 836 648 24.00 400 450 - 1 Pcs Find a local dealer
2 608 836 649 25.00 200 250 - 1 Pcs Find a local dealer
2 608 836 650 25.00 400 450 - 1 Pcs Find a local dealer
2 608 836 651 26.00 200 250 - 1 Pcs Find a local dealer
2 608 836 652 26.00 400 450 - 1 Pcs Find a local dealer
2 608 836 653 - - - 5/32 1 Pcs Find a local dealer
2 608 836 654 - - - 5/32 1 Pcs Find a local dealer
2 608 836 655 - - - 3/16 1 Pcs Find a local dealer
2 608 836 656 - - - 3/16 1 Pcs Find a local dealer
2 608 836 657 - - - 3/16 1 Pcs Find a local dealer
2 608 836 658 - - - 3/16 1 Pcs Find a local dealer
2 608 836 659 - - - 3/16 1 Pcs Find a local dealer
2 608 836 660 - - - 3/16 1 Pcs Find a local dealer
2 608 836 661 - - - 7/32 1 Pcs Find a local dealer
2 608 836 662 - - - 7/32 1 Pcs Find a local dealer
2 608 836 663 - - - 7/32 1 Pcs Find a local dealer
2 608 836 664 - - - 1/4 1 Pcs Find a local dealer
2 608 836 665 - - - 1/4 1 Pcs Find a local dealer
2 608 836 666 - - - 1/4 1 Pcs Find a local dealer
2 608 836 667 - - - 1/4 1 Pcs Find a local dealer
2 608 836 668 - - - 1/4 1 Pcs Find a local dealer
2 608 836 669 - - - 1/4 1 Pcs Find a local dealer
2 608 836 670 - - - 1/4 1 Pcs Find a local dealer
2 608 836 671 - - - 5/16 1 Pcs Find a local dealer
2 608 836 672 - - - 5/16 1 Pcs Find a local dealer
2 608 836 673 - - - 5/16 1 Pcs Find a local dealer
2 608 836 674 - - - 3/8 1 Pcs Find a local dealer
2 608 836 675 - - - 3/8 1 Pcs Find a local dealer
2 608 836 676 - - - 3/8 1 Pcs Find a local dealer
2 608 836 677 - - - 3/8 1 Pcs Find a local dealer
2 608 836 678 - - - 3/8 1 Pcs Find a local dealer
2 608 836 679 - - - 7/16 1 Pcs Find a local dealer
2 608 836 680 - - - 7/16 1 Pcs Find a local dealer
2 608 836 681 - - - 7/16 1 Pcs Find a local dealer
2 608 836 682 - - - 1/2 1 Pcs Find a local dealer
2 608 836 683 - - - 1/2 1 Pcs Find a local dealer
2 608 836 684 - - - 1/2 1 Pcs Find a local dealer
2 608 836 685 - - - 1/2 1 Pcs Find a local dealer
2 608 836 686 - - - 1/2 1 Pcs Find a local dealer
2 608 836 687 - - - 9/16 1 Pcs Find a local dealer
2 608 836 688 - - - 9/16 1 Pcs Find a local dealer
2 608 836 689 - - - 9/16 1 Pcs Find a local dealer
2 608 836 690 - - - 9/16 1 Pcs Find a local dealer
2 608 836 691 - - - 5/8 1 Pcs Find a local dealer
2 608 836 692 - - - 5/8 1 Pcs Find a local dealer
2 608 836 693 - - - 5/8 1 Pcs Find a local dealer
2 608 836 694 - - - 5/8 1 Pcs Find a local dealer
2 608 836 695 - - - 3/4 1 Pcs Find a local dealer
2 608 836 696 - - - 3/4 1 Pcs Find a local dealer
2 608 836 697 - - - 3/4 1 Pcs Find a local dealer
2 608 836 698 - - - 3/4 1 Pcs Find a local dealer
2 608 836 699 - - - 7/8 1 Pcs Find a local dealer
2 608 836 700 - - - 7/8 1 Pcs Find a local dealer
2 608 836 701 - - - 7/8 1 Pcs Find a local dealer
2 608 836 702 - - - 7/8 1 Pcs Find a local dealer
2 608 836 703 - - - 1 1 Pcs Find a local dealer
2 608 836 704 - - - 1 1 Pcs Find a local dealer
2 608 836 705 - - - 1 1/8 1 Pcs Find a local dealer
2 608 836 706 - - - 1 1/8 1 Pcs Find a local dealer

out of products
