General Purpose Circular Saw Blade
For corded handheld circular saws
Order number 2 608 644 586
- General Purpose Circular Saw Blade offers a long lifetime and clean results in wood and wooden materials
- Teeth are fully ground with precision, enabling neat results
- Adheres to Bosch's manufacturing standards for consistent performance and long blade lifetime
Materials
Select options
General purpose circular saw blade set 9 1/4 inch 20, 40, 60 teeth
2 608 644 586
Product Options
Available product options: 3
Expand
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 644 583 | 7 1/4 | 184 | 20 | 16 | 2 Pcs | Buy now | |
| 2 608 644 584 | 7 1/4 | 184 | 20 | 16 | 3 Pcs | Buy now | |
| 2 608 644 586 | 9 1/4 | 235 | 25 | 20; 16 | 3 Pcs | Buy now |
out of products

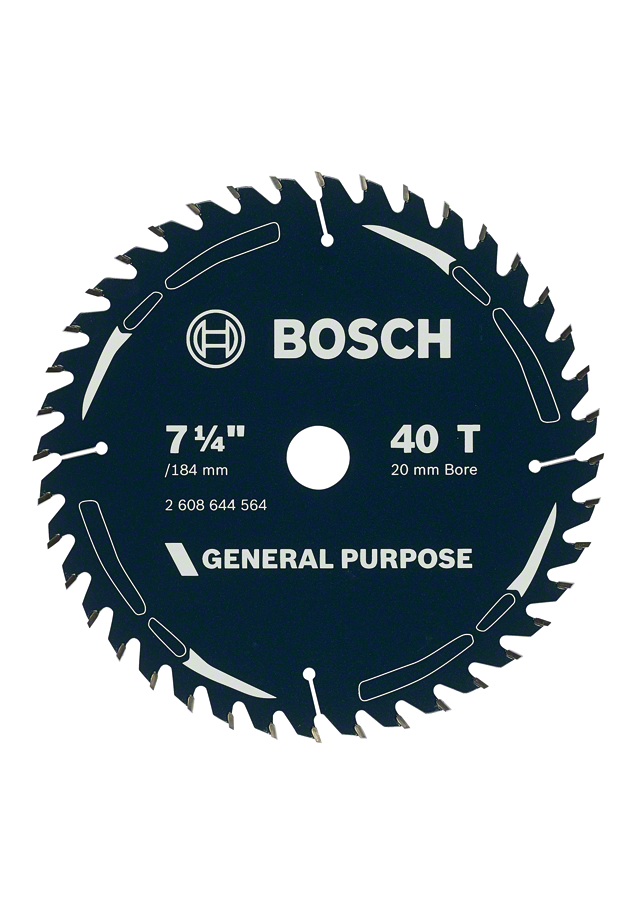

General purpose circular saw blade set 7 1/4 inch 20, 40 teeth
Part number 2608644583
Packaging type
Combined cardboard / plastic packaging, folding blister, with Euro hole
Pack quantity
2 Pcs
Details
Outer diameter inch
7 1/4
Outer diameter mm
184
Bore size mm
20
Bore with reduction ring mm
16
Bore with reduction ring inch
5/8
Width of cut (b1) mm
2.5
Number of teeth
20 / 40
Tooth shape
ATB
Max. rotation speed (RPM)
8000 / 8000
Relief angle ° β
13 / 12
General purpose circular saw blade set 7 1/4 inch 16, 24, 40 teeth
Part number 2608644584
Packaging type
Combined cardboard / plastic packaging, folding blister, with Euro hole
Pack quantity
3 Pcs
Details
Outer diameter inch
7 1/4
Outer diameter mm
184
Bore size mm
20
Bore with reduction ring mm
16
Bore with reduction ring inch
5/8
Width of cut (b1) mm
2.5
Number of teeth
16 / 24 / 40
Tooth shape
ATB
Max. rotation speed (RPM)
8000 / 8000 / 8000
Relief angle ° β
10 / 10 / 12

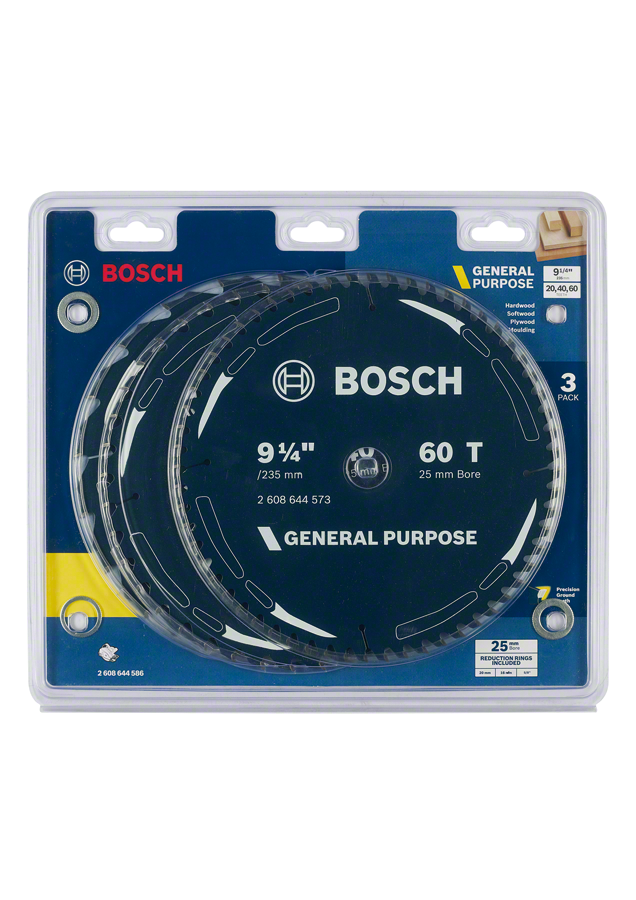

General purpose circular saw blade set 9 1/4 inch 20, 40, 60 teeth
Part number 2608644586
Packaging type
Combined cardboard / plastic packaging, folding blister, with Euro hole
Pack quantity
3 Pcs
Details
Outer diameter inch
9 1/4
Outer diameter mm
235
Bore size mm
25
Bore with reduction ring mm
20 / 16
Bore with reduction ring inch
5/8
Width of cut (b1) mm
2.5
Number of teeth
20 / 40 / 60
Tooth shape
ATB
Max. rotation speed (RPM)
6500 / 6500 / 6500
Relief angle ° β
14 / 14 / 13
