For hand-held circular saws
3 options
General Purpose Circular Saw Blade offers a long lifetime and clean results in wood and wooden materials
Available product options: 3
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 644 583 | 7 1/4 | 184 | 20 | 16 | 2 | Buy now | |
| 2 608 644 584 | 7 1/4 | 184 | 20 | 16 | 3 | Buy now | |
| 2 608 644 586 | 9 1/4 | 235 | 25 | 20 / 16 | 3 | Buy now |
out of products

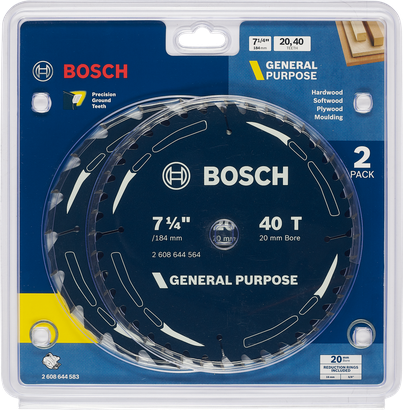

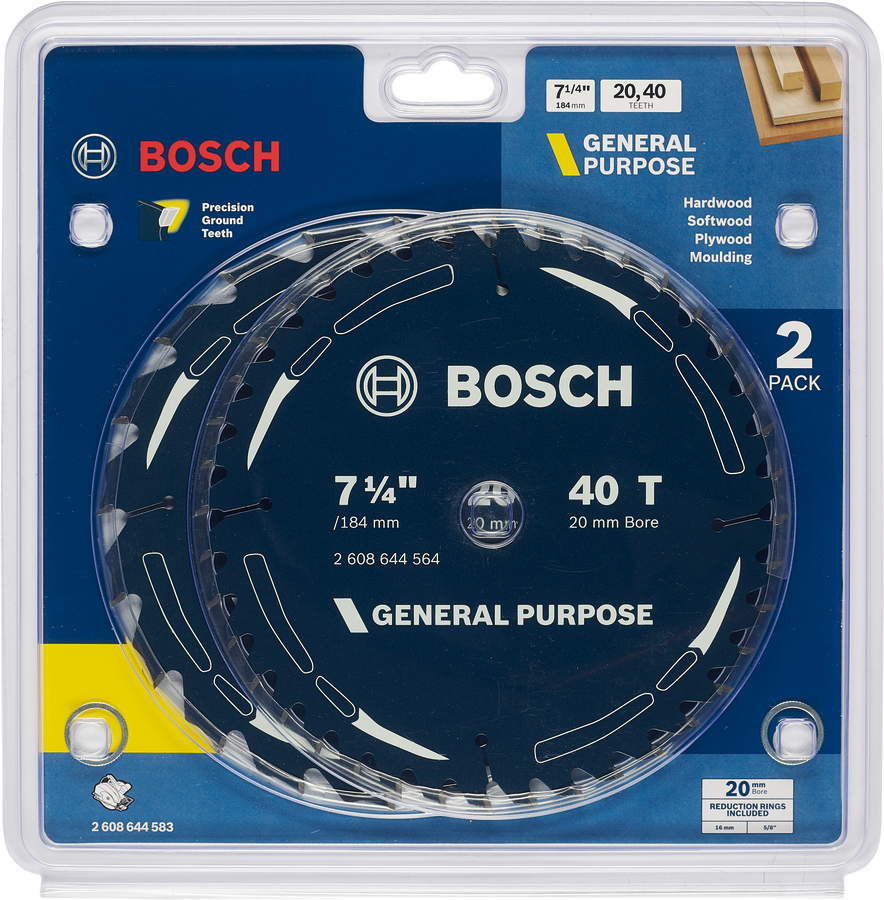

| Part number 2608644583 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 2 |
| Details | |
|---|---|
| Outer diameter inch | 7 1/4 |
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Bore with reduction ring inch | 5/8 |
| Width of cut (b1) mm | 2.5 |
| Number of teeth | 20 / 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 / 8000 |
| Relief angle ° β | 13 / 12 |
| Part number 2608644584 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 3 |
| Details | |
|---|---|
| Outer diameter inch | 7 1/4 |
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Bore with reduction ring inch | 5/8 |
| Width of cut (b1) mm | 2.5 |
| Number of teeth | 16 / 24 / 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 / 8000 / 8000 |
| Relief angle ° β | 10 / 10 / 12 |
| Part number 2608644586 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, folding blister, with Euro hole |
| Pack quantity | 3 |
| Details | |
|---|---|
| Outer diameter inch | 9 1/4 |
| Outer diameter mm | 235 |
| Bore size mm | 25 |
| Bore with reduction ring mm | 20 / 16 |
| Bore with reduction ring inch | 5/8 |
| Width of cut (b1) mm | 2.5 |
| Number of teeth | 20 / 40 / 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 / 6500 / 6500 |
| Relief angle ° β | 14 / 14 / 13 |
