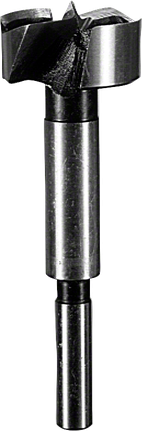

Forstner Bit
For rotary drills/drivers
- Forstner Bit has an excellent lifespan for drilling accurate-fit holes
- The tooth-edge design creates less friction and heat for increased durability
- A short centring tip with two main and one periphery (toothed-edge) cutting edges enable smooth splinter-free drilling
- Large chip-free zones for optimised chip removal and fast drilling accuracy
- 3-sided shank prevents spinning in the chuck. Manufactured to DIN 7483G, 50 HRC (min) cutter hardness
- Cylindrical shank compatible with three-jaw drill chucks
Materials
Select options
Diameter, mm
Total length, mm
Shank diameter, mm
Choose a pack size
Forstner Bit
Product Options
Available product options: 7
Expand
|
Part number
|
Shank diameter, mm
|
Diameter, mm
|
Total length, mm
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|
| 2 608 596 971 | 8 | 10.00 | 90 | 1 Pcs | Find a local dealer | |
| 2 608 596 972 | 8 | 15.00 | 90 | 1 Pcs | Find a local dealer | |
| 2 608 596 973 | 8 | 20.00 | 90 | 1 Pcs | Find a local dealer | |
| 2 608 596 974 | 8 | 25.00 | 90 | 1 Pcs | Find a local dealer | |
| 2 608 596 976 | 8 | 30.00 | 90 | 1 Pcs | Find a local dealer | |
| 2 608 596 977 | 10 | 35.00 | 90 | 1 Pcs | Find a local dealer | |
| 2 608 596 978 | 10 | 40.00 | 90 | 1 Pcs | Find a local dealer |
out of products
Forstner drill bits, DIN 7483 G
Part number 2608596971
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
8
Diameter, mm
10.00
Total length, mm
90
Forstner drill bits, DIN 7483 G
Part number 2608596972
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
8
Diameter, mm
15.00
Total length, mm
90
Forstner drill bits, DIN 7483 G
Part number 2608596973
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
8
Diameter, mm
20.00
Total length, mm
90
Forstner drill bits, DIN 7483 G
Part number 2608596974
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
8
Diameter, mm
25.00
Total length, mm
90
Forstner drill bits, DIN 7483 G
Part number 2608596976
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
8
Diameter, mm
30.00
Total length, mm
90

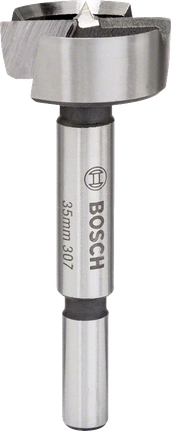

Forstner drill bits, DIN 7483 G
Part number 2608596977
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
10
Diameter, mm
35.00
Total length, mm
90

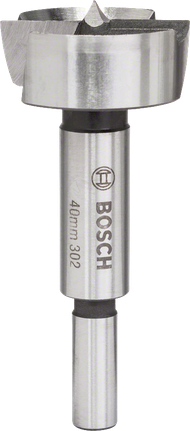

Forstner drill bits, DIN 7483 G
Part number 2608596978
Packaging type
Watchbox with Euro hole
Pack quantity
1 Pcs
Details
Shank diameter, mm
10
Diameter, mm
40.00
Total length, mm
90
