Masonry & Concrete Drill Bits
![Object #200177922: 2608831011_bo_eco_p_f_1]( "Object #200177922: 2608831011_bo_eco_p_f_1")
![Object #200221940: PT-AC_sds_19484]( "Object #200221940: PT-AC_sds_19484")
![Object #200221941: PT-AC_sds_19529]( "Object #200221941: PT-AC_sds_19529")
SDS plus-3 Drill Bit
For rotary hammers
SDS plus-3 Drill Bit offers durability while drilling concrete
- 4-flute dura design provides effective dust removal for increased endurance
- High-alloy steel produced with optimised hardening technology to withstand wear

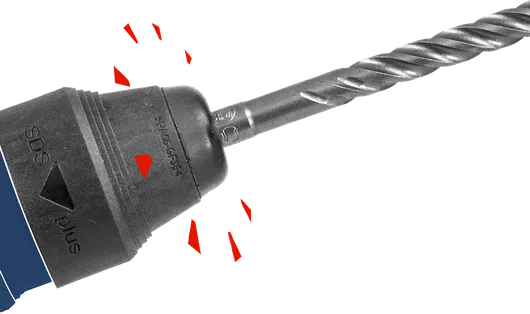

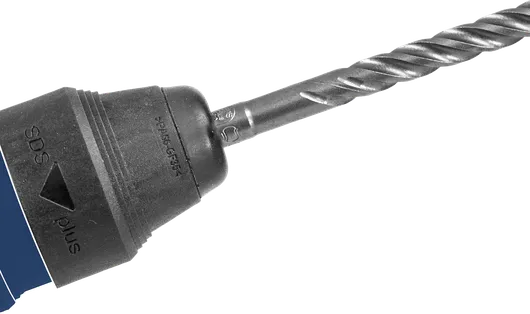

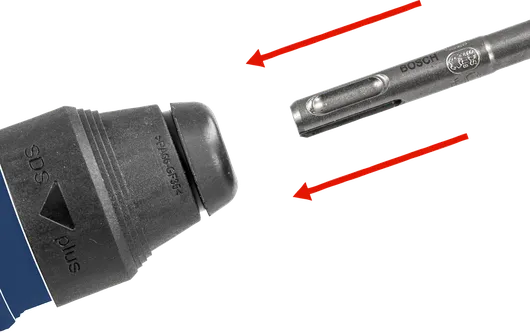

- Fits all SDS plus rotary hammers
Materials
Select options
Diameter (D) mm
Select one option from the listed items below
Working length mm
Select one option from the listed items below
Total length mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Diameter (D) mm 13 options
Working length mm 6 options
Total length mm 9 options
Choose a pack size 2 options
SDS plus-3 Drill Bit
For rotary hammers
Fits tools of most brands
Fits all SDS plus rotary hammers
for Drilling Concrete
SDS plus-3 Drill Bit offers durability while drilling concrete
- High-alloy steel produced with optimised hardening technology to withstand wear
- Indented cutting edges made from a Bosch-controlled carbide blend provide additional resistance
- PGM guarantee in compliance with tight tolerances, exactly drilled holes and firm hold of fixings
View more
Product Options
Available product options: 67
|
Part number
|
Diameter mm
|
Working length mm
|
Total length mm
|
Set dimension(s) mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 831 000 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 002 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 003 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 005 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 006 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 008 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 009 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 011 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 012 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 013 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 016 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 018 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 019 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 020 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 021 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 024 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 025 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 026 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 027 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 030 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 032 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 033 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 034 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 036 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 039 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 040 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 044 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 045 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 048 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 049 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 052 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 053 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 159 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 161 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 162 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 164 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 165 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 166 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 167 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 168 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 170 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 171 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 172 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 175 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 177 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 178 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 179 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 180 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 183 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 184 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 185 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 186 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 189 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 191 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 192 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 193 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 195 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 198 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 199 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 403 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 404 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 407 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 408 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 411 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 412 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 831 414 | - | - | - | - | 1 Pcs | Find a local dealer | |
| 2 608 832 724 | 5.0; 5.5; 6.0; 6.5; 6.5; 8.0; 10.0; 12.0 | 50; 50; 50; 50; 110; 110; 110; 110 | 110; 110; 110; 110; 160; 160; 160; 160 | 17.5 x 8.4 x 3.9 | 8 Pcs | Buy now |
out of products
Hammer drill bit SDS plus-3
Part number 2608831000
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
4.00
Working length mm
50
Total length mm
110
Hammer drill bit SDS plus-3
Part number 2608831002
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.00
Working length mm
50
Total length mm
110
Hammer drill bit SDS plus-3
Part number 2608831003
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.00
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831005
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.50
Working length mm
50
Total length mm
110
Hammer drill bit SDS plus-3
Part number 2608831006
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.50
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831008
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.00
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831009
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.00
Working length mm
150
Total length mm
210

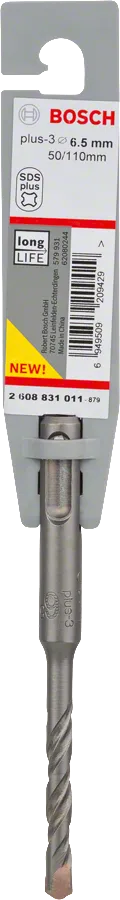

Hammer drill bit SDS plus-3
Part number 2608831011
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.50
Working length mm
50
Total length mm
110
Hammer drill bit SDS plus-3
Part number 2608831012
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.50
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831013
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.50
Working length mm
150
Total length mm
210
Hammer drill bit SDS plus-3
Part number 2608831016
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
7.00
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831018
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
50
Total length mm
110
Hammer drill bit SDS plus-3
Part number 2608831019
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831020
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
150
Total length mm
210
Hammer drill bit SDS plus-3
Part number 2608831021
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
200
Total length mm
260
Hammer drill bit SDS plus-3
Part number 2608831024
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
50
Total length mm
110
Hammer drill bit SDS plus-3
Part number 2608831025
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831026
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
150
Total length mm
210
Hammer drill bit SDS plus-3
Part number 2608831027
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
200
Total length mm
260
Hammer drill bit SDS plus-3
Part number 2608831030
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
400
Total length mm
460
Hammer drill bit SDS plus-3
Part number 2608831032
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
100
Total length mm
160
Hammer drill bit SDS plus-3
Part number 2608831033
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
150
Total length mm
210
Hammer drill bit SDS plus-3
Part number 2608831034
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
200
Total length mm
260
Hammer drill bit SDS plus-3
Part number 2608831036
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
400
Total length mm
460
Hammer drill bit SDS plus-3
Part number 2608831039
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
14.00
Working length mm
150
Total length mm
210
Hammer drill bit SDS plus-3
Part number 2608831040
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
14.00
Working length mm
200
Total length mm
260
Hammer drill bit SDS plus-3
Part number 2608831044
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
16.00
Working length mm
150
Total length mm
210
Hammer drill bit SDS plus-3
Part number 2608831045
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
16.00
Working length mm
250
Total length mm
310
Hammer drill bit SDS plus-3
Part number 2608831048
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
18.00
Working length mm
150
Total length mm
200
Hammer drill bit SDS plus-3
Part number 2608831049
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
18.00
Working length mm
250
Total length mm
300
Hammer drill bit SDS plus-3
Part number 2608831052
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
20.00
Working length mm
150
Total length mm
200
Hammer drill bit SDS plus-3
Part number 2608831053
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
20.00
Working length mm
250
Total length mm
300
SDS plus-3 hammer drill bit
Part number 2608831159
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
4.00
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
4.00
SDS plus-3 hammer drill bit
Part number 2608831161
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.00
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
5.00
SDS plus-3 hammer drill bit
Part number 2608831162
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.00
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
5.00
SDS plus-3 hammer drill bit
Part number 2608831164
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.50
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
5.50
SDS plus-3 hammer drill bit
Part number 2608831165
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
5.50
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
5.50
SDS plus-3 hammer drill bit
Part number 2608831166
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.00
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
6.00
SDS plus-3 hammer drill bit
Part number 2608831167
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.00
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
6.00
SDS plus-3 hammer drill bit
Part number 2608831168
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.00
Working length mm
150
Total length mm
210
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
6.00
SDS plus-3 hammer drill bit
Part number 2608831170
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.50
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
6.50
SDS plus-3 hammer drill bit
Part number 2608831171
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.50
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
6.50
SDS plus-3 hammer drill bit
Part number 2608831172
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
6.50
Working length mm
150
Total length mm
210
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
6.50
SDS plus-3 hammer drill bit
Part number 2608831175
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
7.00
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
7.00
SDS plus-3 hammer drill bit
Part number 2608831177
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
8.00
SDS plus-3 hammer drill bit
Part number 2608831178
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
8.00
SDS plus-3 hammer drill bit
Part number 2608831179
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
150
Total length mm
210
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
8.00
SDS plus-3 hammer drill bit
Part number 2608831180
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
8.00
Working length mm
200
Total length mm
260
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
8.00
SDS plus-3 hammer drill bit
Part number 2608831183
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
50
Total length mm
110
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
10.00
SDS plus-3 hammer drill bit
Part number 2608831184
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
100
Total length mm
160
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
10.00
SDS plus-3 hammer drill bit
Part number 2608831185
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
150
Total length mm
210
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
10.00
SDS plus-3 hammer drill bit
Part number 2608831186
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
200
Total length mm
260
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
10.00
SDS plus-3 hammer drill bit
Part number 2608831189
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
10.00
Working length mm
400
Total length mm
460
Outer diameter mm
10
Shank diameter (d) mm
10
Width across flats (d) mm
10.00
SDS plus-3 hammer drill bit
Part number 2608831191
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
100
Total length mm
160
Outer diameter mm
12
Shank diameter (d) mm
10
Width across flats (d) mm
12.00
SDS plus-3 hammer drill bit
Part number 2608831192
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
150
Total length mm
210
Outer diameter mm
12
Shank diameter (d) mm
10
Width across flats (d) mm
12.00
SDS plus-3 hammer drill bit
Part number 2608831193
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
200
Total length mm
260
Outer diameter mm
12
Shank diameter (d) mm
10
Width across flats (d) mm
12.00
SDS plus-3 hammer drill bit
Part number 2608831195
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
12.00
Working length mm
400
Total length mm
460
Outer diameter mm
12
Shank diameter (d) mm
10
Width across flats (d) mm
12.00
SDS plus-3 hammer drill bit
Part number 2608831198
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
14.00
Working length mm
150
Total length mm
210
Outer diameter mm
14
Shank diameter (d) mm
10
Width across flats (d) mm
14.00
SDS plus-3 hammer drill bit
Part number 2608831199
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
14.00
Working length mm
200
Total length mm
260
Outer diameter mm
14
Shank diameter (d) mm
10
Width across flats (d) mm
14.00
SDS plus-3 hammer drill bit
Part number 2608831403
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
16.00
Working length mm
150
Total length mm
210
Outer diameter mm
16
Shank diameter (d) mm
10
Width across flats (d) mm
16.00
SDS plus-3 hammer drill bit
Part number 2608831404
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
16.00
Working length mm
250
Total length mm
310
Outer diameter mm
16
Shank diameter (d) mm
10
Width across flats (d) mm
16.00
SDS plus-3 hammer drill bit
Part number 2608831407
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
18.00
Working length mm
150
Total length mm
200
Outer diameter mm
18
Shank diameter (d) mm
10
Width across flats (d) mm
18.00
SDS plus-3 hammer drill bit
Part number 2608831408
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
18.00
Working length mm
250
Total length mm
300
Outer diameter mm
18
Shank diameter (d) mm
10
Width across flats (d) mm
18.00
SDS plus-3 hammer drill bit
Part number 2608831411
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
20.00
Working length mm
150
Total length mm
200
Outer diameter mm
20
Shank diameter (d) mm
10
Width across flats (d) mm
20.00
SDS plus-3 hammer drill bit
Part number 2608831412
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
20.00
Working length mm
250
Total length mm
300
Outer diameter mm
20
Shank diameter (d) mm
10
Width across flats (d) mm
20.00
SDS plus-3 hammer drill bit
Part number 2608831414
Packaging type
Plastic packaging, hanger, other type of suspension
Pack quantity
1 Pcs
Details
Diameter mm
-
Working length mm
-
Total length mm
-
Set dimension(s) mm
-
Diameter (D) mm
20.00
Working length mm
400
Total length mm
450
Outer diameter mm
20
Shank diameter (d) mm
10
Width across flats (d) mm
20.00
SDS plus-3 hammer drill bits 8pcs set
Part number 2608832724
Packaging type
Combined cardboard / plastic packaging, folding blister, with Euro hole
Pack quantity
8 Pcs
Details
Diameter mm
5.0 / 5.5 / 6.0 / 6.5 / 6.5 / 8.0 / 10.0 / 12.0
Working length mm
50 / 50 / 50 / 50 / 110 / 110 / 110 / 110
Total length mm
110 / 110 / 110 / 110 / 160 / 160 / 160 / 160
Set dimension(s) mm
17.5 x 8.4 x 3.9
Shank diameter mm
10
