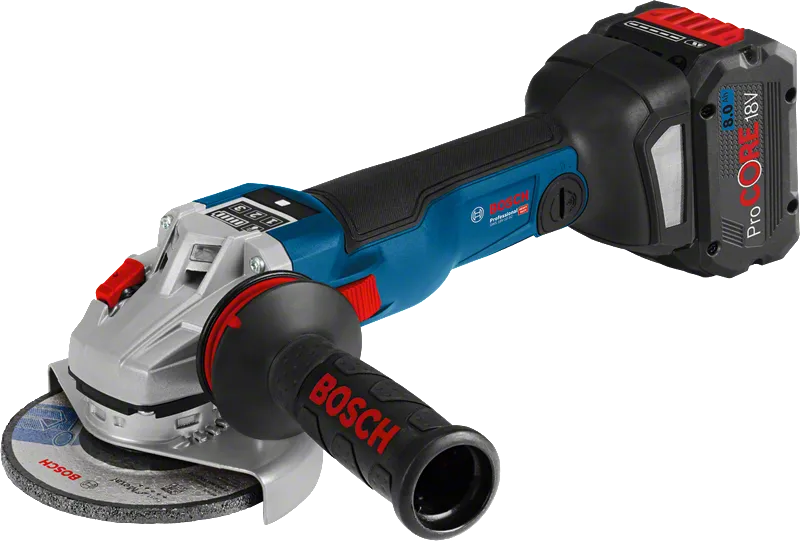

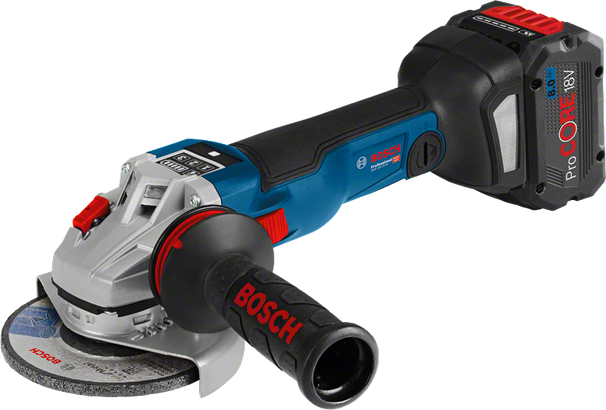

Cordless Angle Grinder
GWS 18V-10 SC Professional

  • New
in L-BOXX with flange

Improved power level and tool control in the 18 V category

Print

The Professional 18V System.
Ultimate performance.
Maximum freedom.
Discover more!
More

Technical data

The most important data
No-load speed 4,500 – 9,000 rpm
Battery voltage 18 V
Grinding spindle thread M 14
Bore size, diameter 22.23 mm
Weight excl. battery 2 kg
Packaging dimensions (width x length x height) 360 x 446 x 155 mm
Weight incl. battery 2.8 kg
Tools
Grinding/cutting disc, diameter 125 mm
Rubber backing pad, diameter 125 mm
Noise/vibration information

Total vibration values (vector sum of three directions)
Sound pressure level 79 dB(A)
Sound power level 90 dB(A)
Uncertainty K 3 dB
Surface grinding (roughing)
Vibration emission value ah 6 m/s²
Uncertainty K 1.5 m/s²
Sanding with sanding sheet
Vibration emission value ah 3.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Improved power level and tool control in the 18 V category

  • Small angle grinder delivers power equal to a 1,000 W corded grinder via brushless motor and ProCORE18V battery
  • Drop Control, KickBack Control, and intelligent brake system provide maximum user protection and convenience

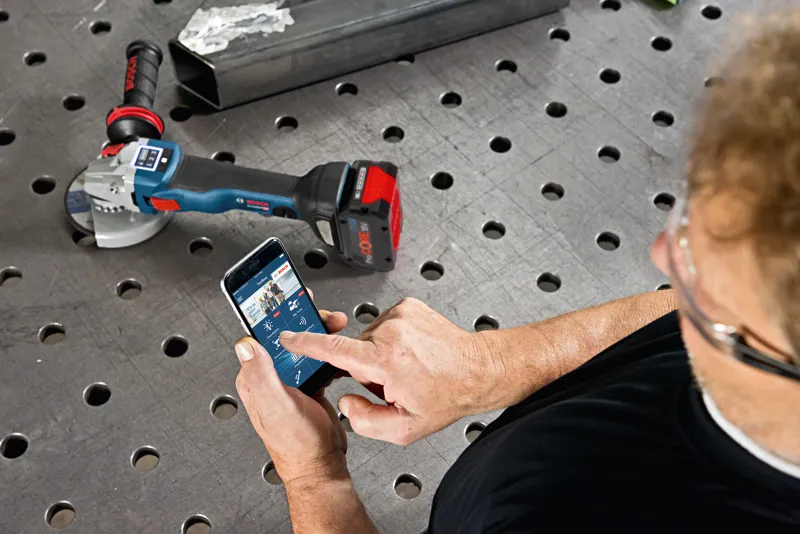

  • Bluetooth module for setting adjustments via Toolbox app; user interface for active tool feedback and speed selection

Functions

Icon
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Longer motor life - more runtime - more power thanks to brushless motor
Disc diameter 125 mm
Icon
Grinding spindle thread M 14
No self-discharge, no memory effect and a higher energy density thanks to Li-Ion battery technology
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Enhanced user protection thanks to the Drop Control function the tool switches off when dropped accidentally
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Outstanding user protection thanks to the anti-rotation protective guard - stands firm, even if the disc breaks
Easy disc / tool change thanks to spindle lock
Battery 100 percent compatible with all tools within its voltage class Choose the XL battery for longest runtime or the compact battery for best handling
No additional tools are required for configuring the tool, allowing for user-friendly operation

Prices / Package contents

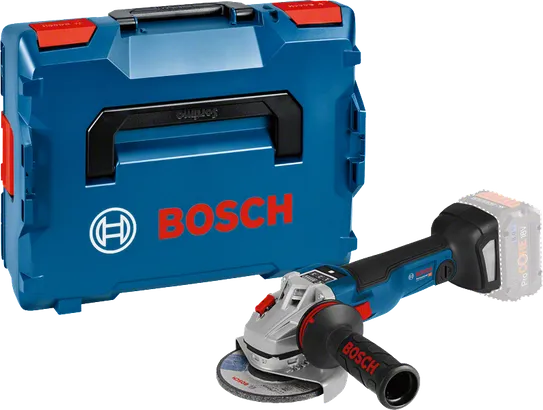

in L-BOXX with flange

Order number: 0 601 9G3 40B

Selected version

Price includes:

  • Backing flange (spare part number 2 605 703 014)
  • 1/1 L-BOXX inlay for tool and charger 1 600 A01 166
  • L-BOXX 136 1 600 A00 1RR
  • Protective guard 1 605 510 365
  • Vibration Control auxiliary handle 2 602 025 171
  • 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
  • Quick-locking nut 2 608 000 684

* Battery and charger not included
