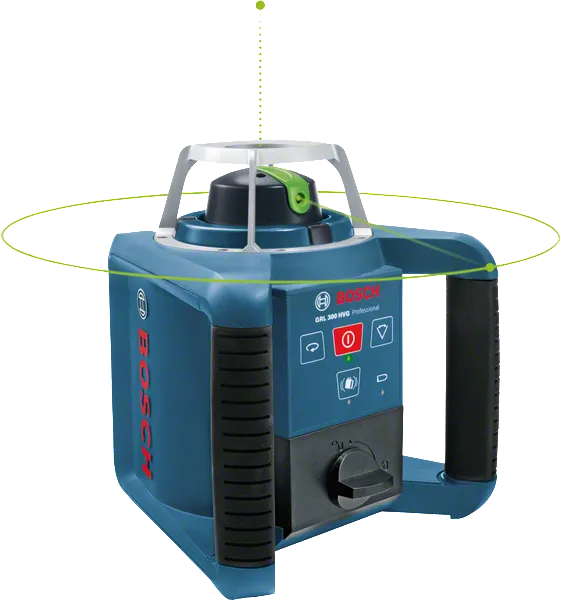

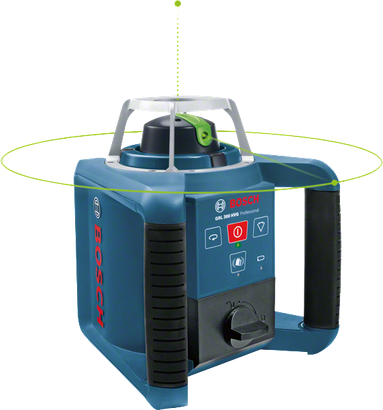

GRL 300 HVG Set Professional
Rotation Laser
Order number 0.601.061.703
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
with 2 x battery (LR20), receiver
0 601 061 703
GRL 300 HVG Set Professional
Your Selection
with 2 x battery (LR20), receiver
Order number: 0 601 061 703

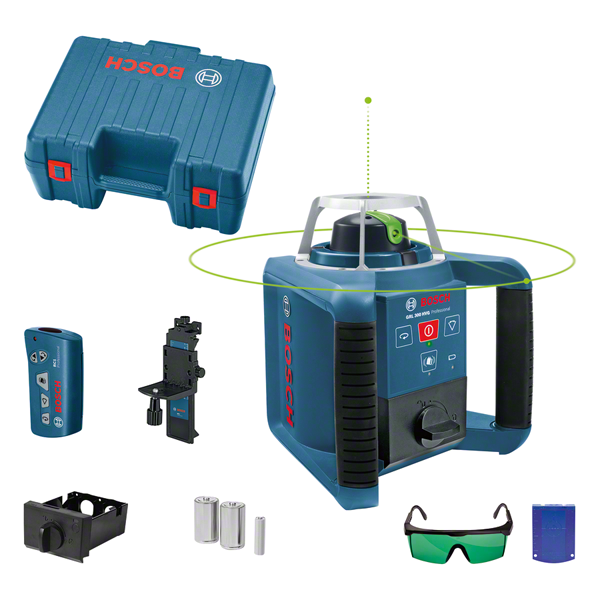

Buy nowIncluded in this variant
-
BracketOrder number: 1 608 M00 05A
-

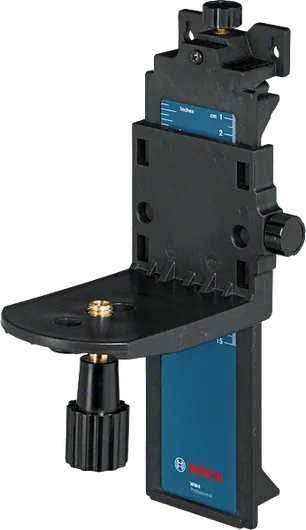

Universal mount WM 4 ProfessionalOrder number: 0 601 092 400
-
Laser target (blue) (spare part number 1 608 M00 05K)
-
1 x 1.5 V LR6 battery (AA)
-
Remote control RC1 ProfessionalOrder number: 0 601 069 900
-
2 x 1.5 V LR20 battery (D)
-
Laser receiver LR 1G ProfessionalOrder number: 0 601 069 700
-
Laser viewing glasses (green) (spare part number 1 608 M00 05J)
-
1 x 9 V block battery (6LR61)
Technical data
The most important data
Laser diode
532 nm, < 5 mW
Operating temperature
0 – 40 °C
Storage temperature
-20 – 70 °C
Laser class
3R
Working range, value
100 m
Working range with receiver*
300 m (diameter)
Working range without receiver*
100 m (diameter)
Accuracy*
± 3.0 mm at 30m
Self-levelling range
± 5° (8%)
Levelling time
15 s
Dust and splash protection
IP 54
Rotation speed
150/300/600 min-¹
Power supply
2 x 1.5 V LR20 (D)
Weight, approx.*
1.8 kg
Colour of laser line
green
Compatible laser receivers
LR 1G
* You can find more information about the deviations in the following link:
