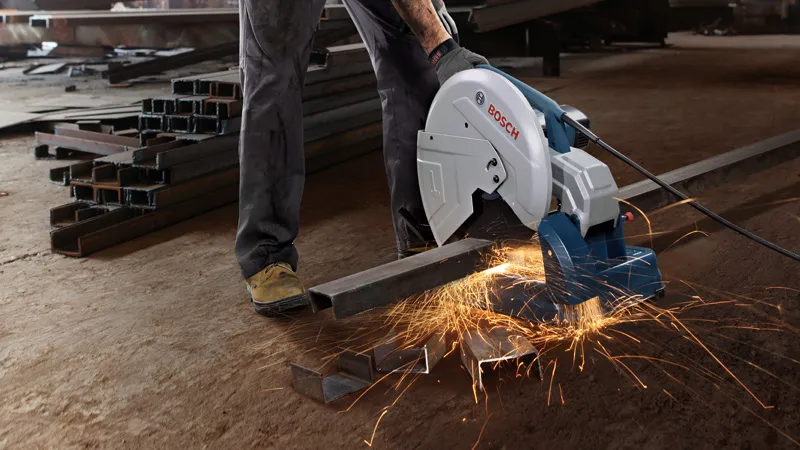

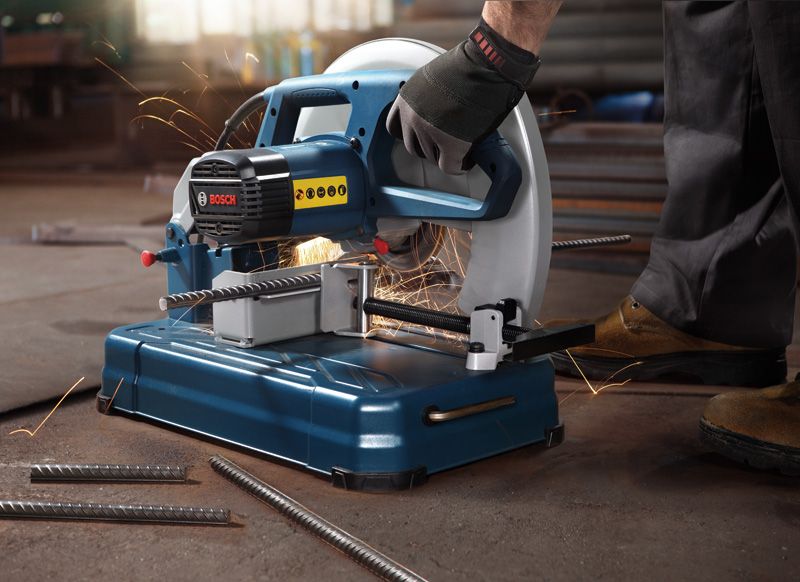

Metal Cut-off Saw
GCO 2400 J Professional

with Cutting disc

Redefining power in 355-mm cut-off saws for the toughest applications

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Cutting capacity at rectangle 0º 100 x 196 mm
Cutting capacity at square 0º 119 x 119 mm
Cutting capacity at L-profile 0º 130 x 130 mm
Cutting capacity at rectangle 45º mitre 107 x 115 mm
Cutting capacity at square 45º mitre 110 x 110 mm
Cutting capacity at L-profile 45º mitre 115 x 115 mm
Tool dimensions (width x length x height) 256 x 520 x 400 mm
No-load speed 3,800 rpm
Cutting disc diameter 355 mm
Cutting disc bore 25.4 mm
Weight 18.1 kg
Rated input power 2,400 W
Packaging dimensions (width x length x height) 325 x 555 x 445 mm
Noise/vibration information
Sound pressure level 100.5 dB(A)
Sound power level 113 dB(A)
Uncertainty K 3 dB

Advantages

Redefining power in 355-mm cut-off saws for the toughest applications

  • Powerful and robust with high overload capacity even for demanding jobs
  • Patented clamping system ensures increased disc utilisation by 20%
  • Large base with rubber feet ensures stability on slightly uneven surfaces

Functions

Easy disc / tool change thanks to spindle lock
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
High durability of footplate thanks to metal base
Ergonomic handling thanks to low weight and compact design
Rated power input 2400 W
Metalworking The professional power tools for metalworking from Bosch.

Prices / Package contents

with Cutting disc

Order number: 0 601 B37 240

Selected version

Price includes:

  • Carton box
  • Cutting disc
