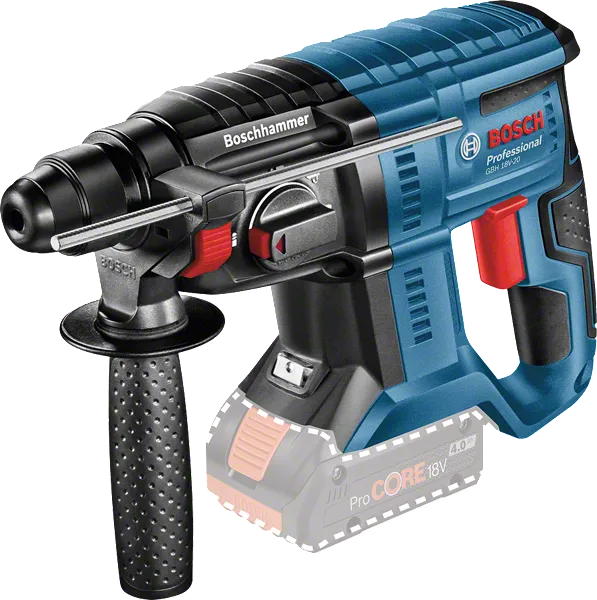

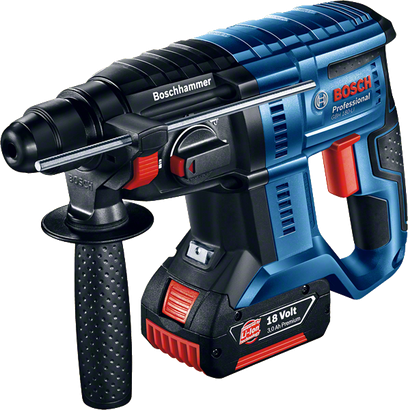

Cordless Rotary Hammer with SDS plus
GBH 18V-20 Professional

in cardboard box

Rotary hammer for standard applications in the SDS plus cordless category

Print

Our service promise for professionals.
Extend the warranty of your power tools.
Register now!
More

Technical data

The most important data

Max. impact energy 1.7 J
Impact rate at rated speed 0 – 4,550 bpm
Rated speed 0 – 1,800 rpm
Battery voltage 18 V
Packaging dimensions (width x length x height) 231 x 366 x 119 mm
Drilling range
Drilling dia. in concrete with hammer drill bits 4 – 20 mm
Opt. app. range in concrete with hammer drill bits 6 – 10 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Sound pressure level 93 dB(A)
Sound power level 104 dB(A)
Uncertainty K 3 dB
Hammer drilling in concrete
Vibration emission value ah 12.6 m/s²
Drilling in metal
Vibration emission value ah 2.5 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²

Advantages

Rotary hammer for standard applications in the SDS plus cordless category

  • Delivers 1.7 J of impact energy for optimised performance in standard applications
  • Durable and easy to maintain due to robust components and replaceable carbon brushes

Functions

Easy and precise control of the RPM thanks to variable speed
Forward / reverse rotation for inserting and removing screws
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Construction The professional power tools for construction from Bosch.

Prices / Package contents


in cardboard box

Order number: 0 611 911 000

Selected version

Price includes:

  • Cardboard box

* Battery and charger not included
