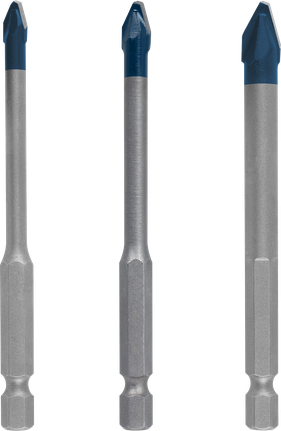

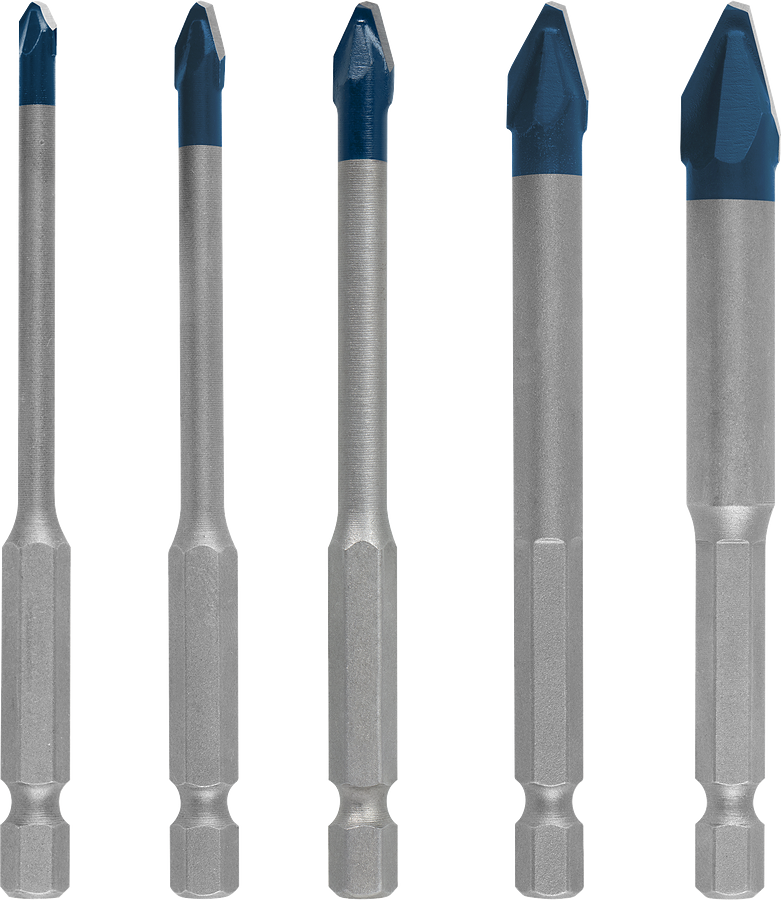

Bosch EXPERT HEX-9 HardCeramic Drill Bit Set, 5 pcs.

Bosch HEX-9 HardCeramic drill bit set 5 pcs

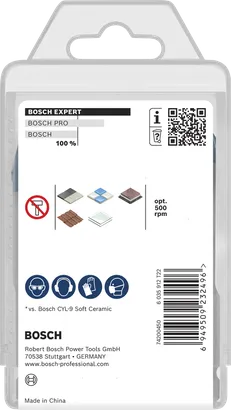

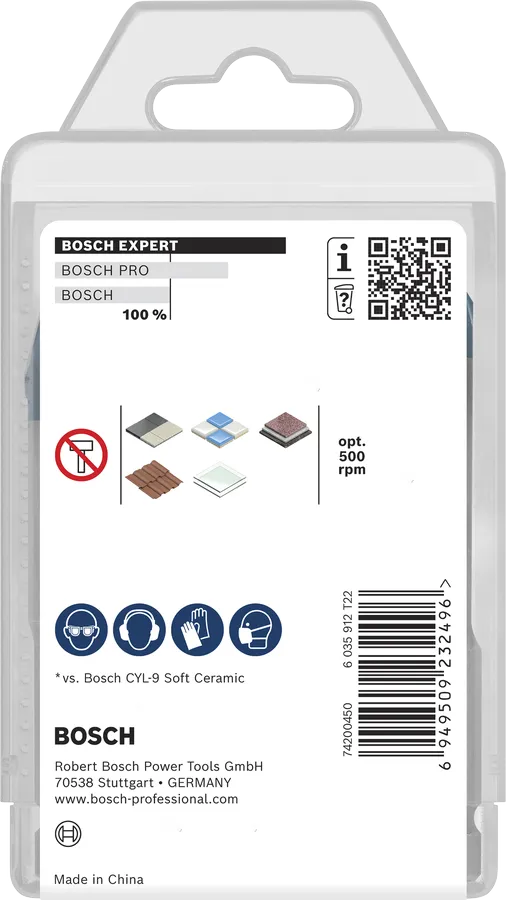

Bosch EXPERT HEX-9 HardCeramic drill bit set packaging.

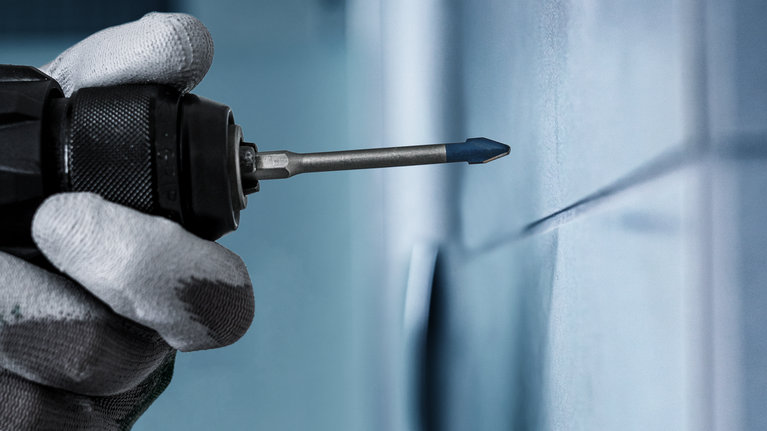

Gloved hand using a power drill to drive a bit into a tiled wall.

Worker wearing safety equipment drills into a tiled wall.

Person wearing safety equipment uses a cordless drill to drive a screw into a wall.

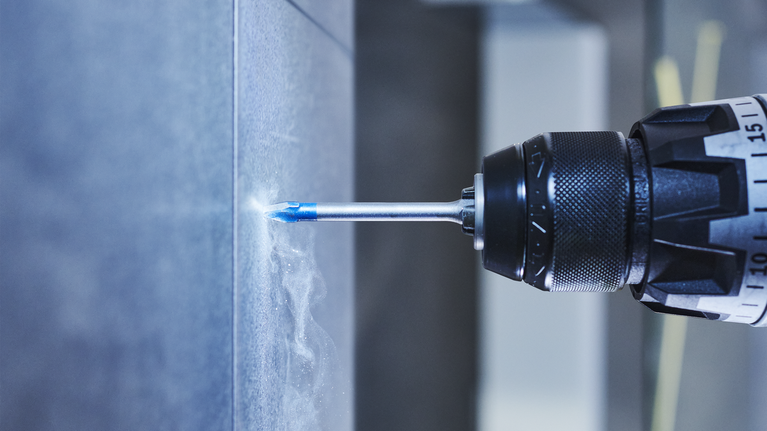

Drill making a hole in a tiled wall, producing dust.

EXPERT HEX-9 Hard Ceramic Drill Bit Set

For impact drill/drivers, For rotary drills/drivers, For impact screwdrivers

Lasts up to 10x longer than a Bosch CYL-9 Soft Ceramic Drill Bit

Test results

Long Life drilling hard tiles
Exceptionally durable drill bit tip with Bosch Carbide Technology
Start holes accurately with a specially designed centring tip

Materials

5 options

Available product options (5)

Your Selected Variant

EXPERT HEX-9 Hard Ceramic Drill Bit Set

Long Life drilling hard tiles

Bosch Expert MultiConstruction drill bit, carbide tip.

1

Exceptionally durable drill bit tip with Bosch Carbide Technology
2

Start holes accurately with a specially designed centring tip
3

High-performance carbide tip manufactured by fine grinding
4

Efficient drilling in hard materials with a multi-faceted design

The New Way of Drilling Tiles

EXPERT HEX-9 Hard Ceramic Drill Bit for Long Life Drilling Hard Tiles

As wall tiles have become larger and harder, drilling holes in them has become very demanding on a tile drill bit. That’s why Bosch has developed the EXPERT Hard Ceramic Drill Bit, which is capable of dry-drilling hard ceramics and lasts far longer than our benchmark drill bit for tiles.

Product Options

Available product options: 5

Part number	Diameter mm	Total length mm	Working length mm	Pack quantity	Availability

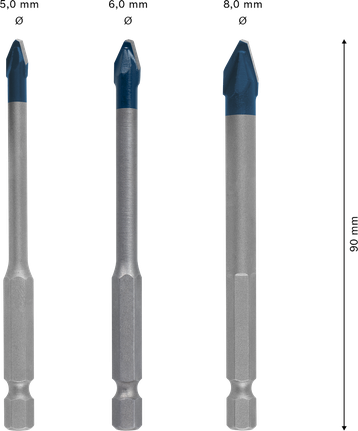

2 608 900 595	5.0; 6.0; 8.0	90	-	3 Pcs	Buy now

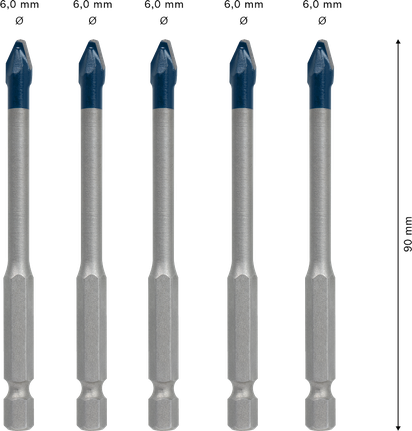

2 608 900 596	6.0; 6.0; 6.0; 6.0; 6.0	90; 90; 90; 100; 100	-; -; -; 60; 60	5 Pcs	Buy now

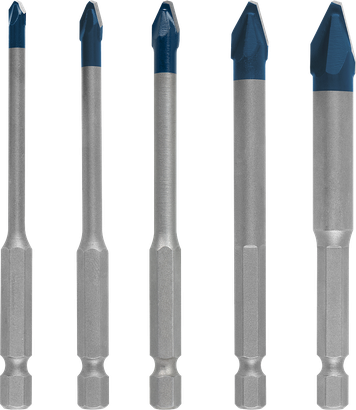

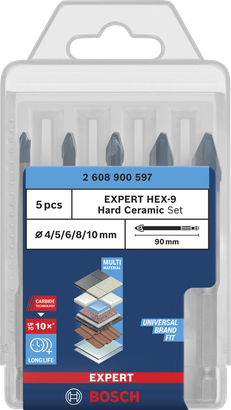

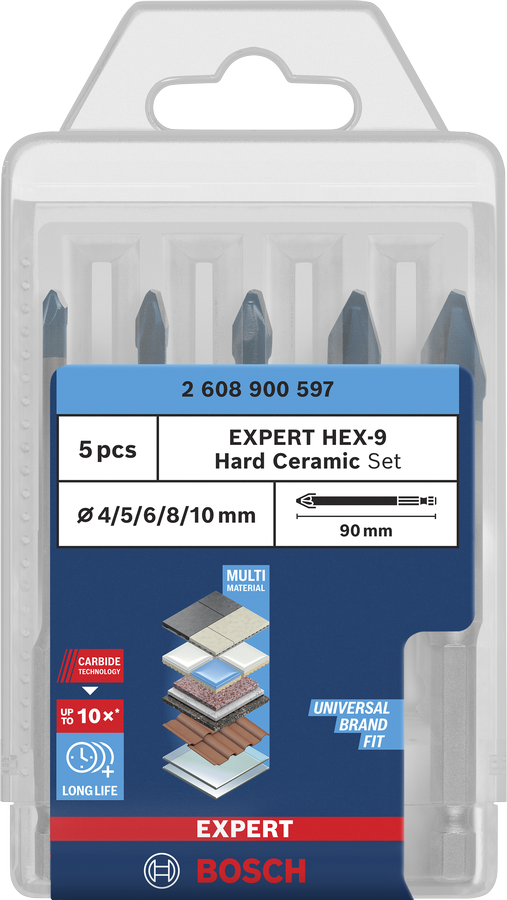

2 608 900 597	4.0; 5.0; 6.0; 8.0; 10.0	90	-	5 Pcs	Buy now

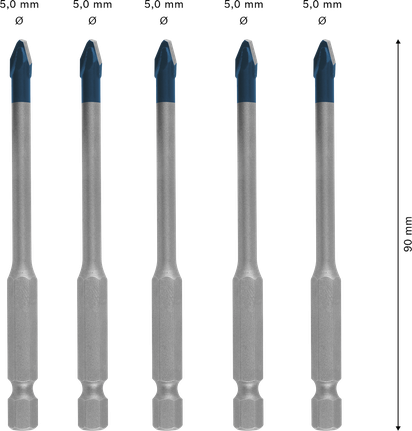

2 608 900 598	5.0; 5.0; 5.0; 5.0; 5.0	90	-	5 Pcs	Buy now

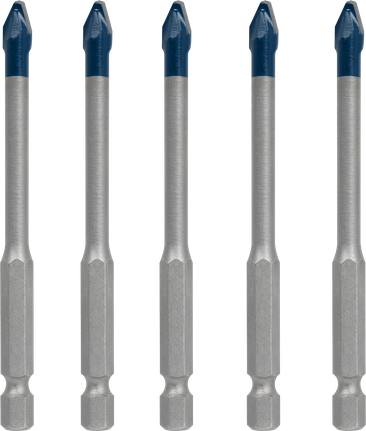

2 608 900 599	6.0; 6.0; 6.0; 6.0; 6.0	90	-	5 Pcs	Buy now

out of products

Downloads

Product information brochure

Product information brochure | EXPERT HEX-9 Hard Ceramic Drill Bit Set (PDF)

Frequently asked questions

Material

Tile thickness limit

This drill bit is designed for drilling into ceramic tiles up to 10 mm thick. It’s not suitable for drilling into blocks.

How many holes can I drill with carbide-tipped drill bits for ceramic?

It depends on several parameters, e.g the drill bit’s diameter, the pressure applied, rpm, drilling direction and thickness and hardness of your tile. With 6 mm-diameter CYL-9 Soft Ceramic drill bit, you can get 50+ holes in soft ceramic tiles. With EXPERT HEX-9 Hard Ceramic drill bit, you can drill 10+ holes in hard ceramic tiles*, and 100+ holes in soft ceramic tiles.

Bosch Expert HEX-9 drills 100+ holes in ceramic tile.

Is the tile soft or hard?

The tile’s size and price are good indicators. Tiles which are 30x30 cm large and larger are normally hard. The Mohs scale and PEI rating is often used to indicate the material’s hardness, with PEI ranging from 1 for low wear resistance to 5 for high wear resistance. Hard ceramic tiles normally cost more than the soft ones.

Bosch tile selection guide soft or hard tile size.

Technique

What speed and gear to use?

Set your power tool to gear 1. If you use a corded power tool push the trigger halfway to keep the speed below 500 rpm. If you work with a power tool without gears, keep the speed below 500 rpm, using the trigger.

Bosch drill on gear 1, optimal speed 500 rpm.

Which drilling mode to use?

Always set your power tool to the rotary mode only. Never apply the impact mode not to damage your drill bit and tiles.

Bosch select drilling mode, not hammer mode.

Pressure

Apply sufficient, but not excessive pressure (15-20 kg is recommended) until you hear that material is being removed. This means the pressure is fine and you can carry on. Cooling is not required.

Wobbling motion

Wobble your power tool slightly when you drill in hard ceramic tiles.

Drilling into materials behind ceramic tile

Once you’ve drilled through the tile, switch to a concrete drill bit (to drill concrete or brick behind the tile). Change to ‘impact mode’, and gear 2 before starting to drill with the concrete drill bit.
